Quality Solar Equipments

Description:

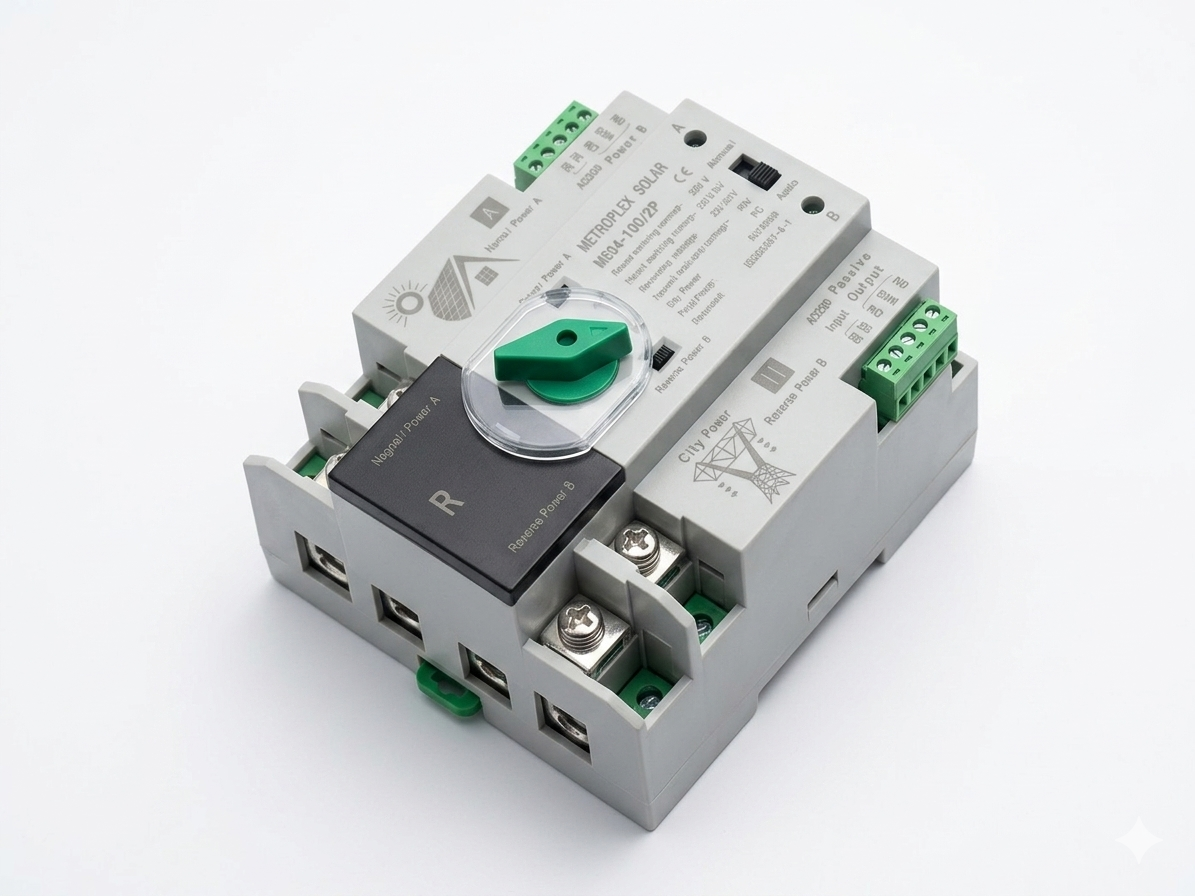

• Model: MSQ4-100/2P GF
• Amperage: 63A
• Quantity: 1PCS

Description:

• Model: MSQ4-100/2P GF
• Amperage: 100A
• Quantity: 1PCS

Description:

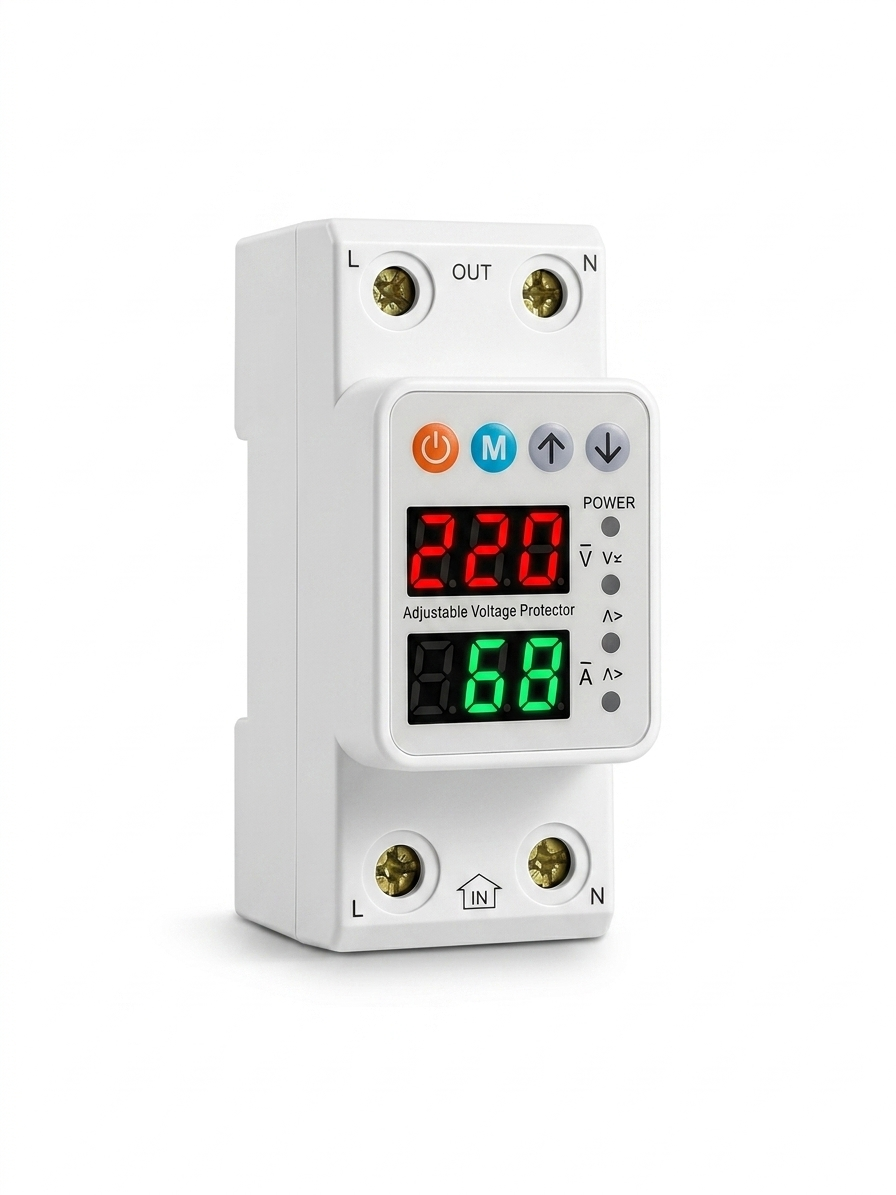

• Function: Provides protection against over-voltage, under-voltage, and over-current.
• Rated Supply Voltage: AC220V (L-N).
• Rated Supply Frequency: 50/60Hz.
• Rated Operational Current: Available in 40A or 63A.
• Over-voltage Operation Value: Adjustable from 230V to 300V (factory default is 275V).
• Under-voltage Operation Value: Adjustable from 140V to 210V (factory default is 175V).
• Over-current Operation Value: Adjustable from 1A to 63A (factory default is 63A).
• Action Delay: 1–400s for over/under voltage and 1–30s for over-current.
• Mounting: Standard Din rail EN/IEC 60715.
• Dimensions: 82 x 36 x 68mm.

Description:

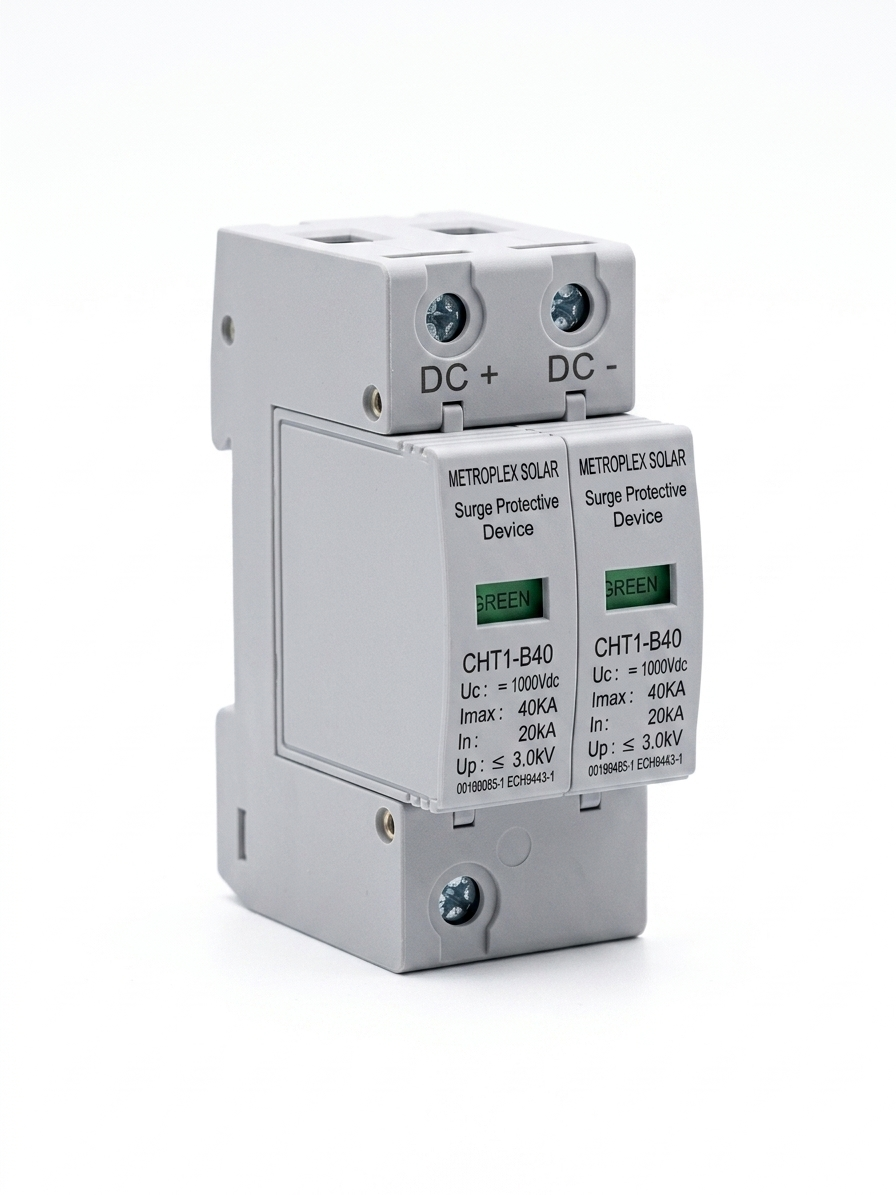

• Model: CHT1-B40
• Max Continuous Operating Voltage (Uc): 1000Vdc
• Maximum Discharge Current (Imax): 40kA
• Nominal Discharge Current (In): 20kA
• Voltage Protection Level (Up): <= 3.0kV
• Standards: GB18802.1 / IEC61643-1

Description:

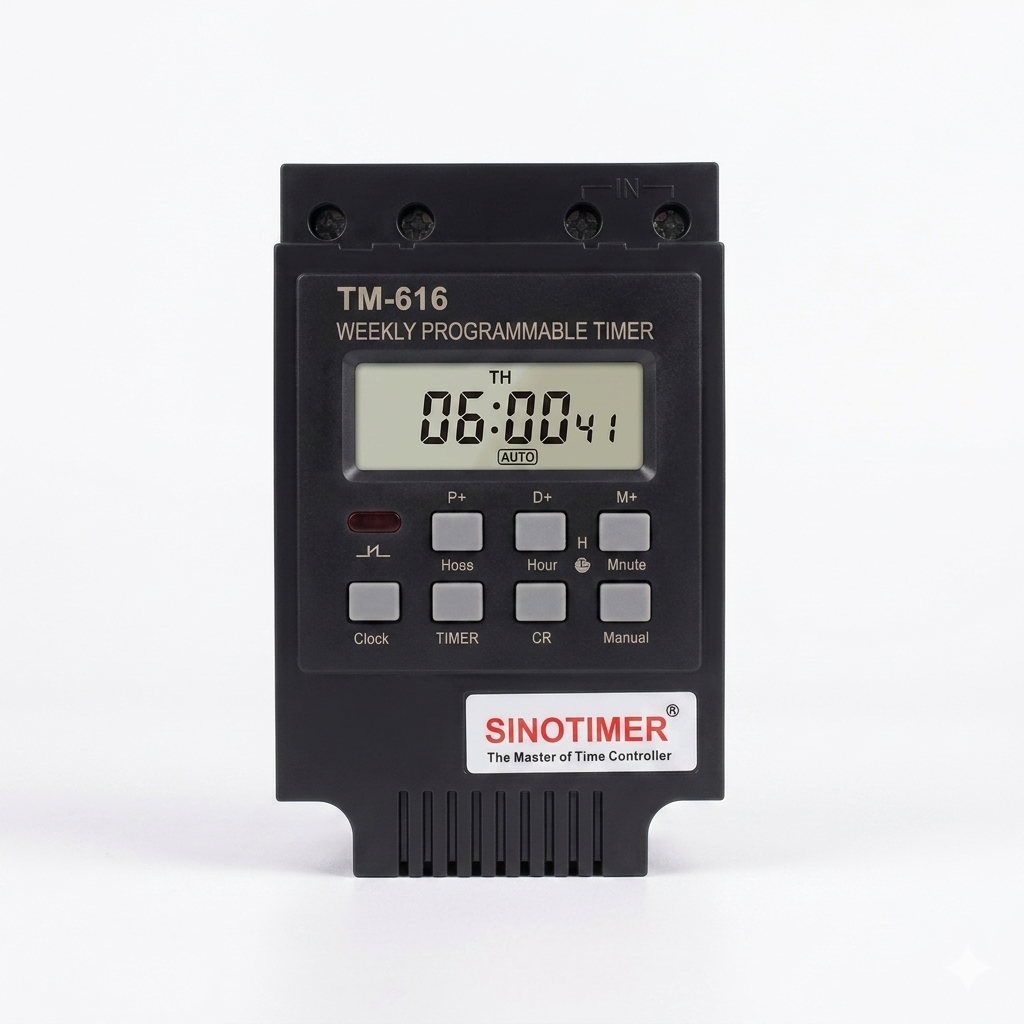

• Product Model: TM-616 Timer Switch
• Working Voltage: 220Vac
• Output Control: 30A
• Compliance Standard: IEC 60730-2-7

Description:

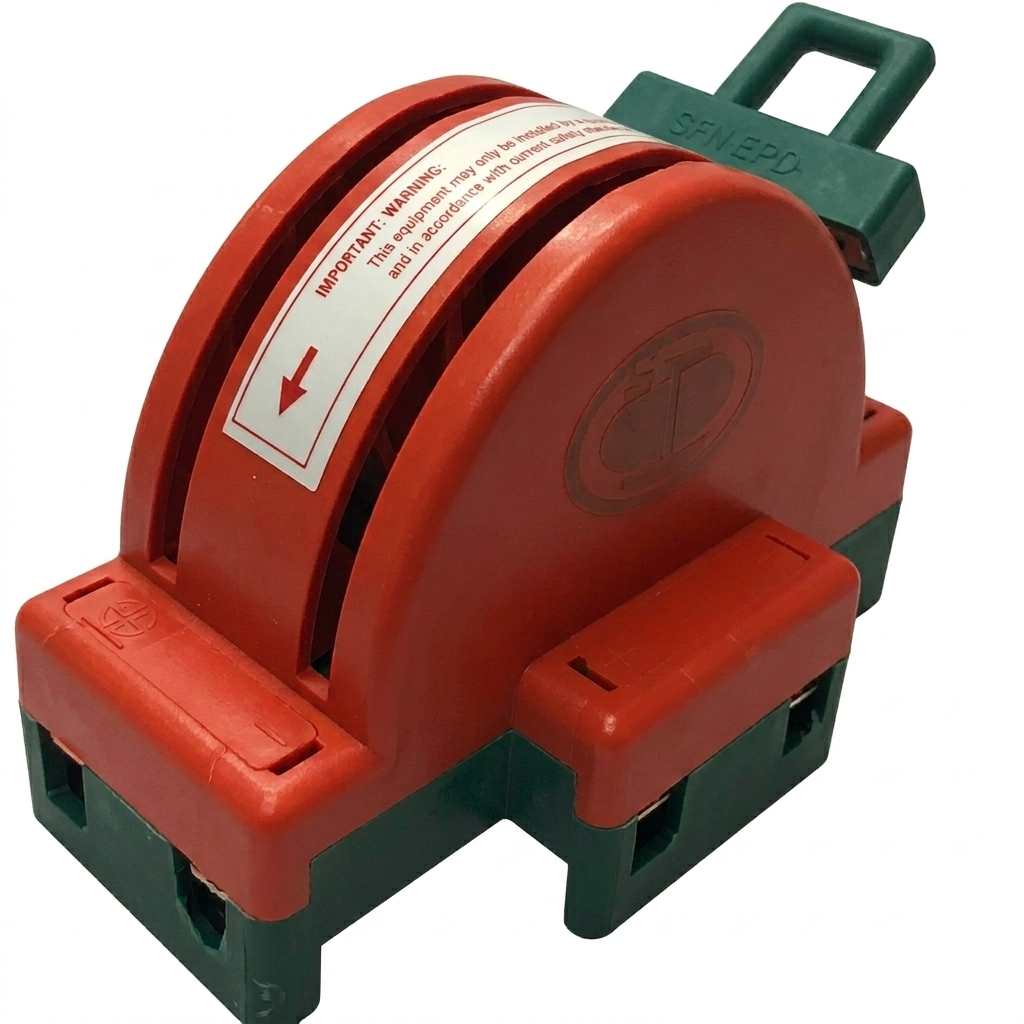

• Rated Current (In): 63A.
• Rated Voltage (Un): Typically 230V/240V AC for single-phase systems.
• Switch Type: Manual Double Throw (DPDT for single-phase).
• Poles: Usually 2-Pole (Neutral and Live) to ensure complete isolation.
• Mounting: Standard 35mm DIN rail compatible for installation in distribution boards.
• Frequency: 50Hz / 60Hz.
• Durability: High heat-resistant plastic housing (red and green/black).

Description:

• Rated Current (In): 100A
• Rated Voltage (Un): 230V/240V AC (Single Phase) or 400V/415V AC (Three Phase)
• Switching Type: Manual Double Throw (I-0-II) with a center-off position
• Pole Configuration: 2-Pole or 4-Pole
• Mounting: Standard 35mm DIN rail
• Frequency: 50Hz / 60Hz
• Terminal Capacity: Supports wiring up to 35mm2 or 50mm2
• Material: Flame-retardant ABS/Polycarbonate housing

Description:

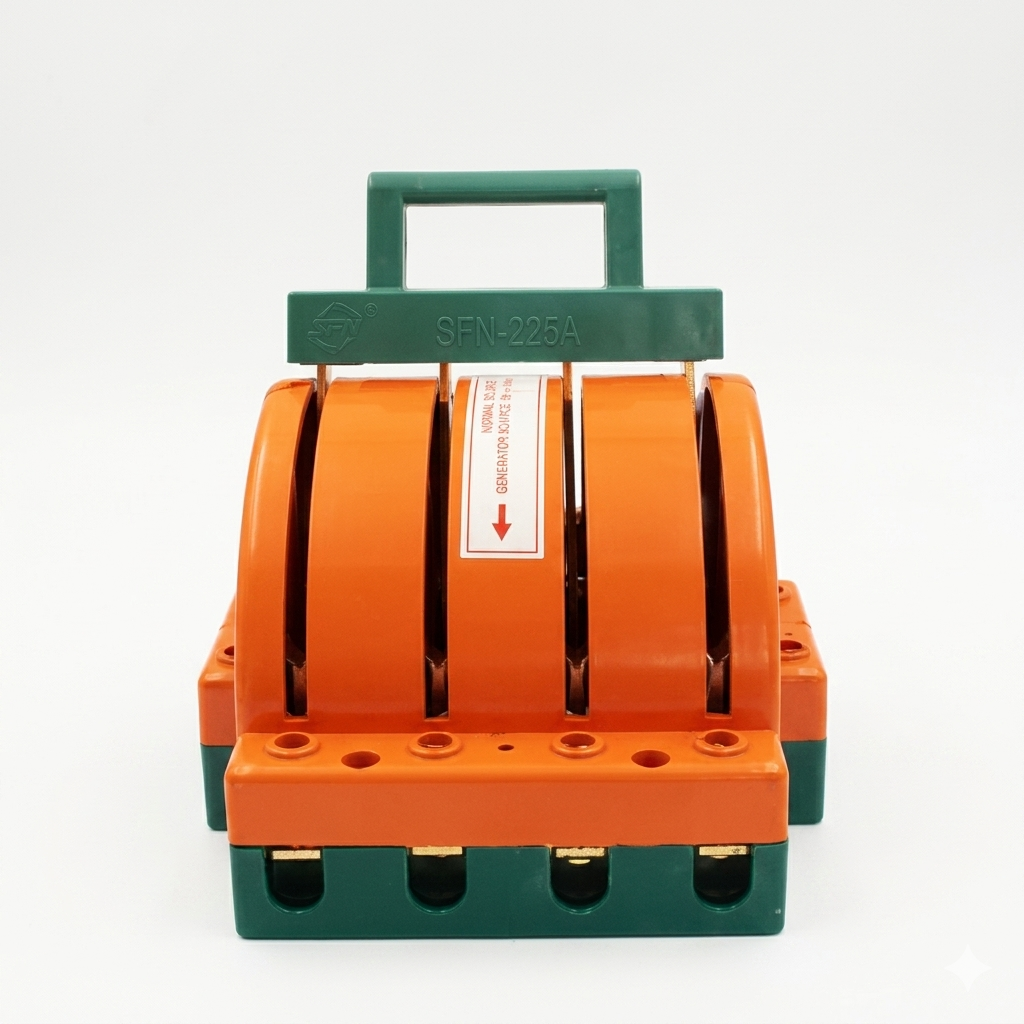

• Rated Current (In): 225A
• Rated Voltage (Un): 230V/240V AC (Single Phase) or 400V/415V AC (Three Phase)
• Switching Type: Manual Double Throw (I-0-II) with a reinforced center-off position
• Pole Configuration: 2-Pole or 4-Pole models
• Mounting: Heavy-duty DIN rail mount or base-plate mounting
• Frequency: 50Hz / 60Hz
• Terminal Capacity: Supports high-gauge power cables or copper busbars (typically up to 95mm2 or 120mm2 wiring)
• Material: High-performance, flame-retardant, and heat-resistant housing

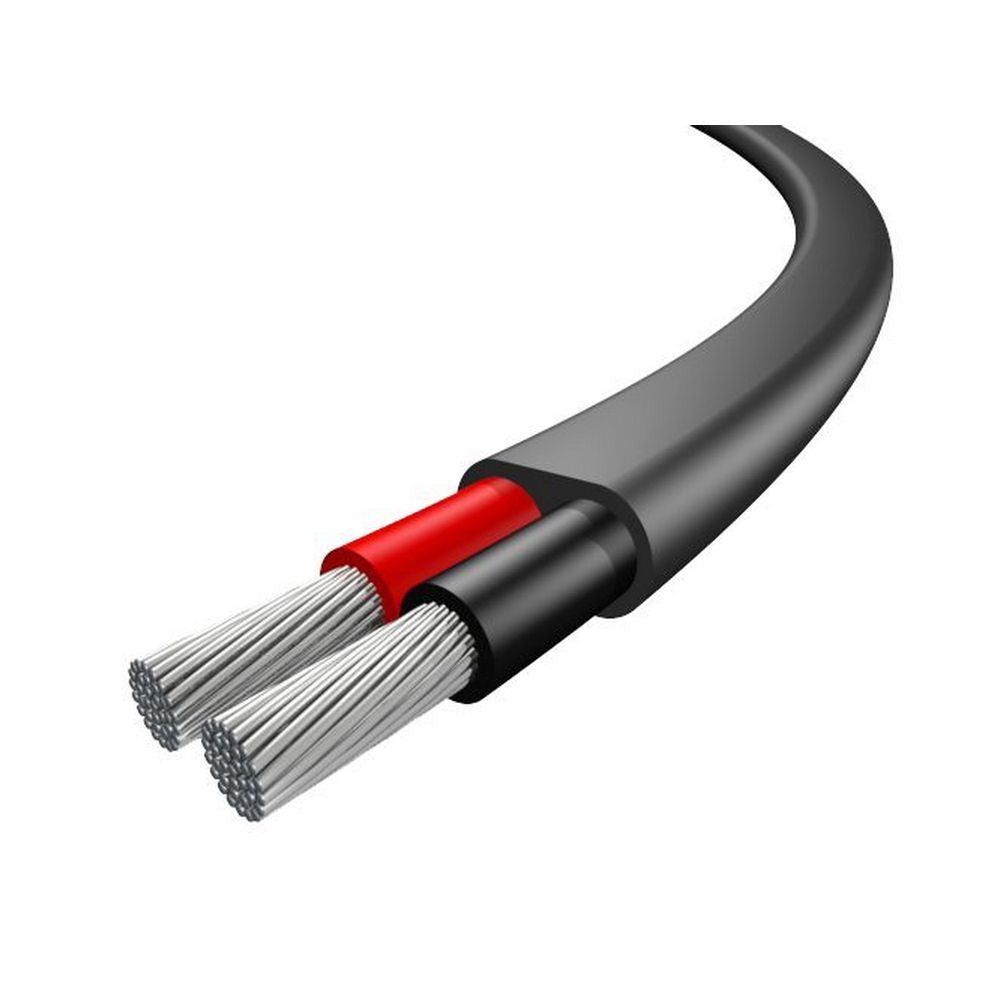

Description:

• Conductor: Tinned copper for high conductivity and corrosion resistance.
• Insulation: Dual-layer XLPO (Cross-linked Polyolefin), halogen-free and flame-retardant.
• Voltage: Rated for 600V, 1000V, or 1500V DC.
• Temperature: Functional from -40°C to +90°C.
• Protection: UV-stabilized and weather-resistant for outdoor use.
• Common Sizes: 4mm2, 6mm2, and 10mm2.
• Standards: Meets EN 50618 or UL 4703 requirements.

Description:

• Model: CHT1-B40
• Max Continuous Operating Voltage (Uc): 1000Vdc
• Maximum Discharge Current (Imax): 40kA
• Nominal Discharge Current (In): 20kA
• Voltage Protection Level (Up): <= 3.0kV
• Standards: GB18802.1 / IEC61643-1

Description:

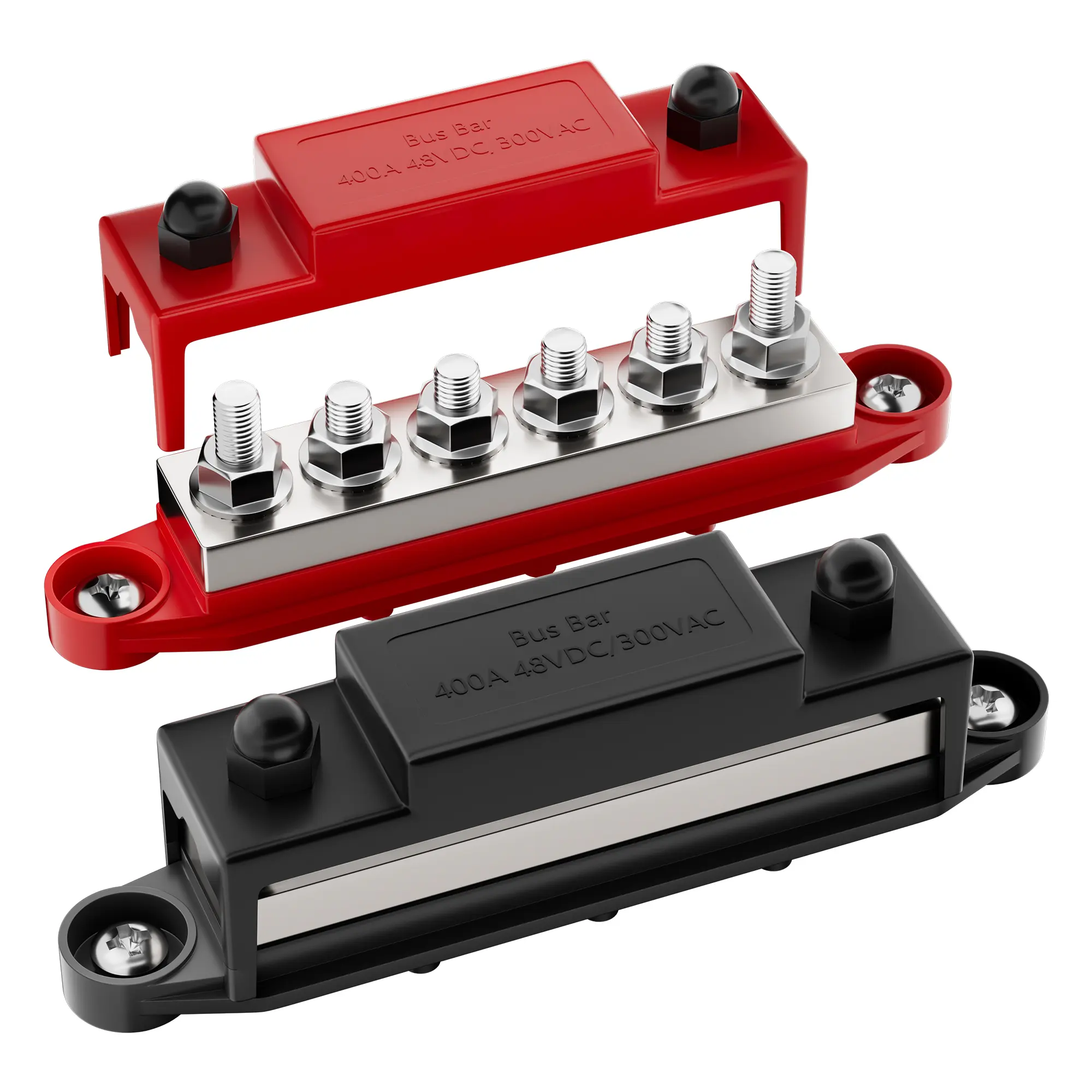

• Rated Current: 400A.
• Material: High-purity electrolytic copper or electrical-grade aluminum.
• Conductivity: Typically greater than or equal to 98% IACS for copper.
• Voltage: Rated for 600V to 1000V AC or DC.
• Surface: Tin-plated or nickel-plated to prevent oxidation.
• Temperature: Rated for continuous operation up to 90 degrees Celsius or 105 degrees Celsius.
• Mounting: Installed on insulated standoffs in electrical enclosures.

Description:

• Current: 600A.
• Material: High-purity copper or electrical-grade aluminum.
• Conductivity: Greater than or equal to 98% IACS for copper.
• Voltage: 600V to 1000V AC or DC.
• Surface: Tin or silver-plated to prevent oxidation.
• Temperature: Continuous operation up to 90 or 105 degrees Celsius.
• Sizing: Increased cross-section (e.g., 50mm x 10mm) for heat management.
• Mounting: Secured via heavy-duty insulated standoffs.
