Quality Off Grid Inverters

Description:

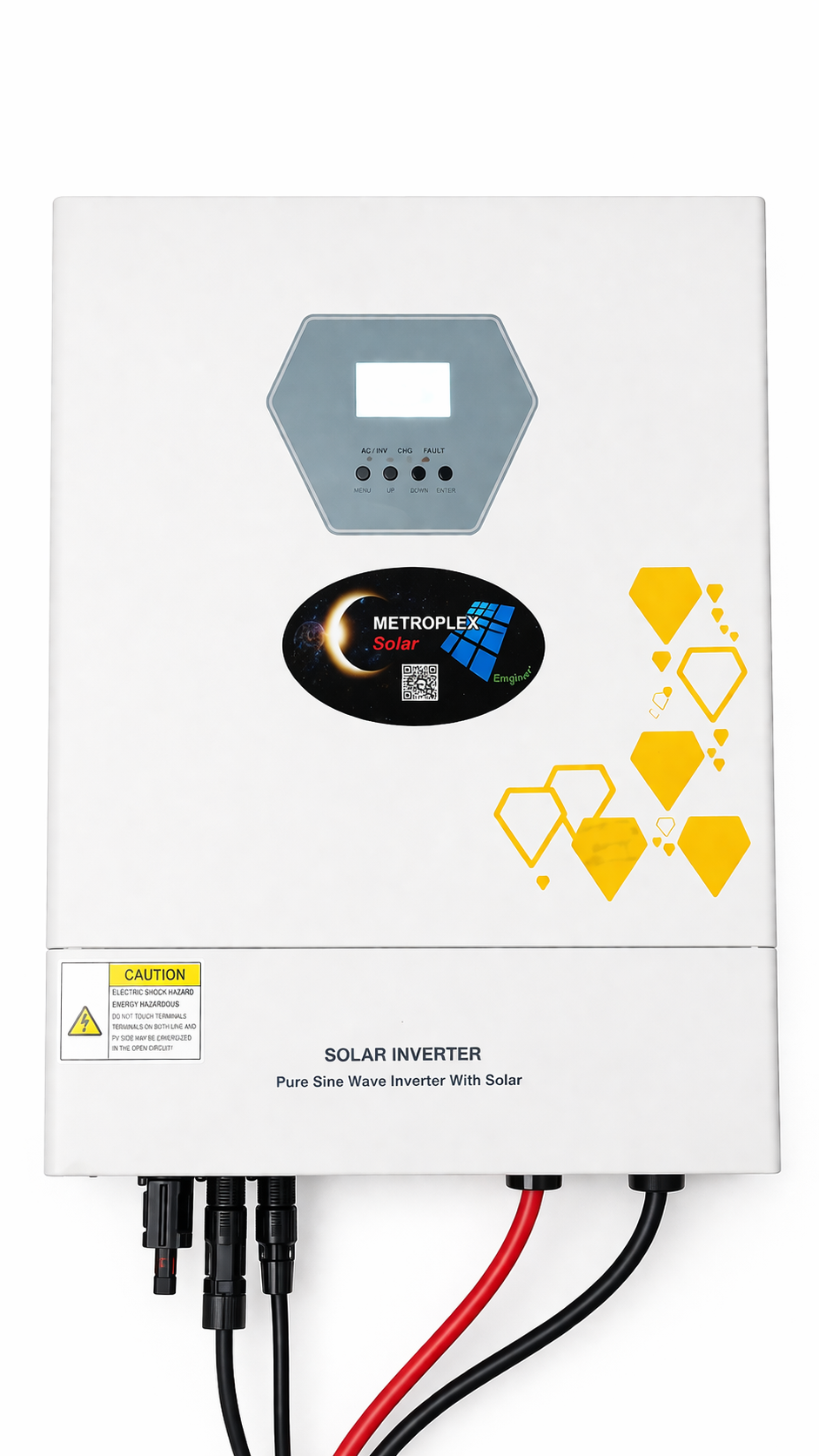

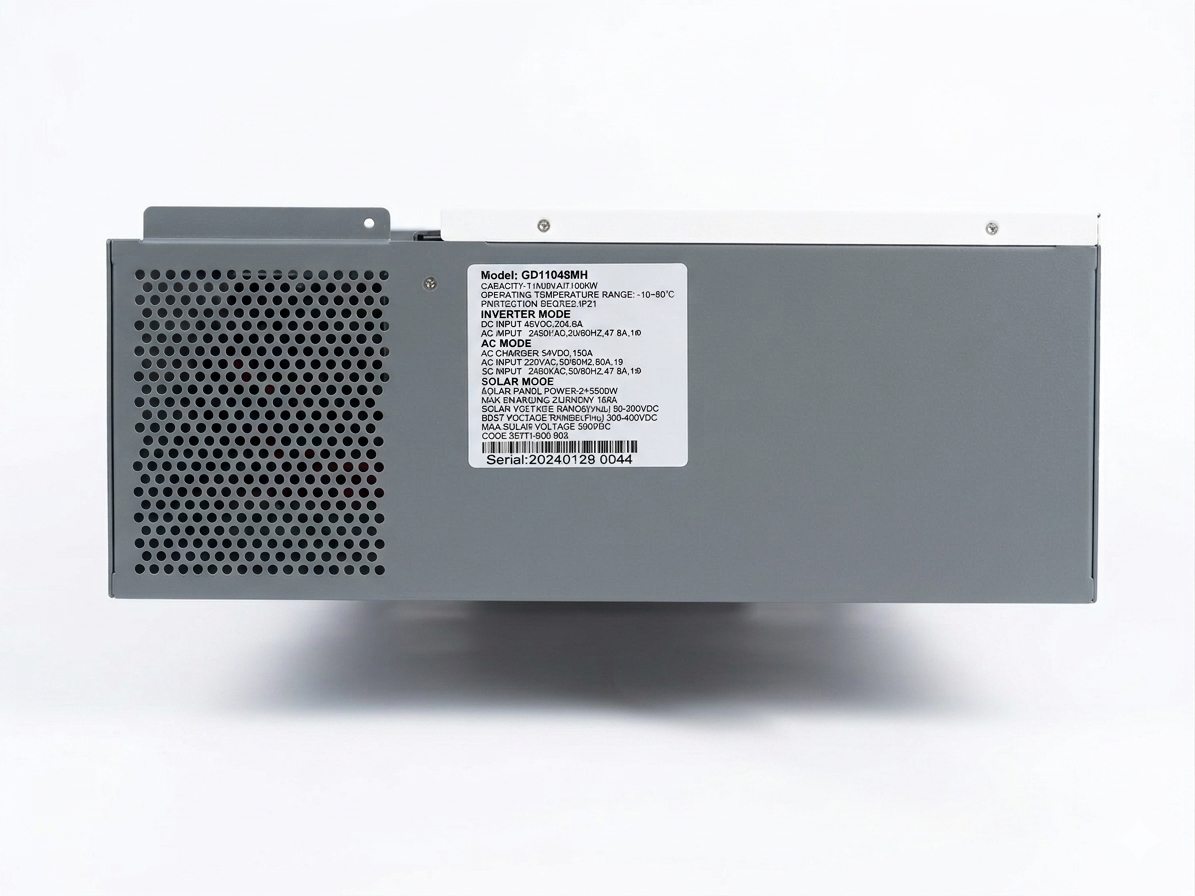

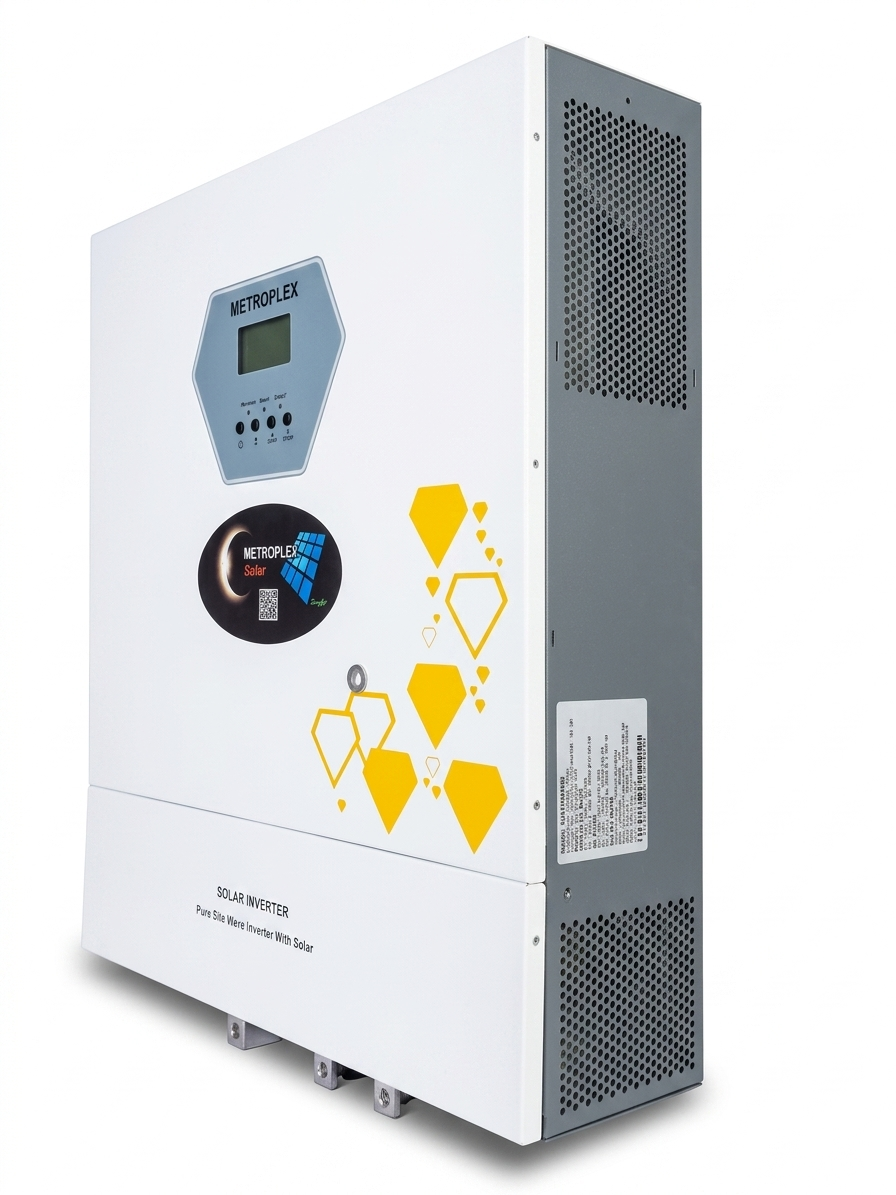

• MODEL: GD11048MHB
• CAPACITY: 11000VA/11000W
• OPERATING TEMPERATURE RANGE: -10-50°
• PROTECTION DEGREE: IP21
• DC INPUT: 48VDC, 254,6A
• AC OUTPUT: 230VAC, 50/60HZ, 47.8A 1?
• AC CHARGER: 54VDC, 150A
• AC INPUT: 230VAC, 50/60HZ, 60A, 1?
• AC OUTPUT: 230VAC, 50/60HZ, 47.8A,1?
• SOLAR PANEL POWER: 2X5500W
• MAX. CHARGING CURRENT: 150A
• SOLAR VOLTAGE RANGE(Vmp): 90-500VDC
• BEST VOLTAGE RANGE(Vmp): 300-400VDC
• MAX SOLAR VOLTAGE: 500VDC
• CODE: 95111-000-005
• N.W: 19.31KG
• G.W: 22.60KG
• SIZE: 708*570*241MM

Description:

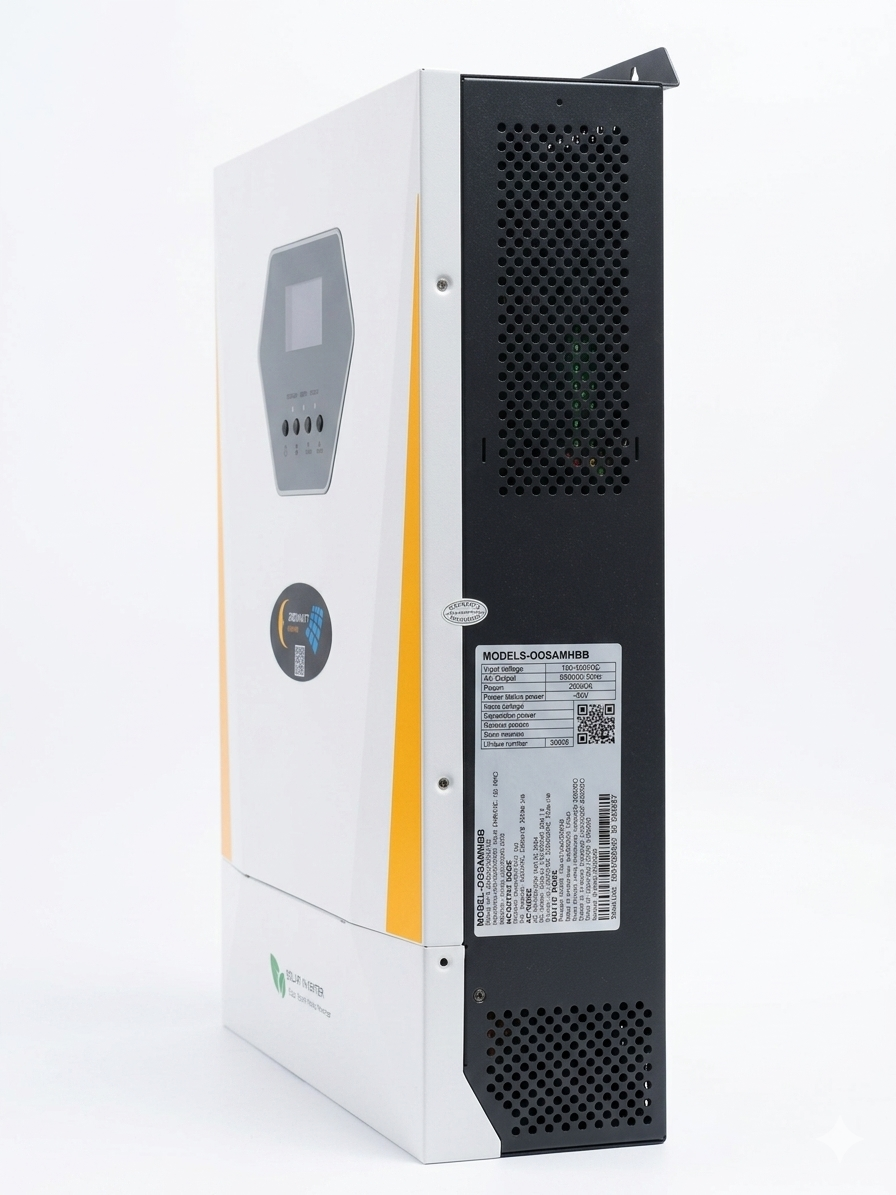

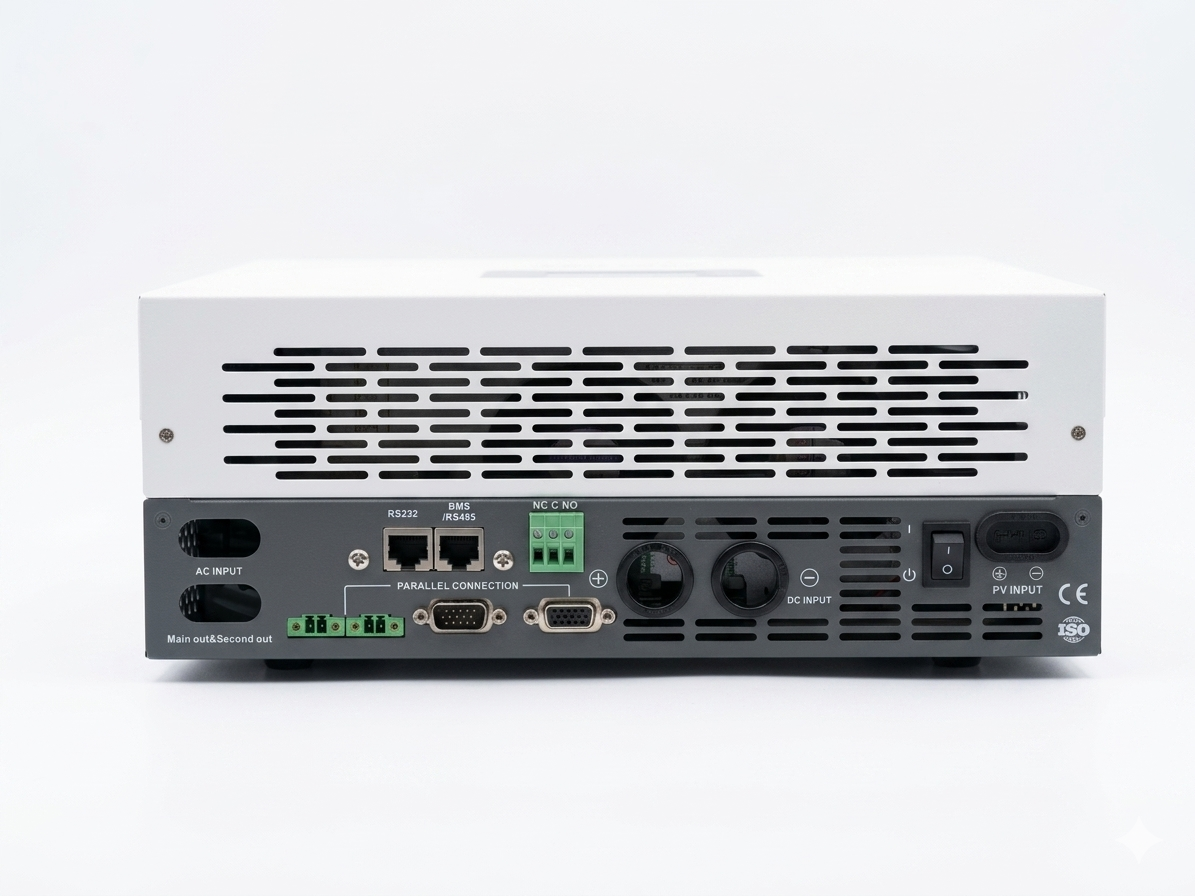

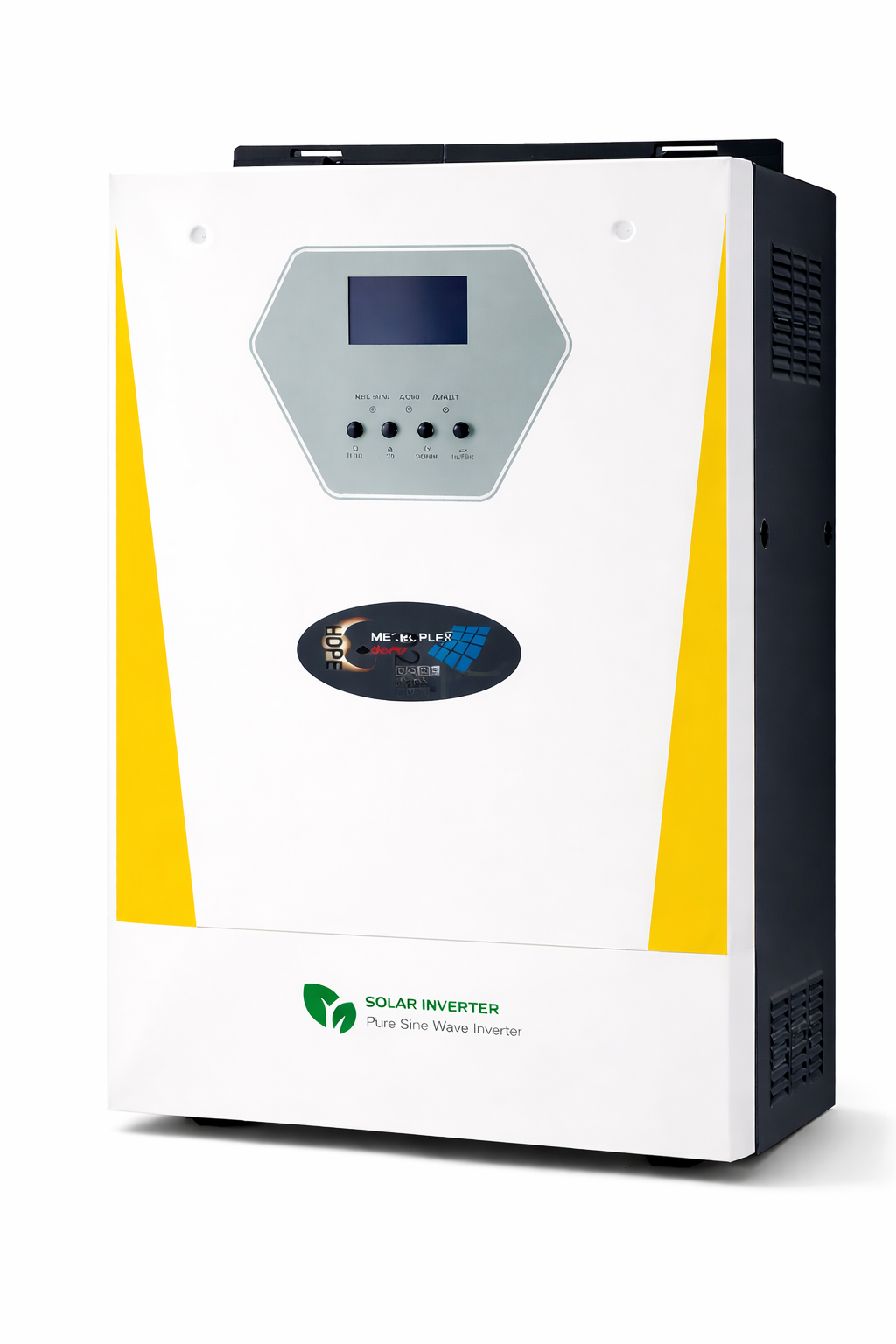

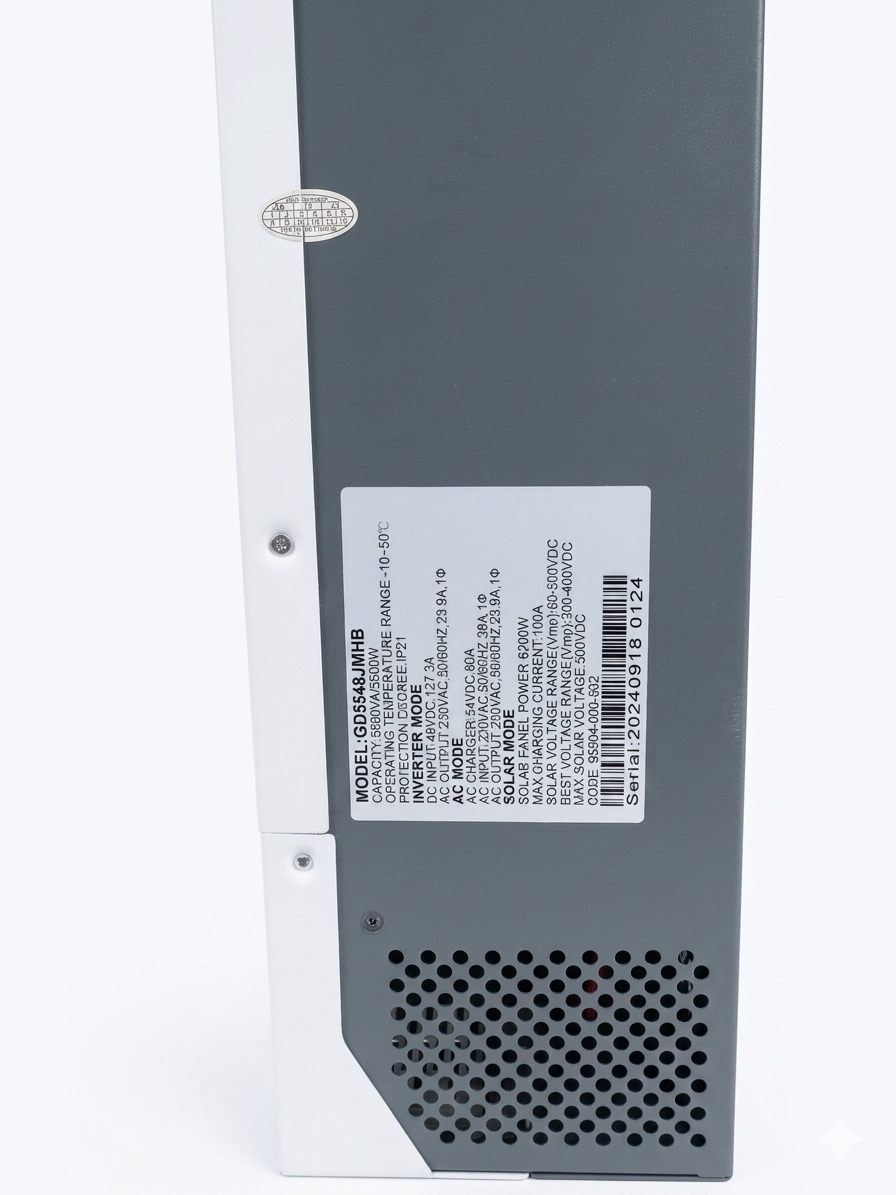

• 5.5kVA / 5.5kW pure sine wave inverter and charger
• 48V DC input system with 230V AC output (50/60Hz, single phase)
• Hybrid functionality (supports solar, grid, and battery integration)
• Maximum solar input power of 6200W
• Up to 100A solar charging current
• Wide solar voltage range: 60–500VDC (optimal 300–400VDC)
• Built-in 60A AC charger
• Operating temperature range: -10°C to +50°C
• IP21 protection rating for safety and durability
• Stable and clean power output suitable for sensitive electronics
