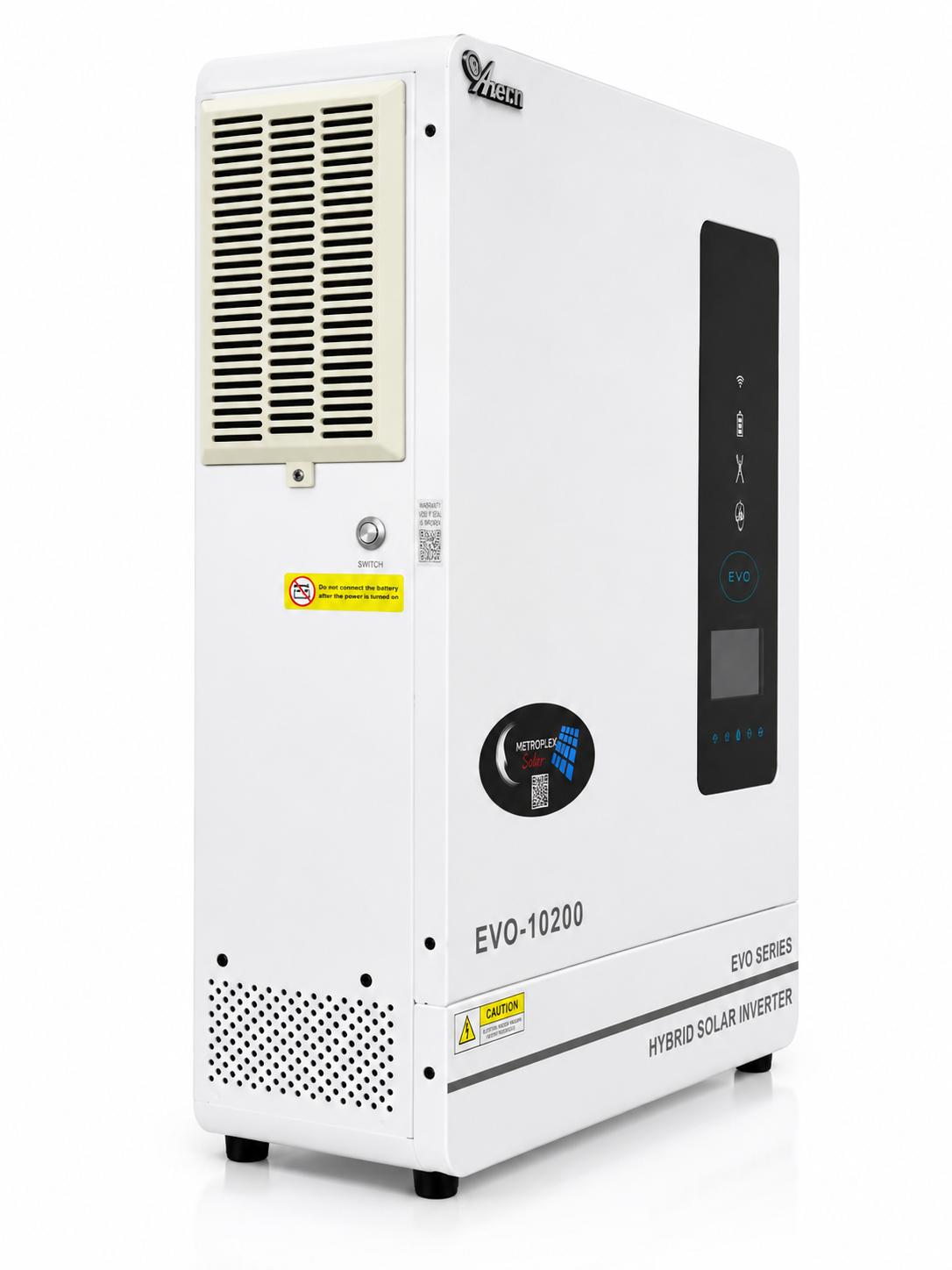

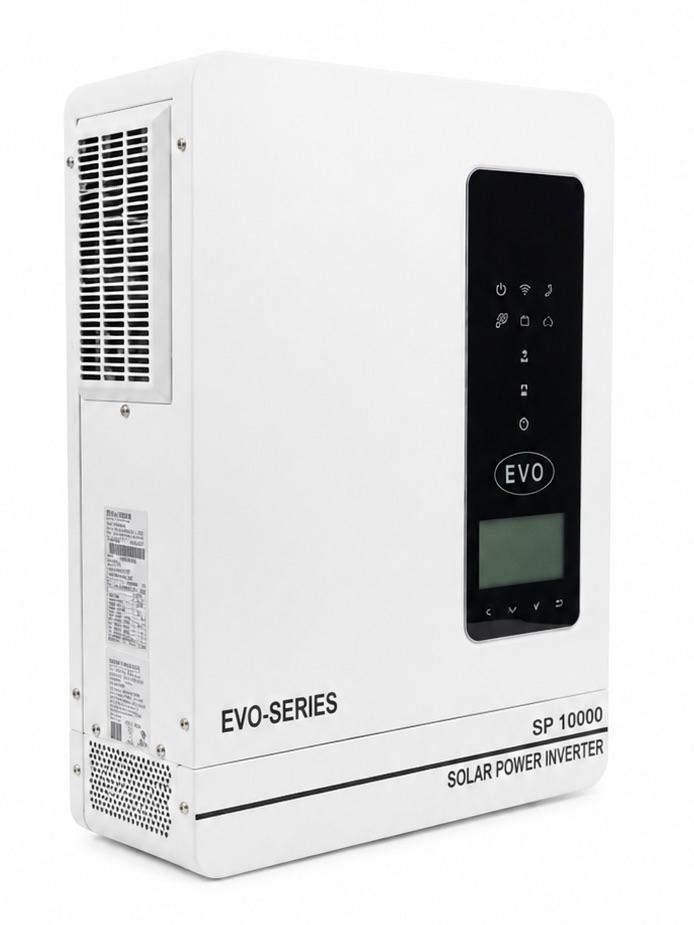

EVO Hybrid Inverters

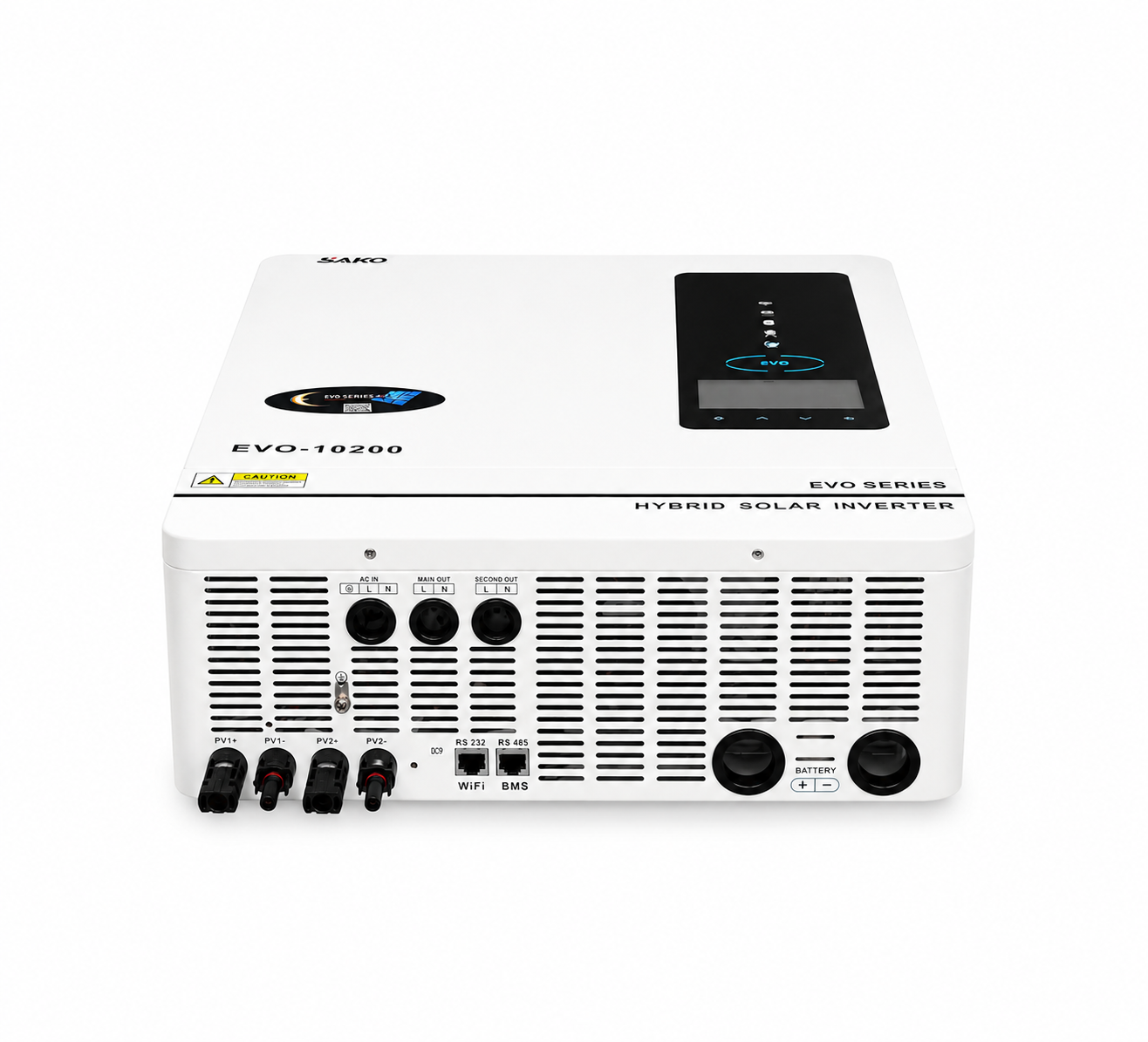

Description:

• Rated Power: 10.2KW / 10200W.
• System Voltage: 48V DC.
• Output: Pure Sine Wave, 230V AC (plus or minus 5%).
• PV Input: Maximum 10200W array power.
• MPPT Range: 90V DC to 450V DC (Maximum VOC 500V).
• Max Charging: 160A to 180A (Solar) / 140A (AC).
• Compatibility: Lead-Acid, Lithium, or battery-less operation.

Description:

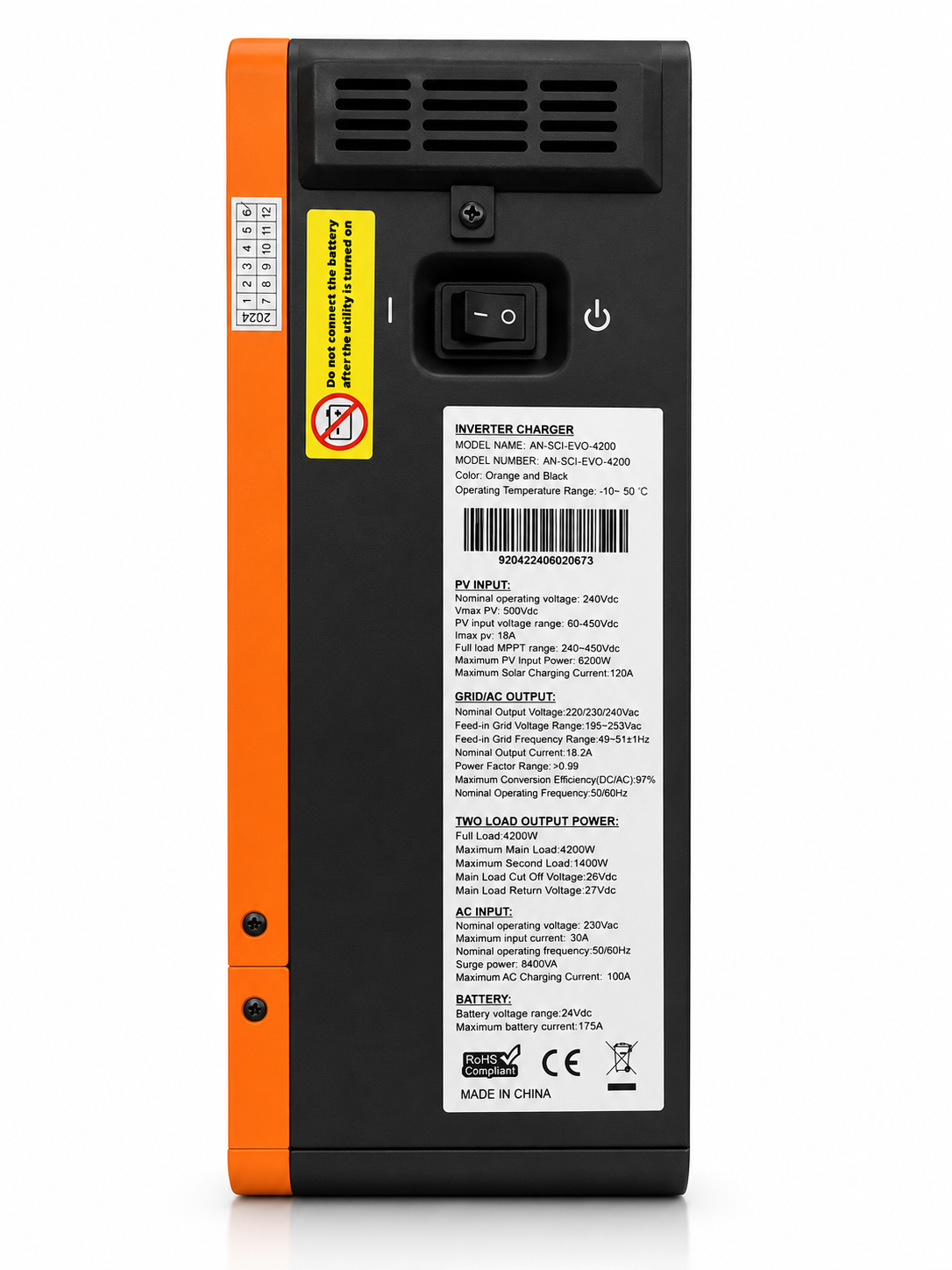

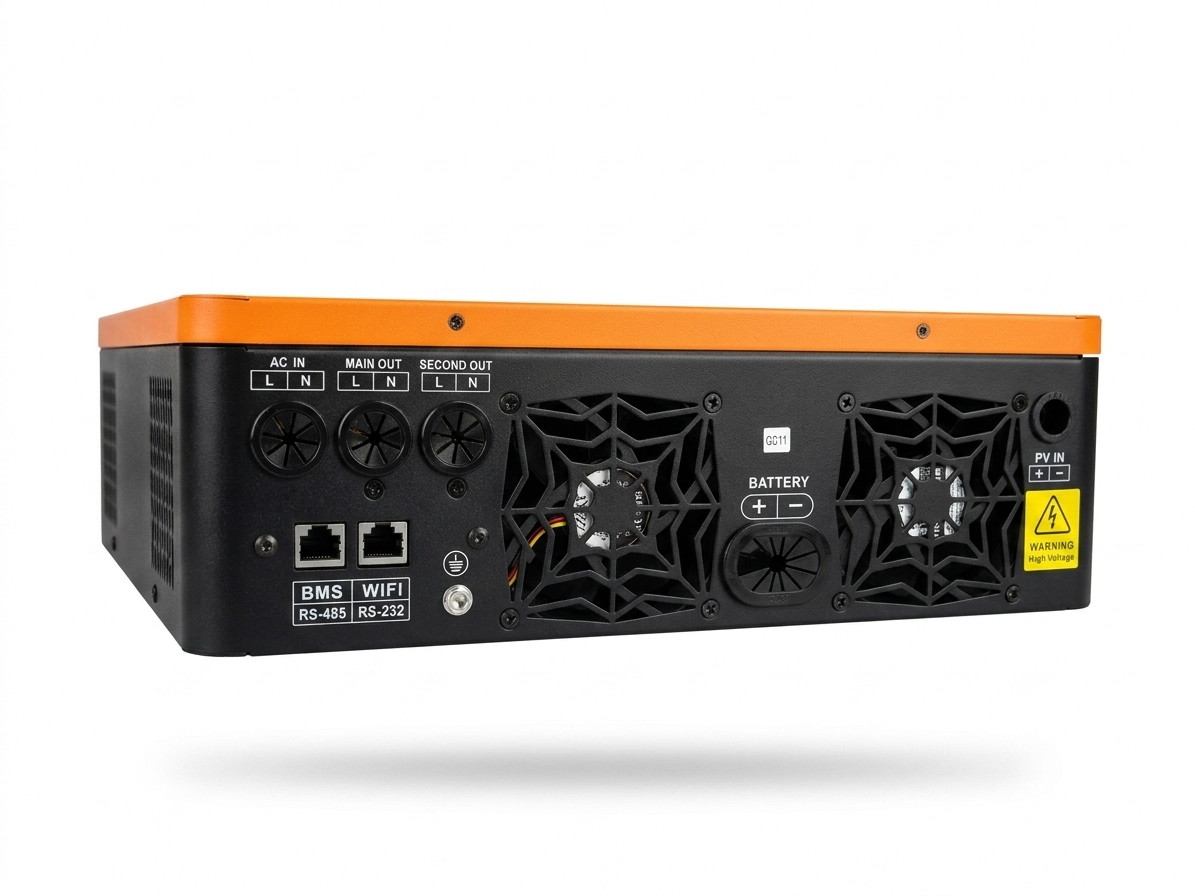

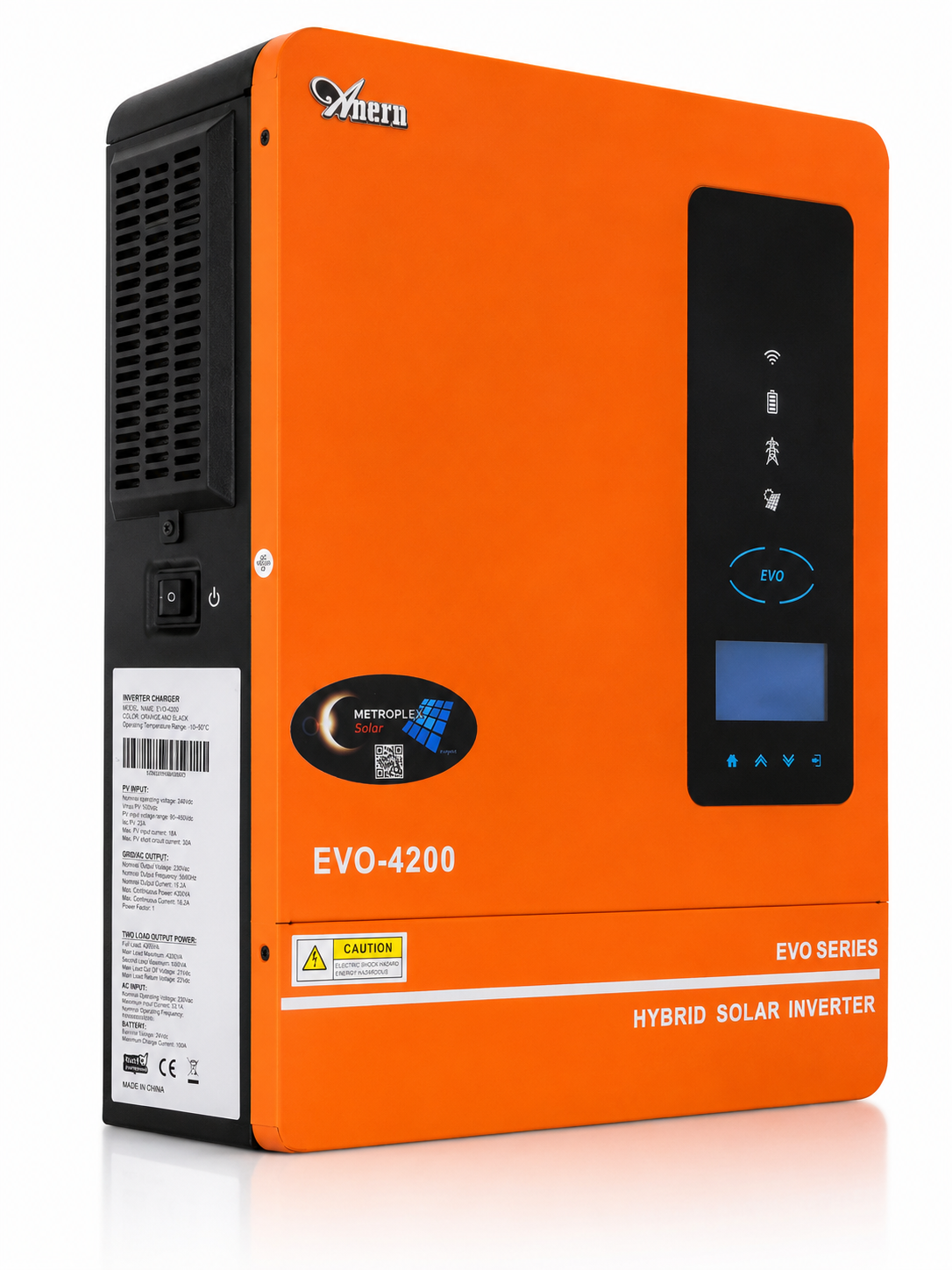

• Model: AN-SCI-EVO-4200
• Rated Power: 4200W
• PV Input Power: Up to 6200W
• Battery Voltage: 24VDC
• Maximum Charging Current: 120A
• AC Output Voltage: 220/230/240VAC
• Output Frequency: 50/60Hz
• Efficiency: Up to 97%
• PV Voltage Range: 60–450VDC (Max 500VDC)
• Maximum PV Current: 18A
• Operating Temperature: -10°C to 50°C
• Surge Power: 8400VA
• Power Factor: ?0.99

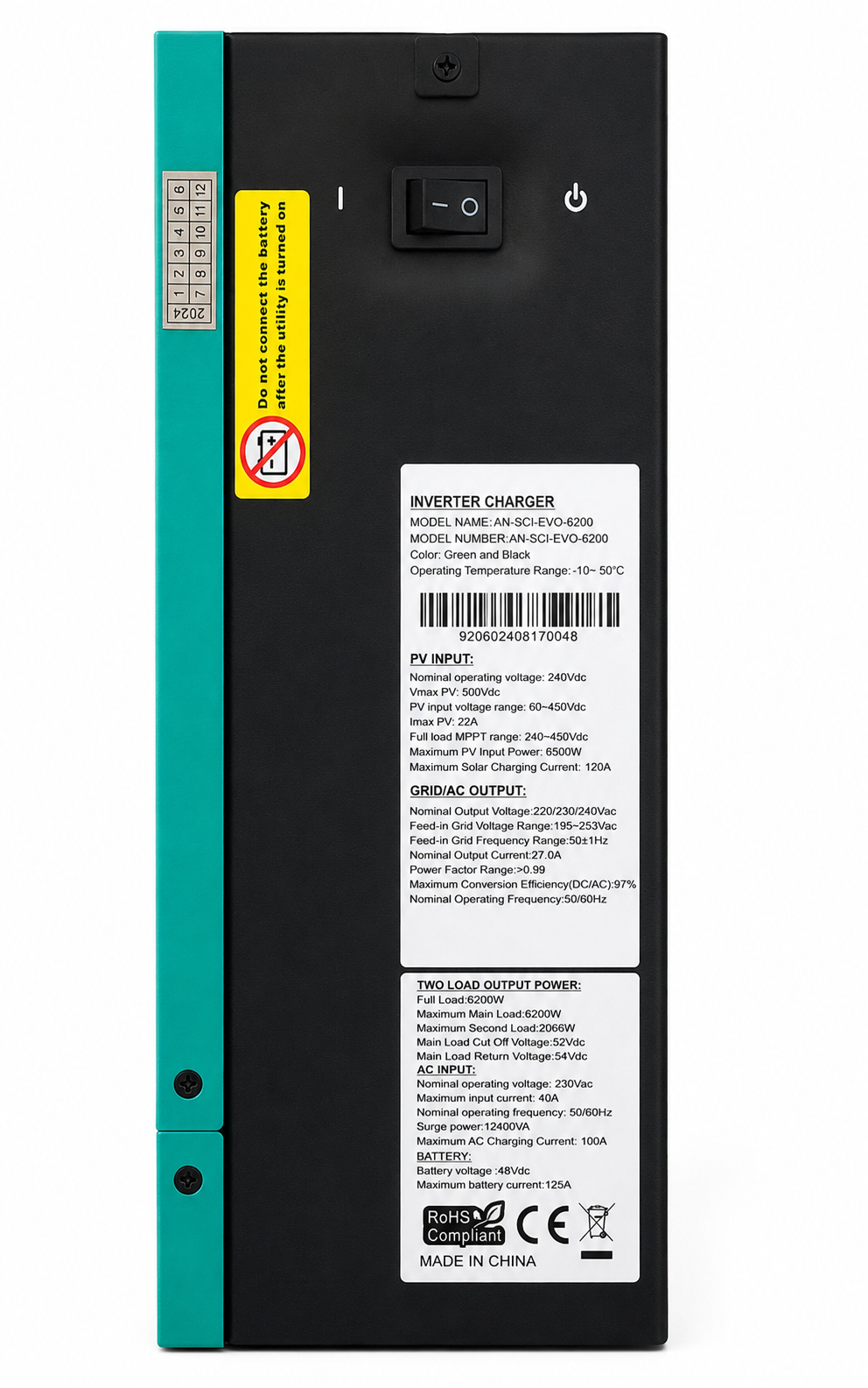

Description:

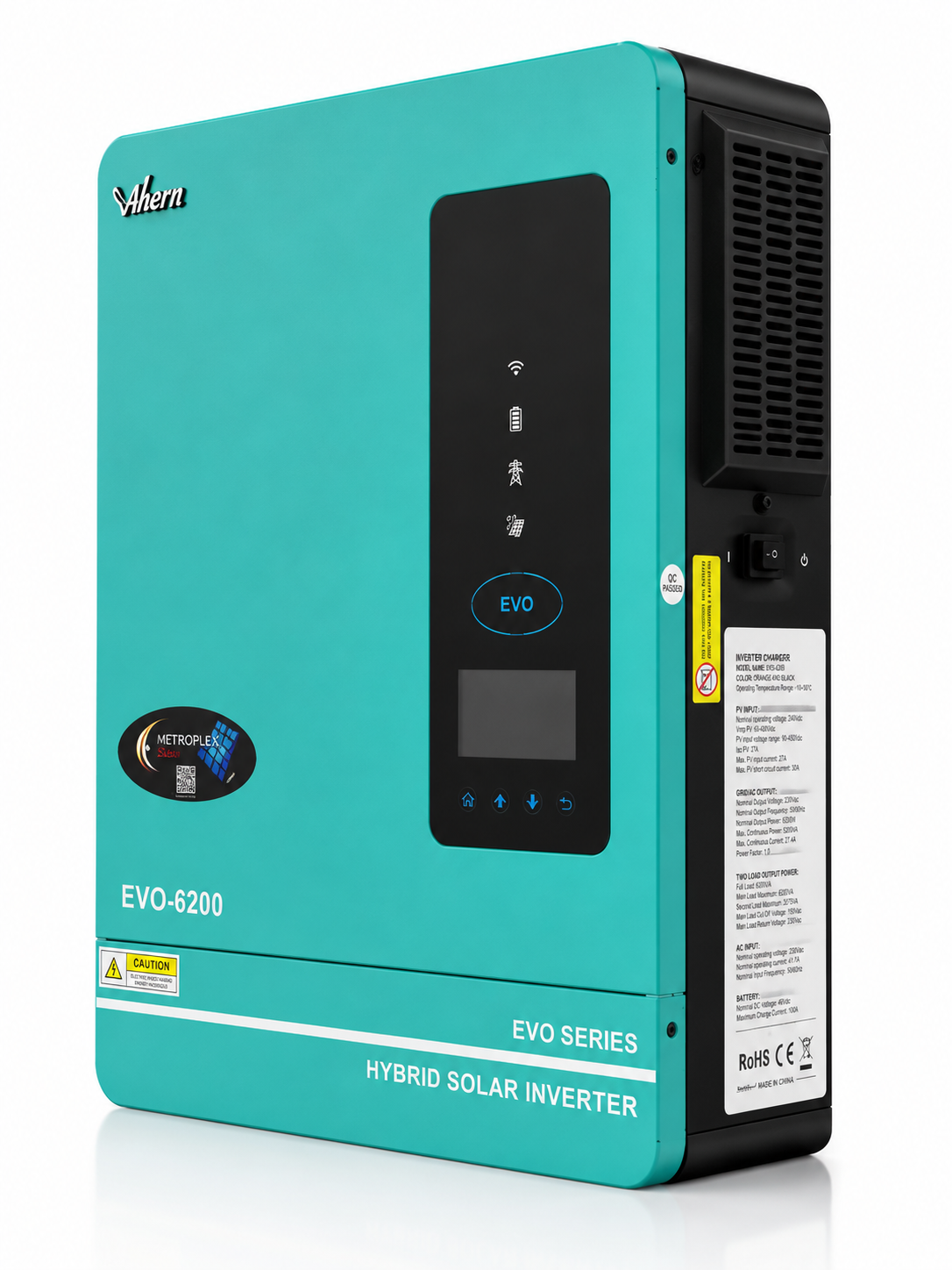

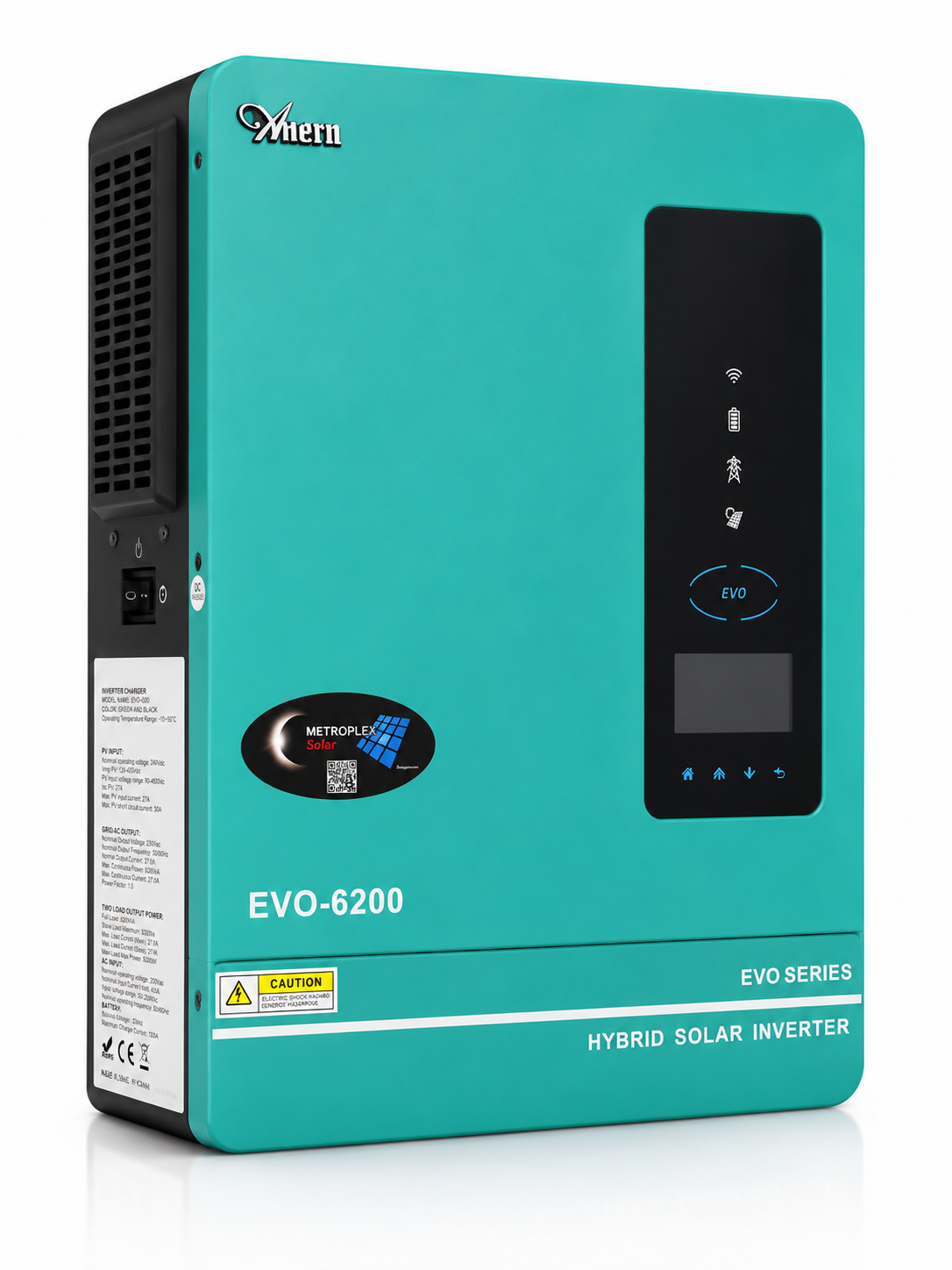

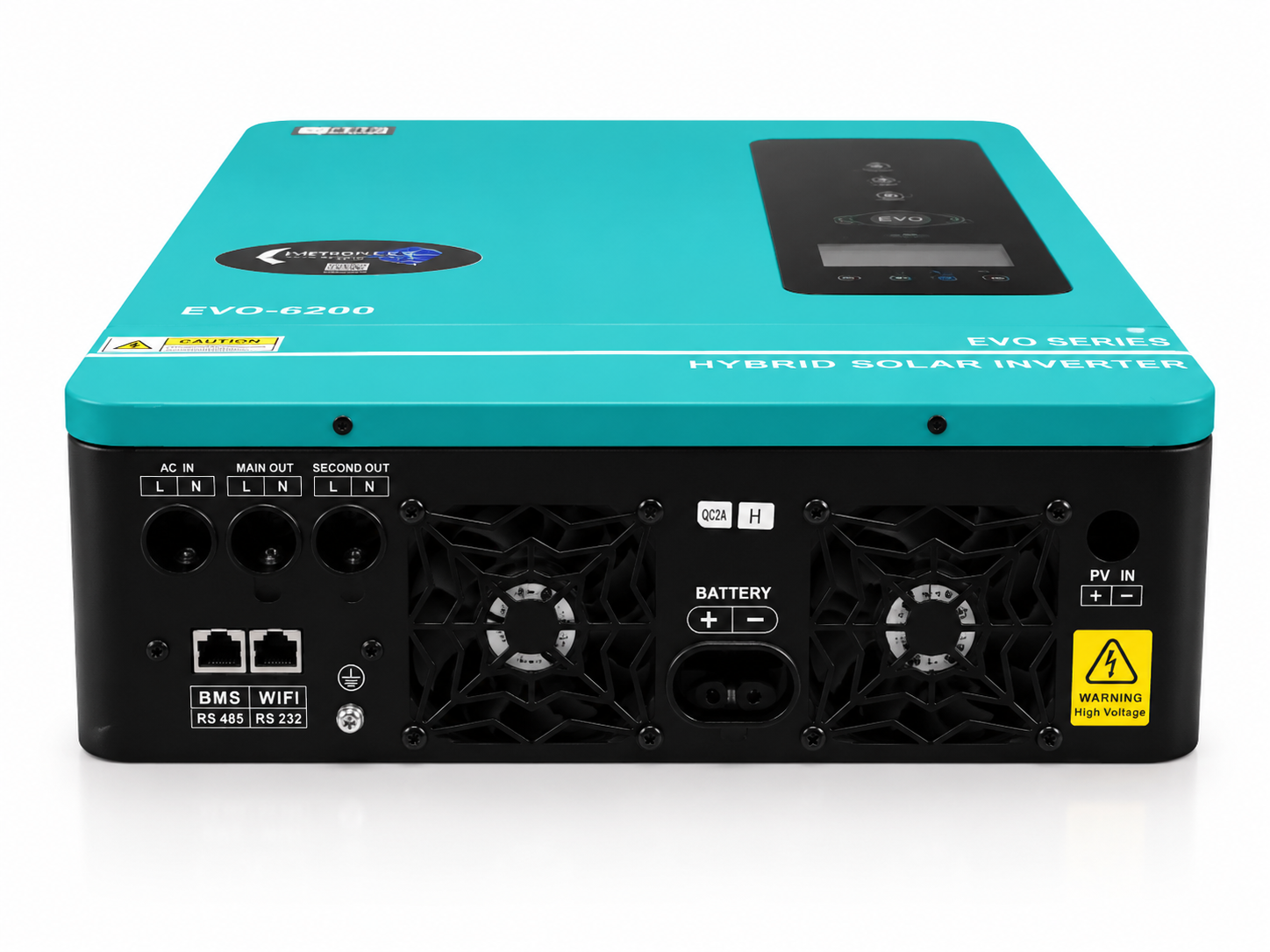

• Model: AN-SCI-EVO-6200
• Rated Power: 6200W
• Maximum PV Input Power: 6500W
• Max PV Open Circuit Voltage (V max): 500Vdc
• MPPT Voltage Range: 90V – 450Vdc
• Max Solar Charging Current: 120A
• Battery System Voltage: 48Vdc
• Max Battery Charging Current: 125A
• Max AC Charging Current: 100A
• AC Output Voltage: 220/230/240Vac
• Surge Power: 12400VA
• Max Efficiency: 97%
• Operating Temperature: -10°C to 50°C
