Quality Solar Panels

Description:

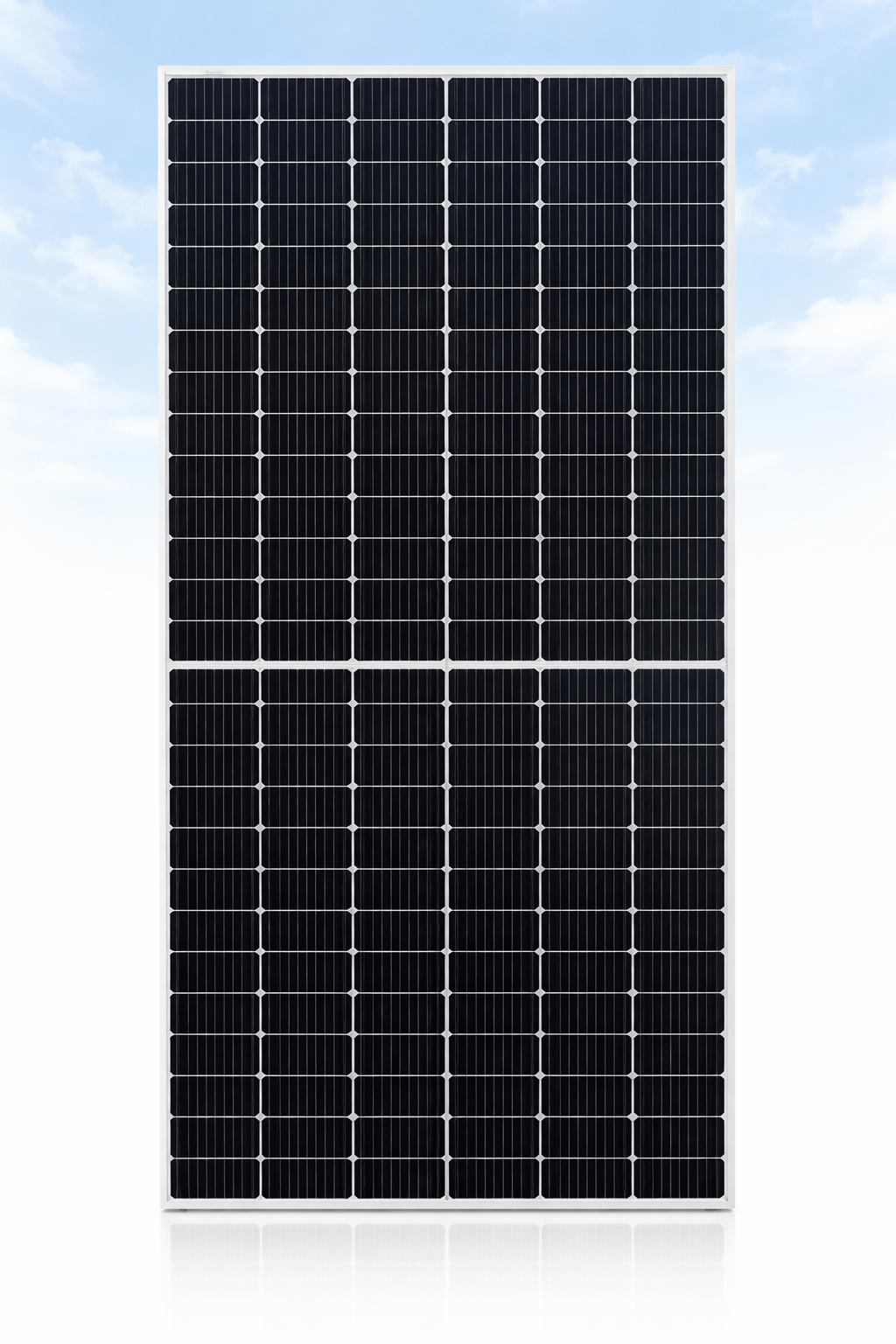

• Module Type: JMD550P-144M
• Rated Maximum Power (Pmax): 550W
• Voltage at Pmax (Vpm): 41.97V
• Current at Pmax (Imp): 13.11A
• Open-Circuit Voltage(Voe): 49.95V
• Short Circuit Current(Isc): 14.05A
• Maximum System Voltage: 1500VDC
• Maximum Series Fuse Rating: 20A
• Safety Class: Class A
• Dimension: 2278*1134*35mm

Material Data:

• Crystalline Silicon Photovoltaic PERC Monocrystalline Solar Panels

Description:

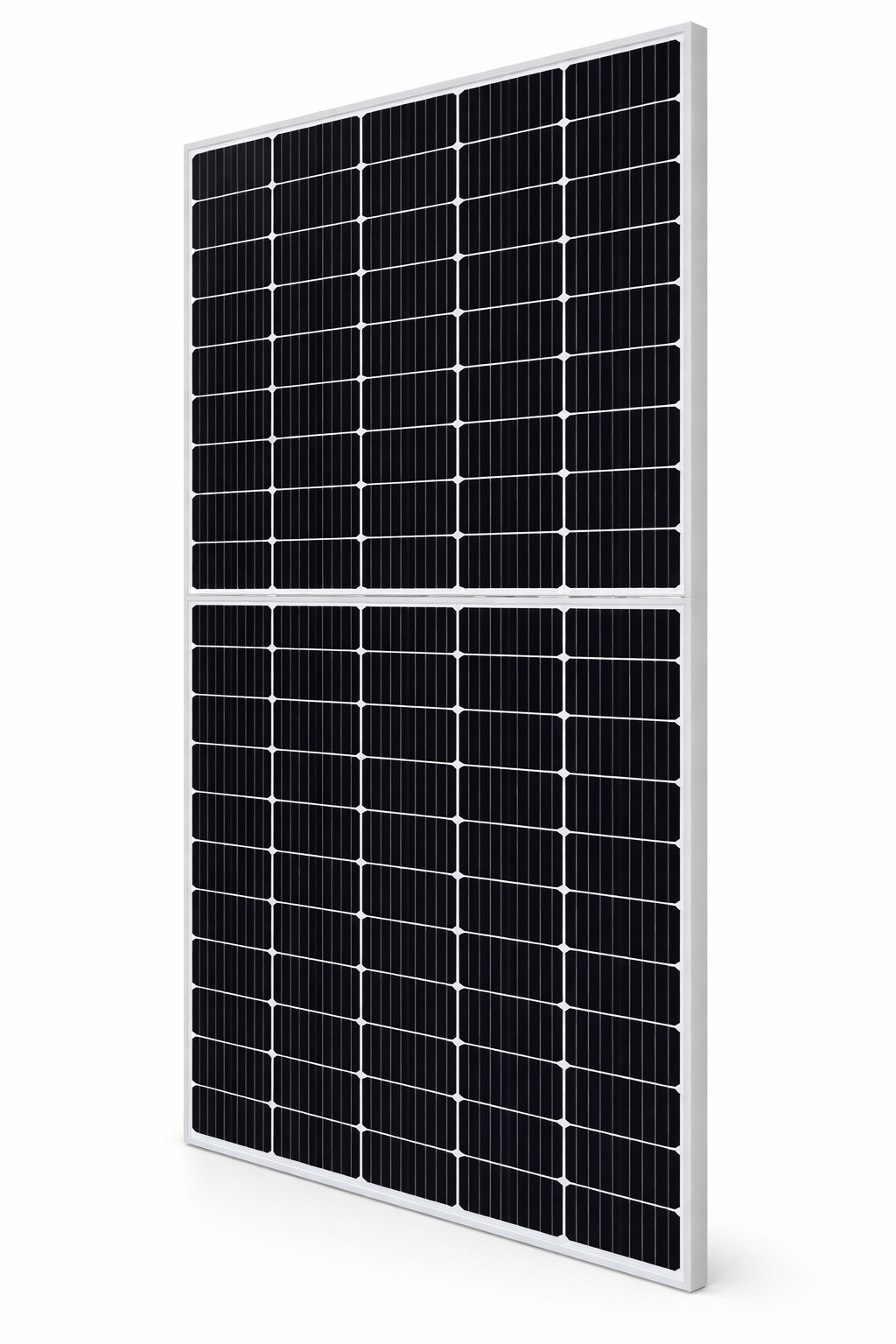

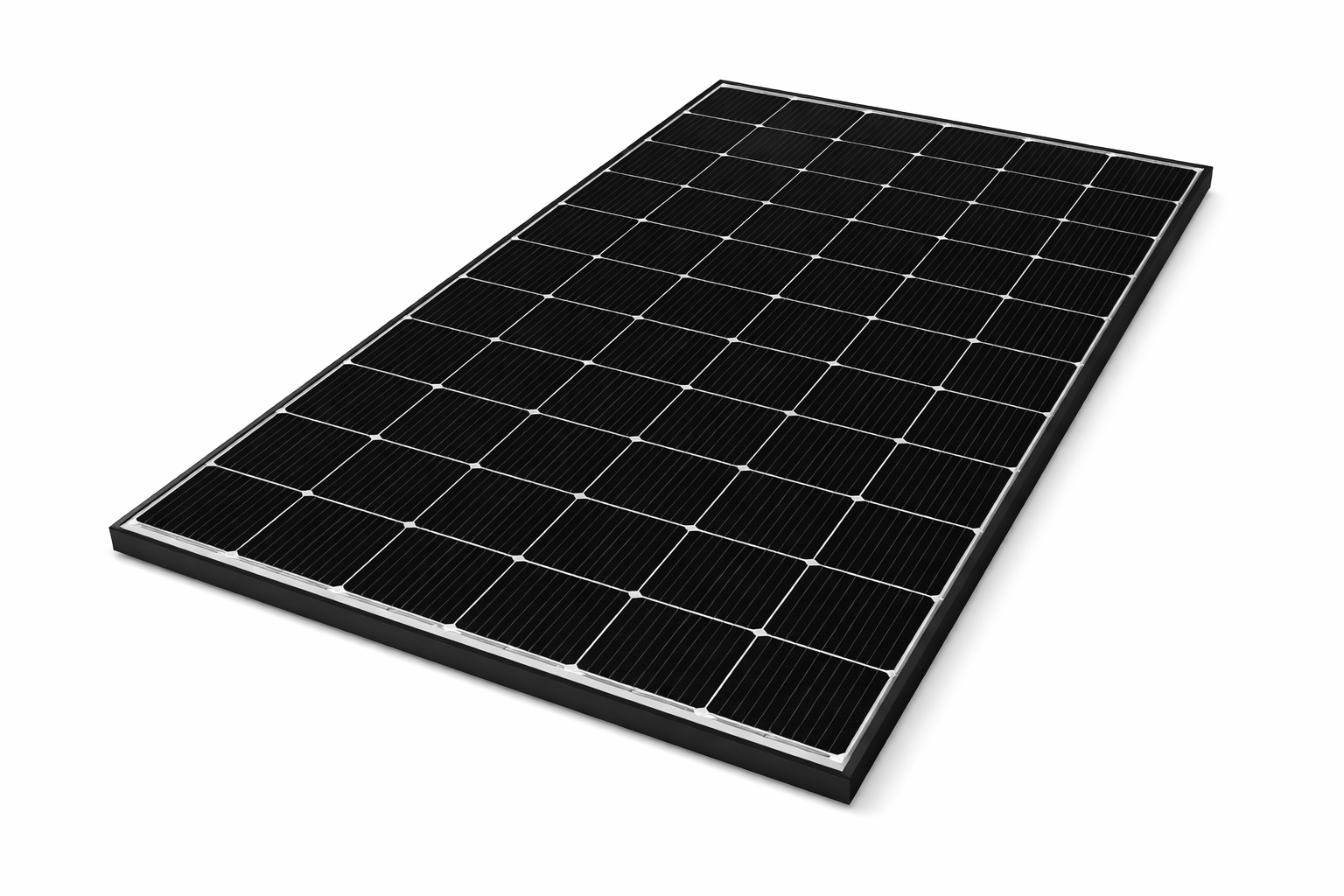

• Module Type: 182M36034
• Rated Maximum Power (Pmax): 360W
• Voltage at Pmax (Vpm): 34.20V
• Current at Pmax (Imp): 10.53A
• Open-Circuit Voltage(Voe): 41.04V
• Short Circuit Current(Isc): 11.16A
• Maximum System Voltage: 1000VDC
• Safety Class: Class A
• Dimension: 1540*1134*30mm

Material Data:

• MONO CRYSTALLINE SOLAR MODULE
