Quality Solar Batteries

Description:

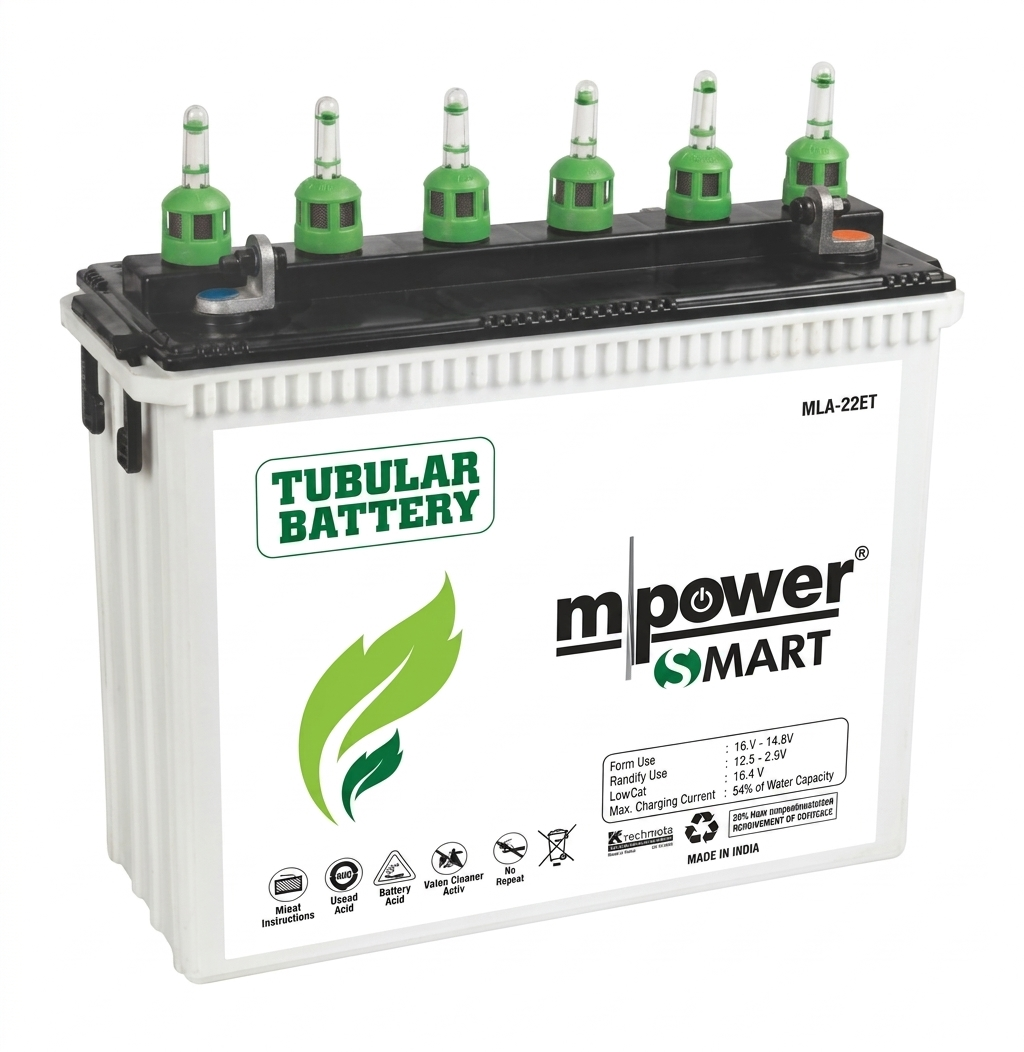

• Model: MLA-225T / MLA-250T.
• Voltage: 12V.
• Capacity: 220Ah to 250Ah (C20 rating).
• Type: Tall Tubular Wet-Cell (Lead Acid).
• Cycle Life: 1200 to 1500 cycles at 80% Depth of Discharge.
• Charging: 14.1V to 14.8V (Cycle) / 13.5V to 13.8V (Standby).
• Max Charge Current: 50A to 65A (approx. 25% to 30% of capacity).
• Maintenance: 6 Float-type vent indicators for electrolyte monitoring.

Product Advantage:

Description:

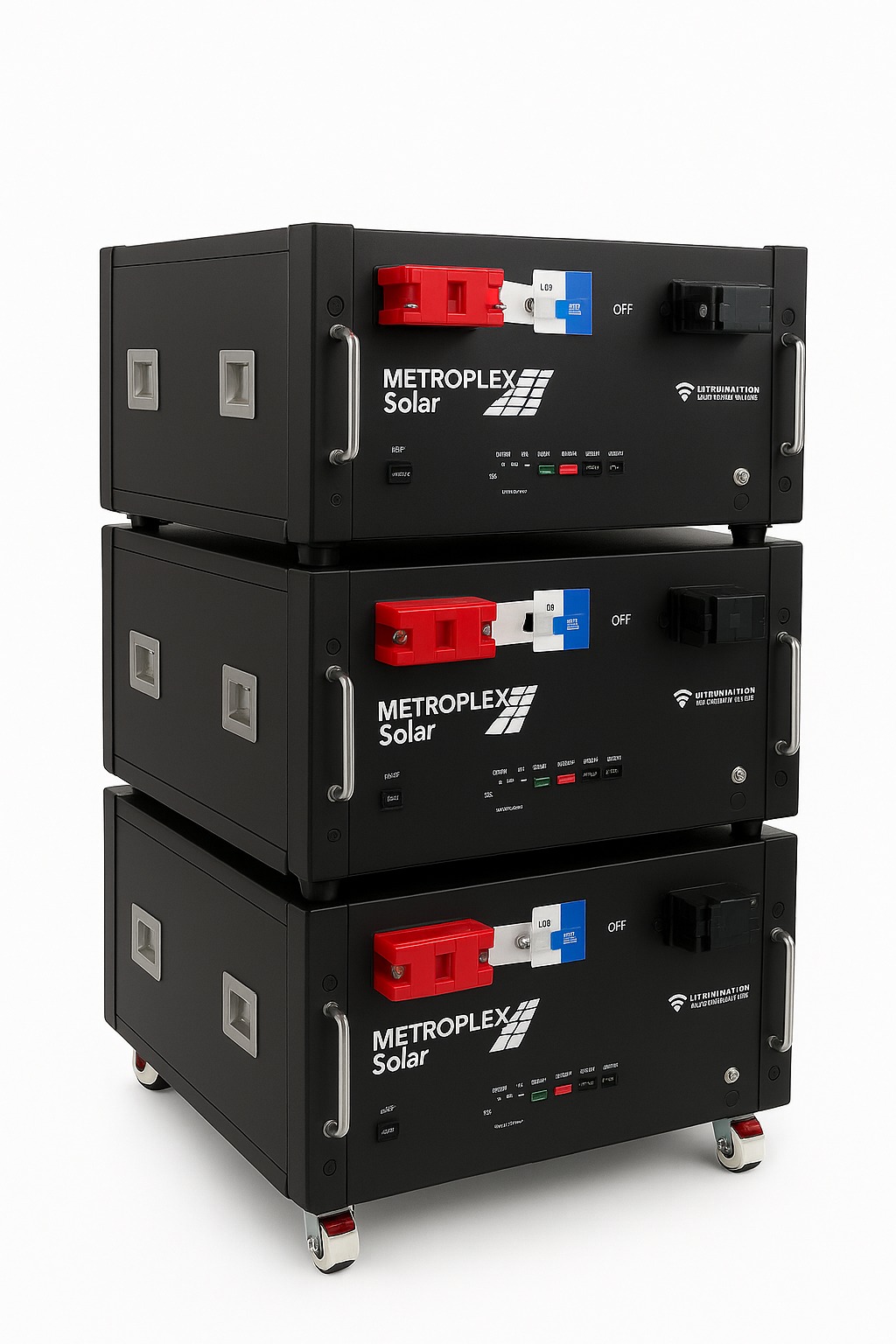

• Nominal Voltage: 51.2 V
• Nominal Capacity: 314Ah
• Dimensions: 750483220mm
• Weight: 120kg
• Cells: A Grade Full New Quality Cells
• BMS: Each Battery Built-In Smart BMS, with WiFi, RS485, RS232, CAN communication
• Monitoring: Touch screen, Can monitor battery data
• Scalability: Can support more than 10 parallel connections

Product Advantage:

Description:

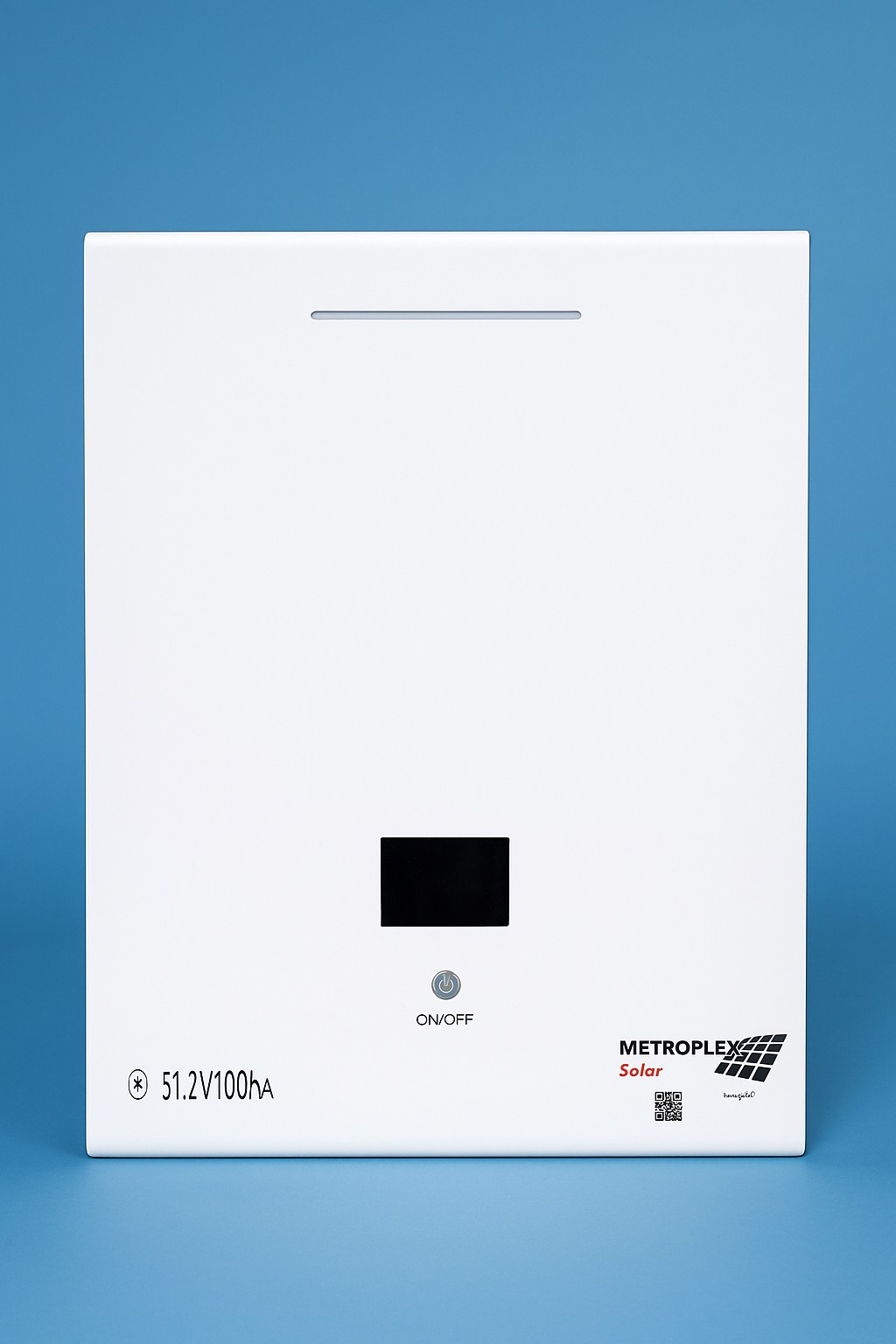

• Capacity & Voltage: 51.2V 100Ah (5.12kWh).
• BMS Configuration: Integrated 100A Smart BMS with built-in Bluetooth connectivity.
• Form Factor: Wall-mounted type with an integrated LCD Screen and LED status indicators.
• Scalability: Supports parallel connection of up to 10 units using an external Bus Bar.
• Total System Capacity: Expandable up to 51.2V 1000Ah (51.2kWh total).
• Charging/Discharging Current:
• Maximum: 100A
• Recommended: 50A (Optimized for battery longevity).

Product Advantage:

Description:

• Capacity & Voltage: 51.2V 200Ah (10.24kWh).
• BMS Configuration: Integrated 200A Smart BMS with built-in Bluetooth connectivity.
• Durability: Rated for 6000+ cycles.
• Form Factor: Floor-mounted design equipped with rollers, an integrated LCD Screen, and LED status indicators.
• Scalability: Supports parallel connection of up to 10 units using an external Bus Bar.
• Total System Capacity: Expandable up to 51.2V 2000Ah (102.4kWh total).
• Charging/Discharging Current:
• Maximum: 200A

Product Advantage:

Description:

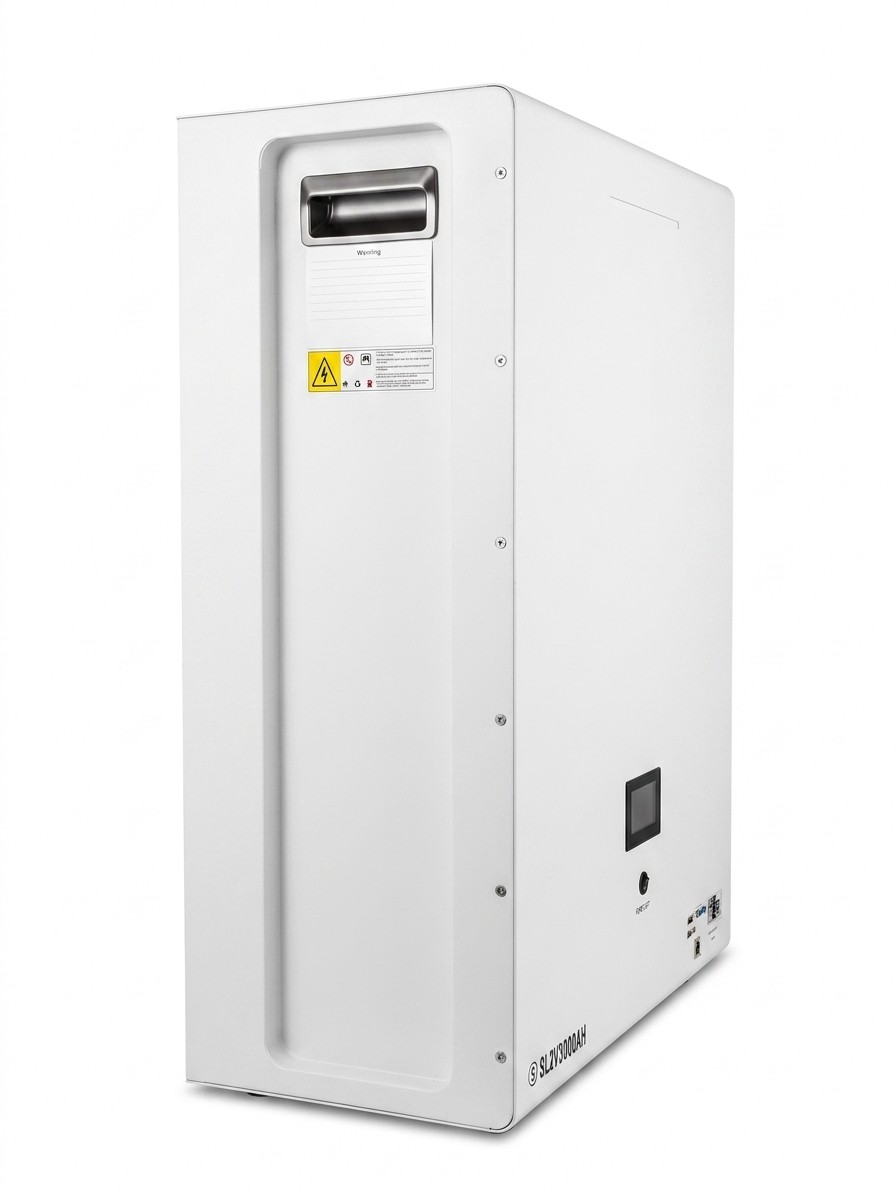

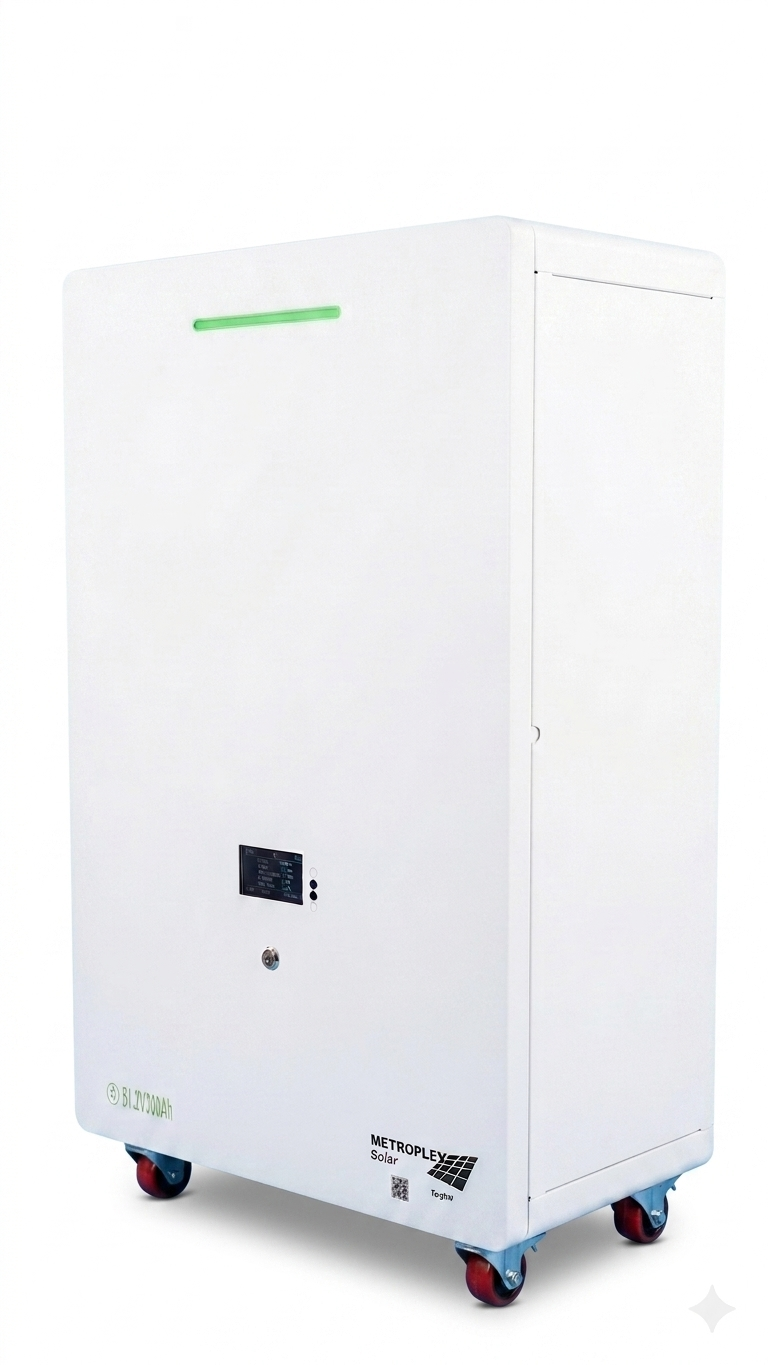

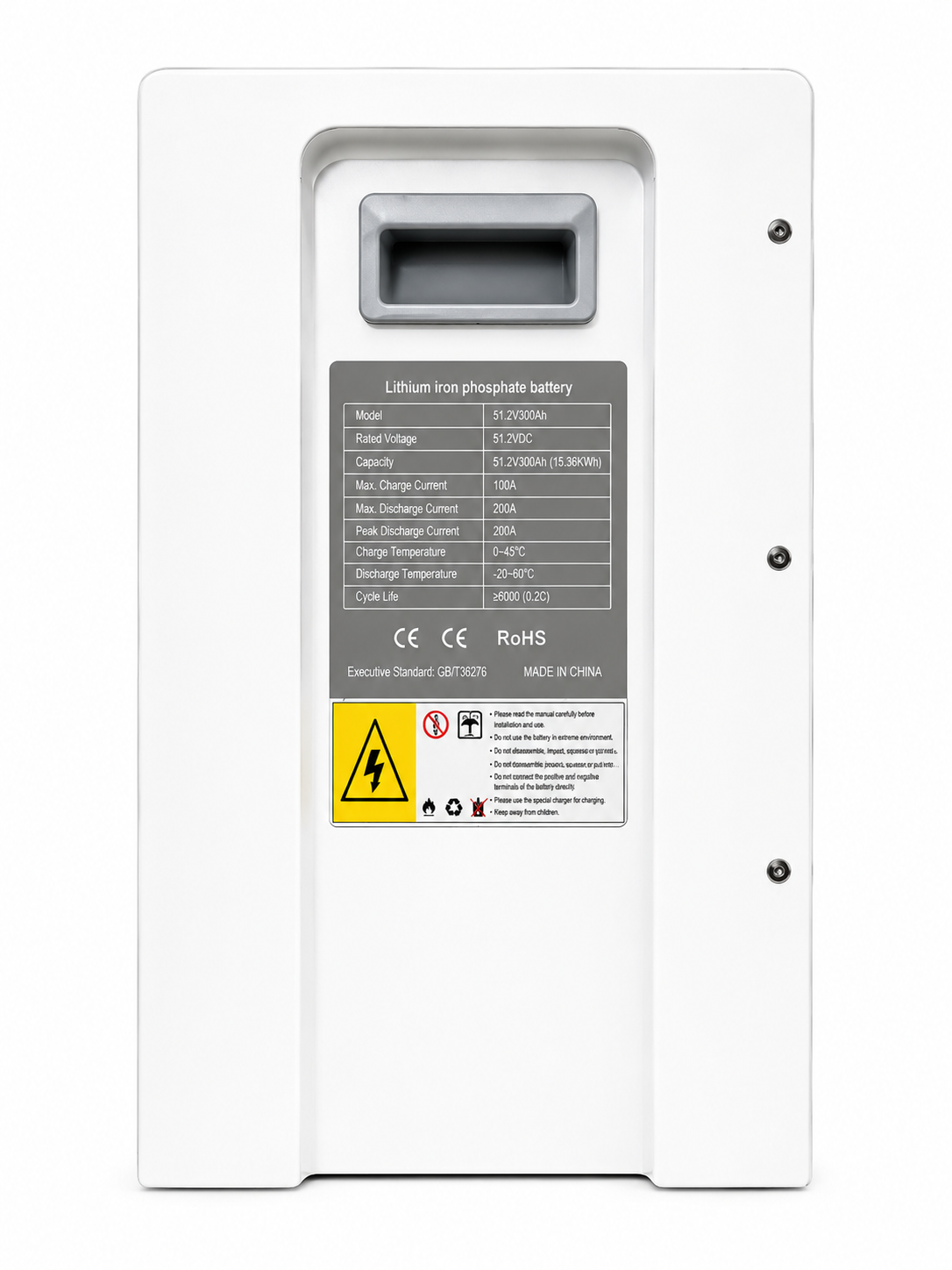

• Capacity & Voltage: 51.2V 300Ah (15.36kWh).
• BMS Configuration: Integrated 200A Smart BMS with built-in Bluetooth connectivity.
• Durability: Rated for 6000+ cycles.
• Form Factor: Floor-mounted design equipped with rollers, an integrated LCD Screen, and LED status indicators.
• Scalability: Supports parallel connection of up to 10 units.
• Total System Capacity: Expandable up to 51.2V 3000Ah (153.6kWh total).
• Charging/Discharging Current:
• Maximum: 200A
• Recommended: 100A – 150A

Product Advantage:
