Quality Inverters

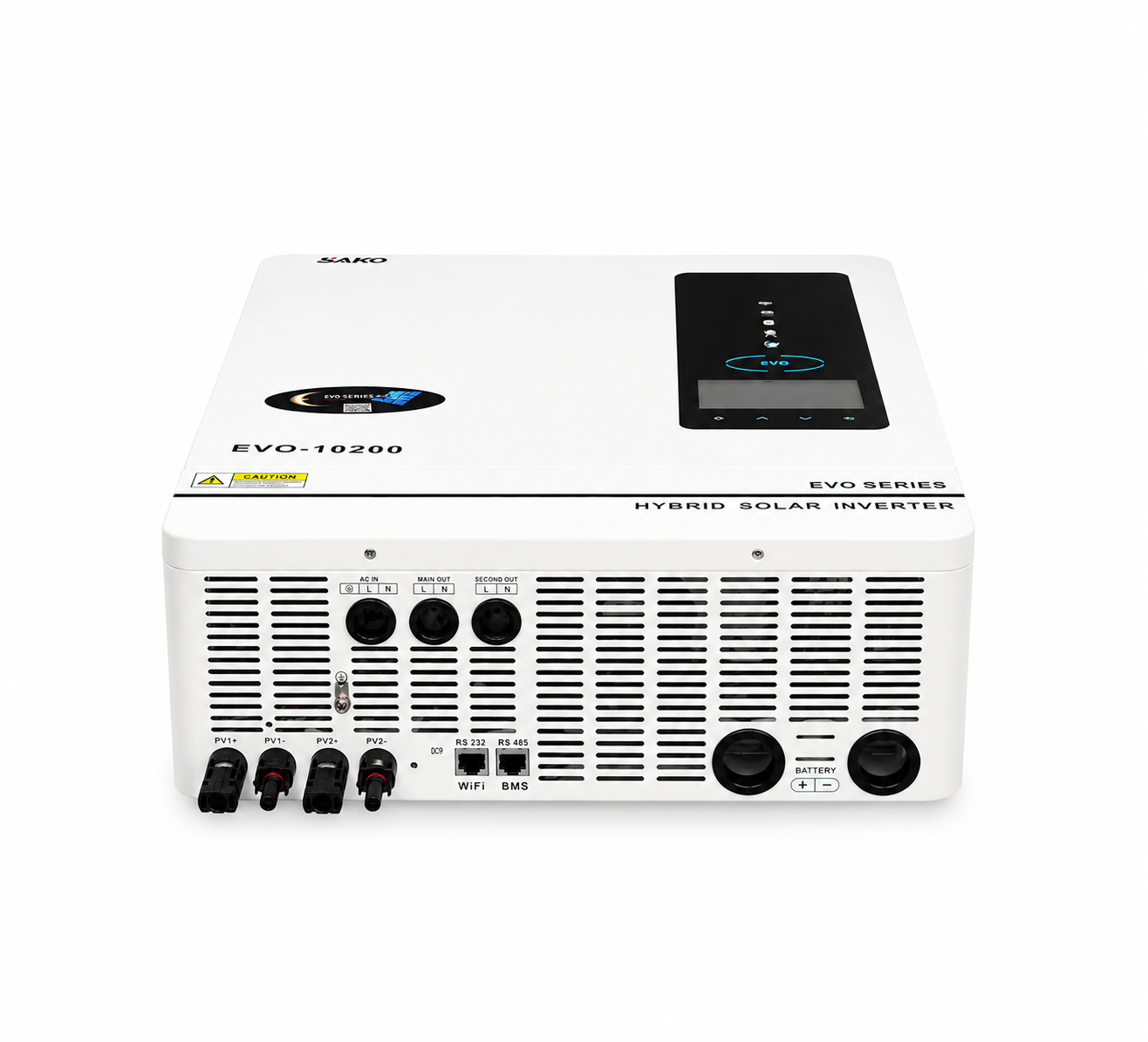

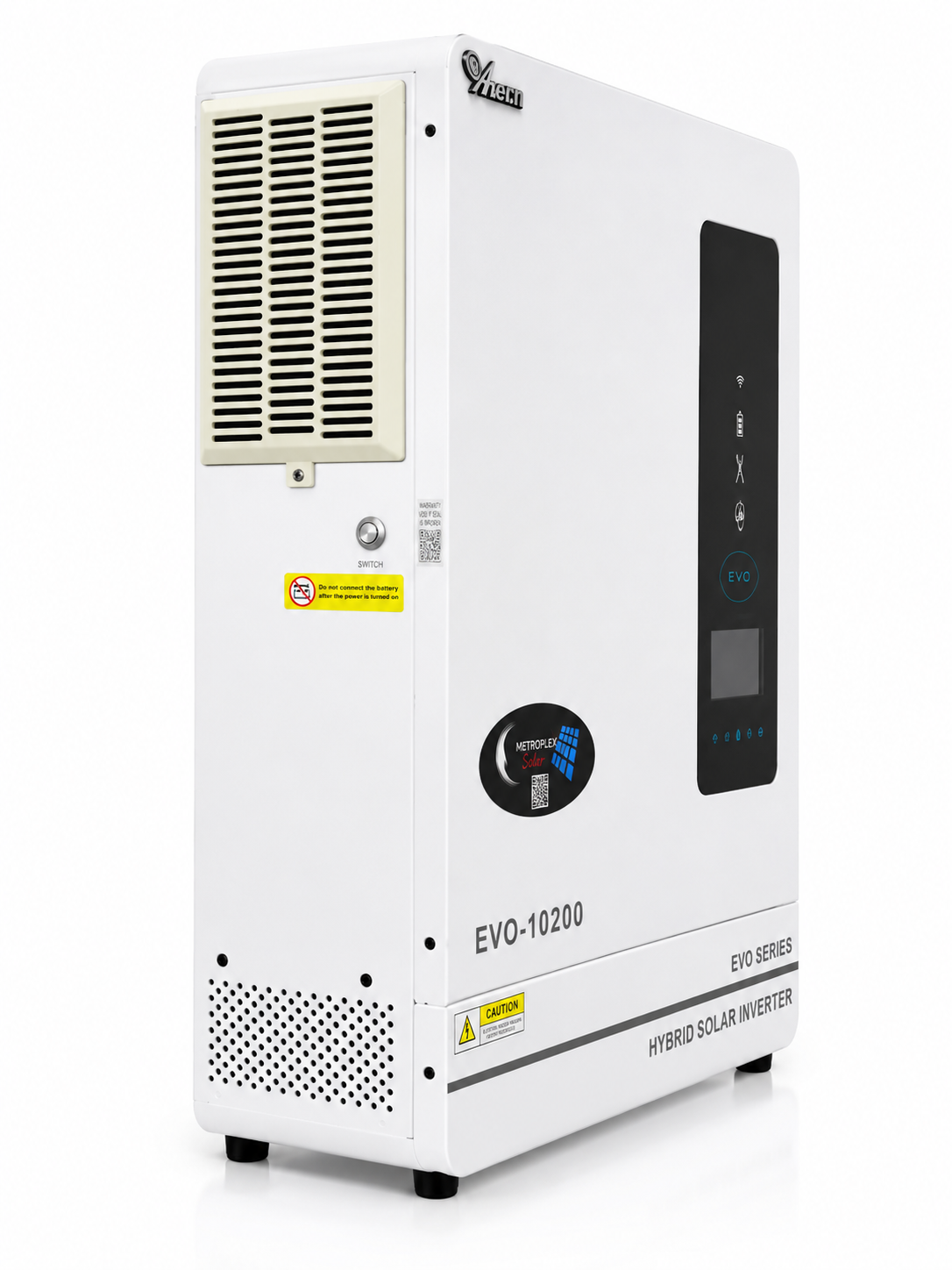

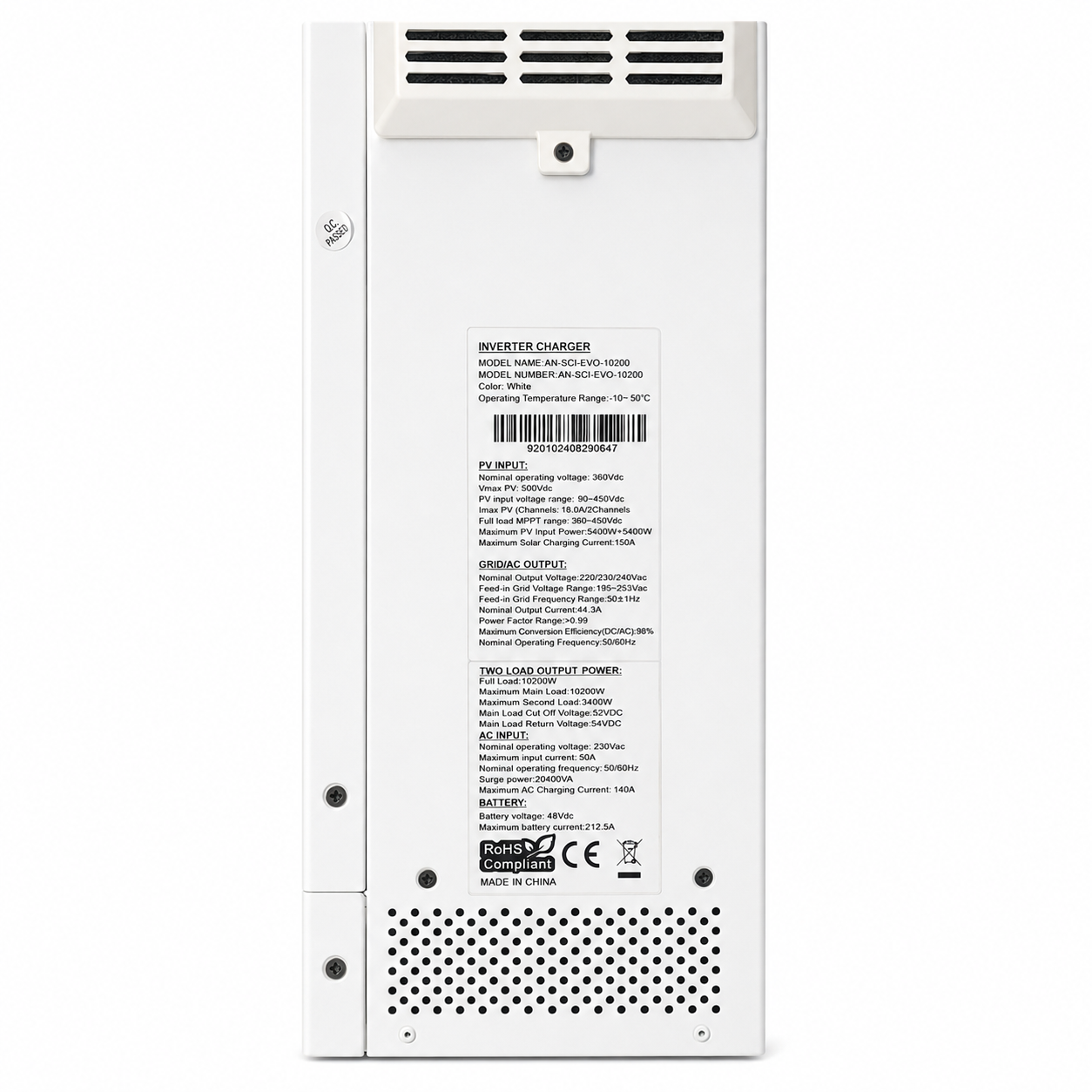

Description:

• Rated Power: 10.2KW / 10200W.
• System Voltage: 48V DC.
• Output: Pure Sine Wave, 230V AC (plus or minus 5%).
• PV Input: Maximum 10200W array power.
• MPPT Range: 90V DC to 450V DC (Maximum VOC 500V).
• Max Charging: 160A to 180A (Solar) / 140A (AC).
• Compatibility: Lead-Acid, Lithium, or battery-less operation.

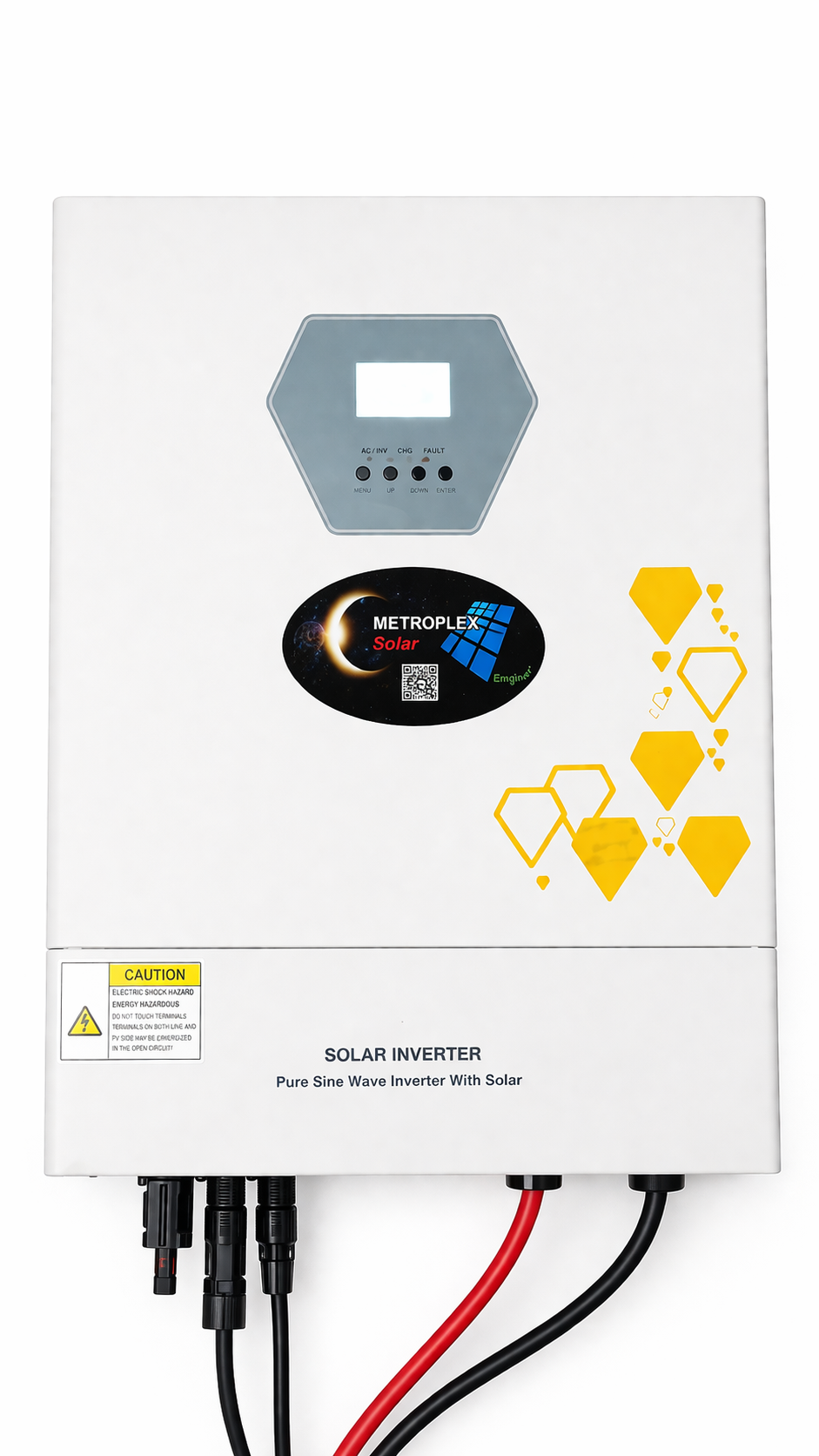

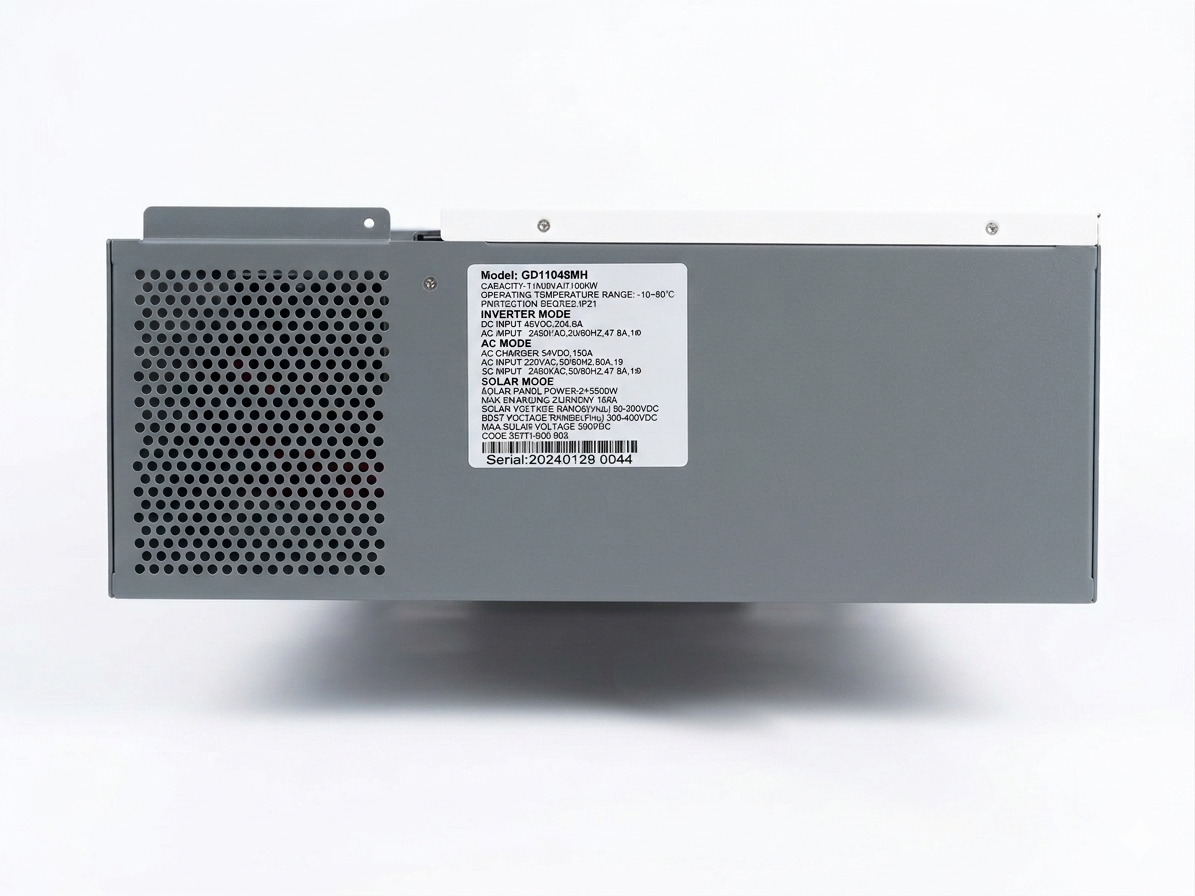

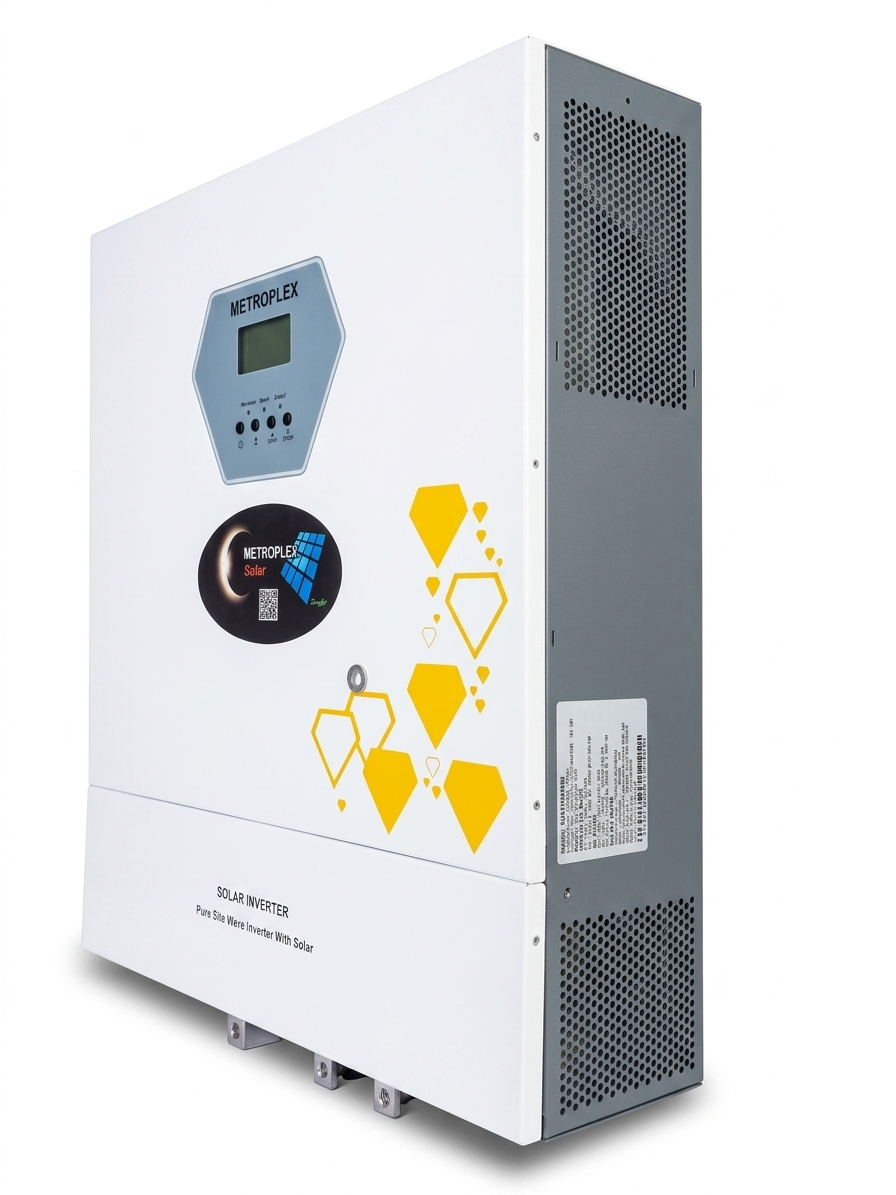

Description:

• MODEL: GD11048MHB
• CAPACITY: 11000VA/11000W
• OPERATING TEMPERATURE RANGE: -10-50°
• PROTECTION DEGREE: IP21
• DC INPUT: 48VDC, 254,6A
• AC OUTPUT: 230VAC, 50/60HZ, 47.8A 1?
• AC CHARGER: 54VDC, 150A
• AC INPUT: 230VAC, 50/60HZ, 60A, 1?
• AC OUTPUT: 230VAC, 50/60HZ, 47.8A,1?
• SOLAR PANEL POWER: 2X5500W
• MAX. CHARGING CURRENT: 150A
• SOLAR VOLTAGE RANGE(Vmp): 90-500VDC
• BEST VOLTAGE RANGE(Vmp): 300-400VDC
• MAX SOLAR VOLTAGE: 500VDC
• CODE: 95111-000-005
• N.W: 19.31KG
• G.W: 22.60KG
• SIZE: 708*570*241MM

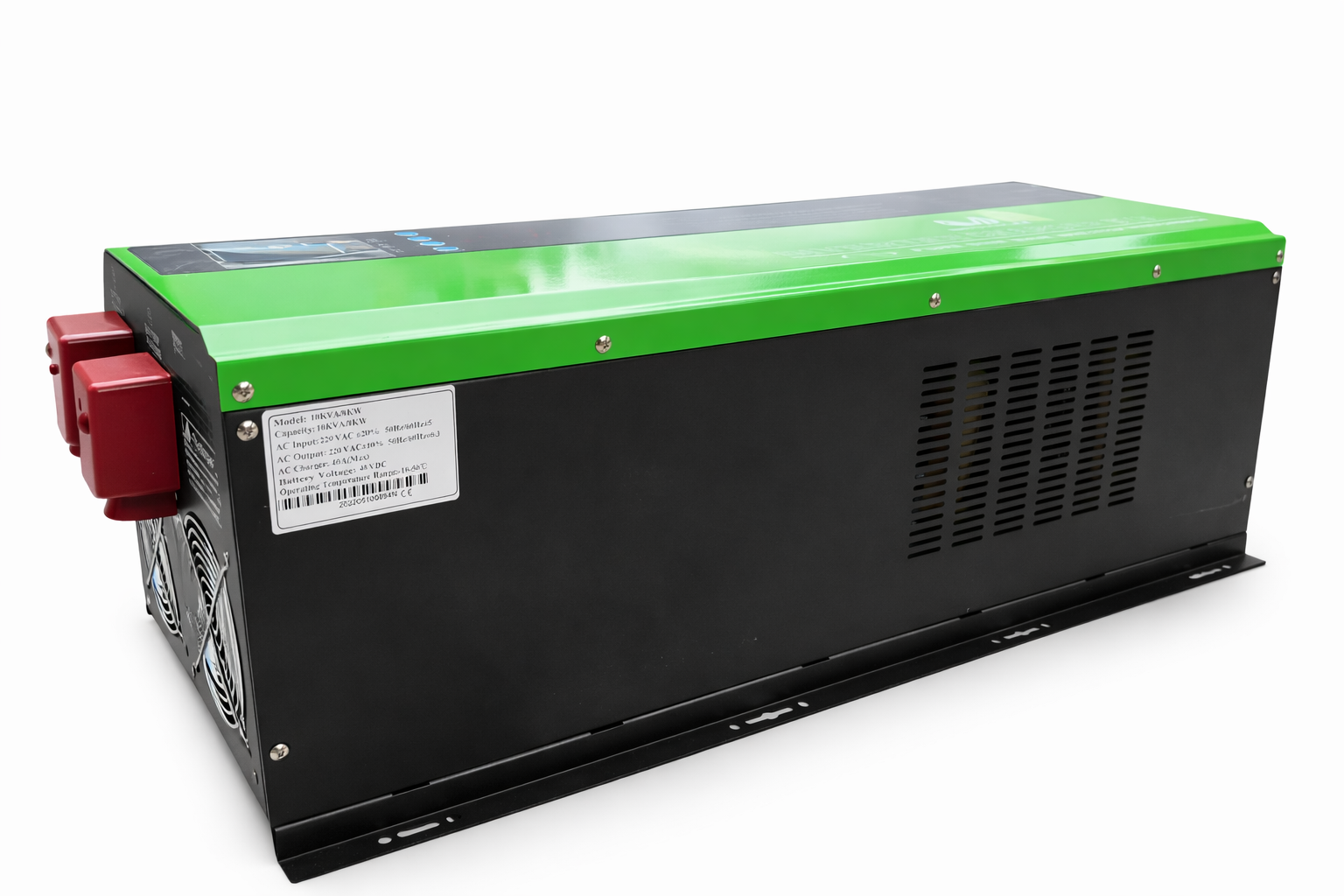

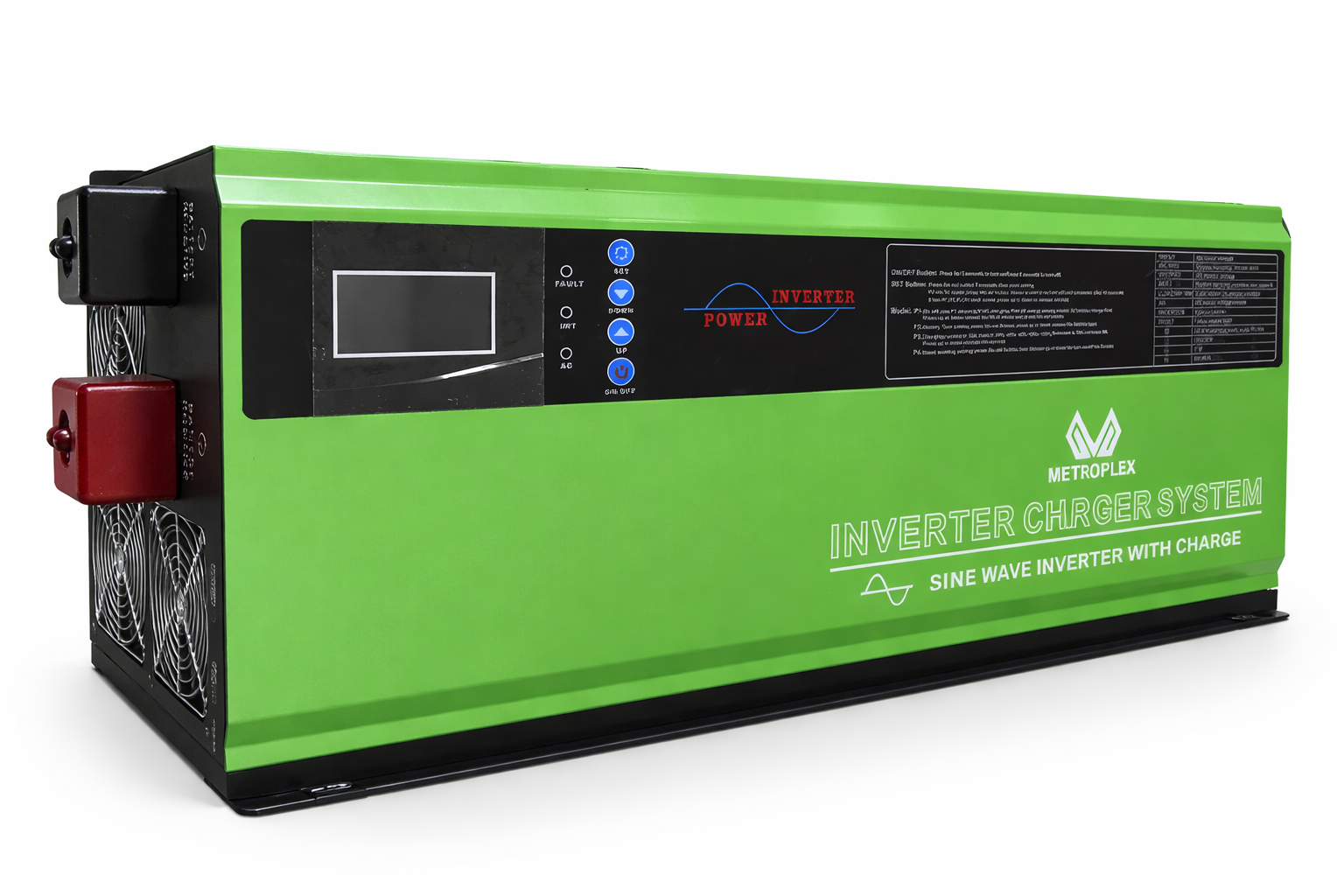

Description:

• Model: 10KVA/8KW
• Capacity: 10KVA/8KW
• AC Input: 220 VAC +-20% 50Hz/60Hz+-5
• AC Output: 220 VAC +-10% 50Hz/60Hz+-0.3
• AC Charger: 40A(Max)
• Battery Voltage: 48VDC
• Operating Temperature Range: -10-50°C

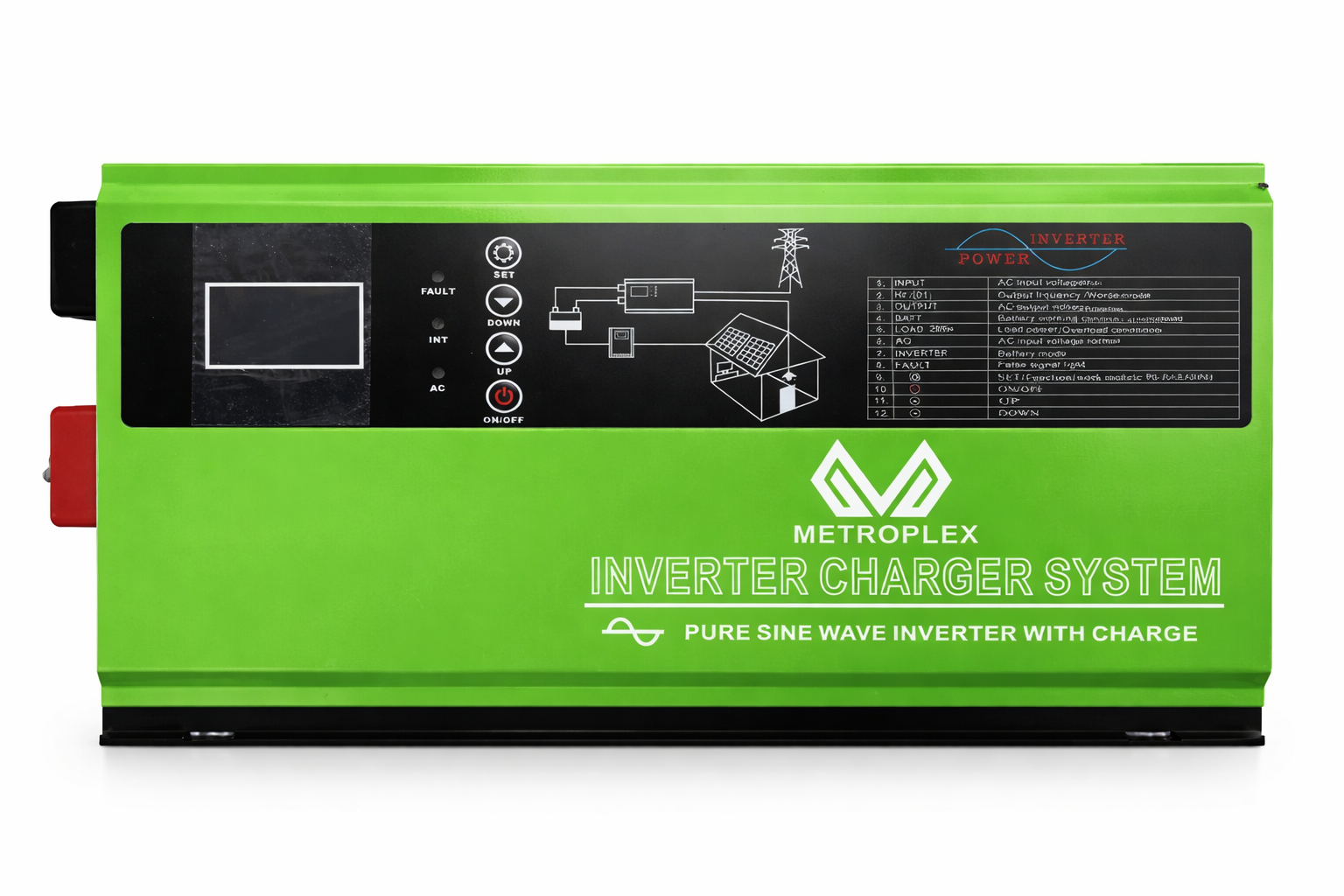

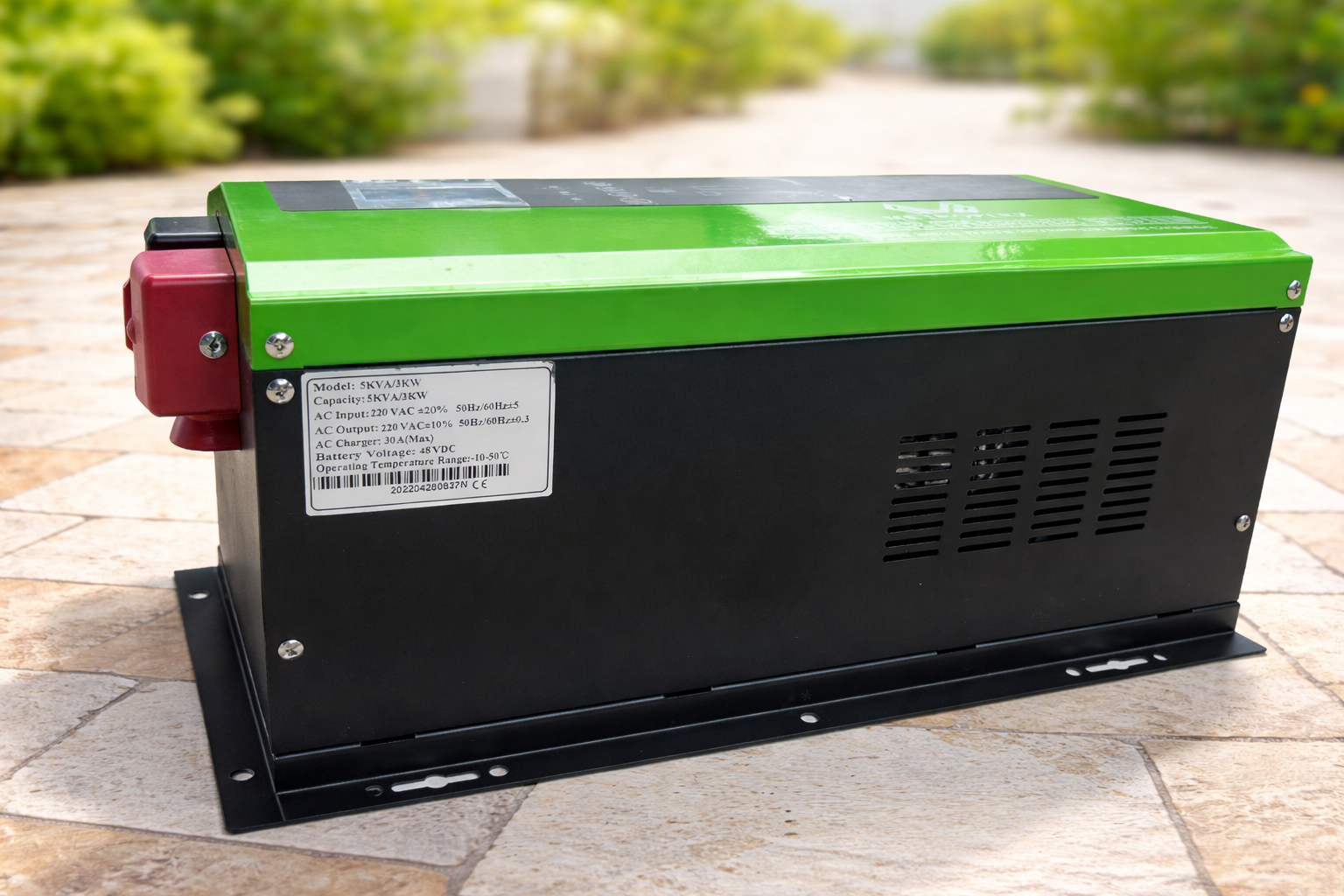

Description:

• Model: 5KVA
• Capacity: 5KVA
• AC Input: 220 VAC +-20% 50Hz/60Hz+-5
• AC Output: 220 VAC +-10% 50Hz/60Hz+-0.3
• AC Charger: 30A(Max)
• Battery Voltage: 48VDC
• Operating Temperature Range: -10-50°C

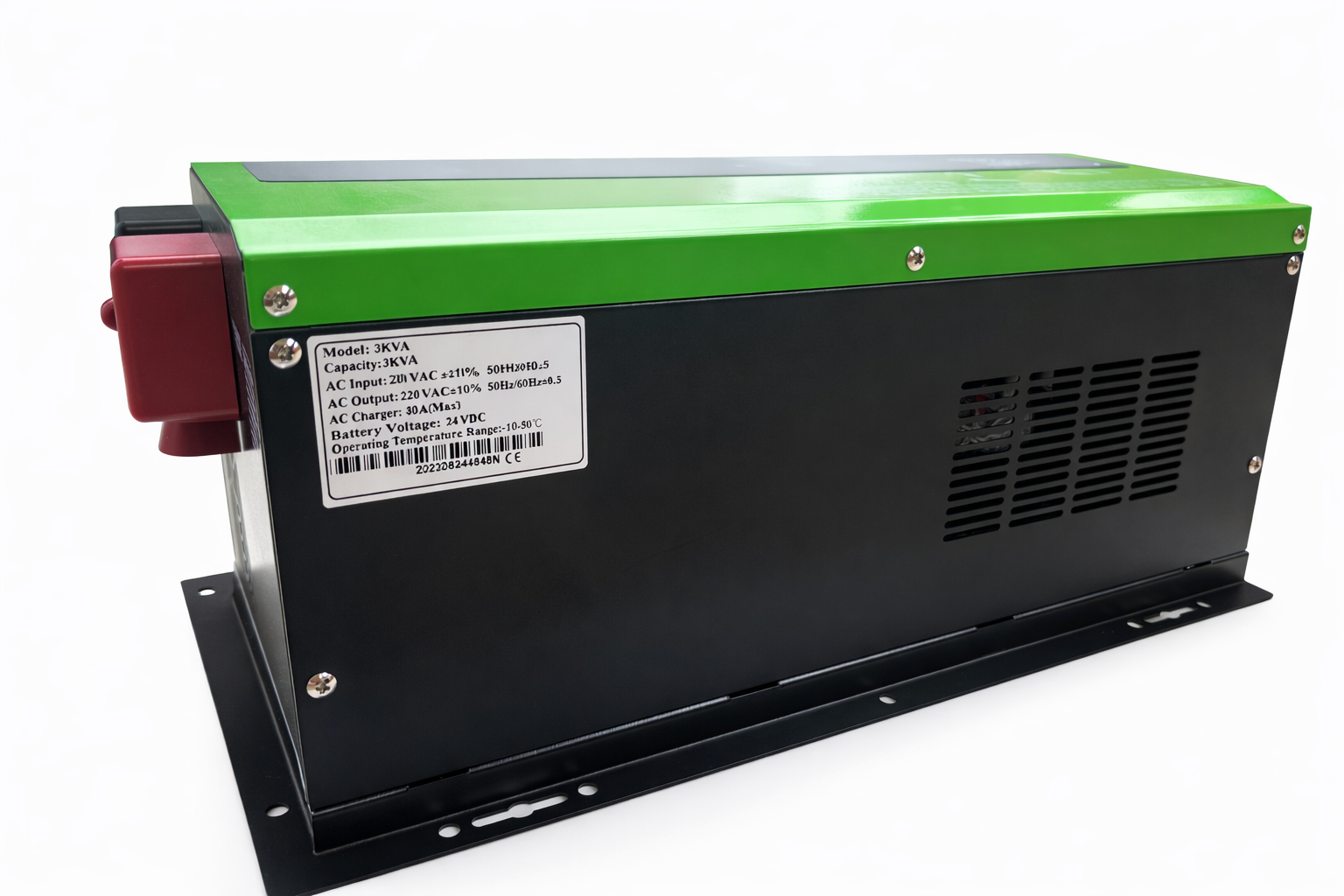

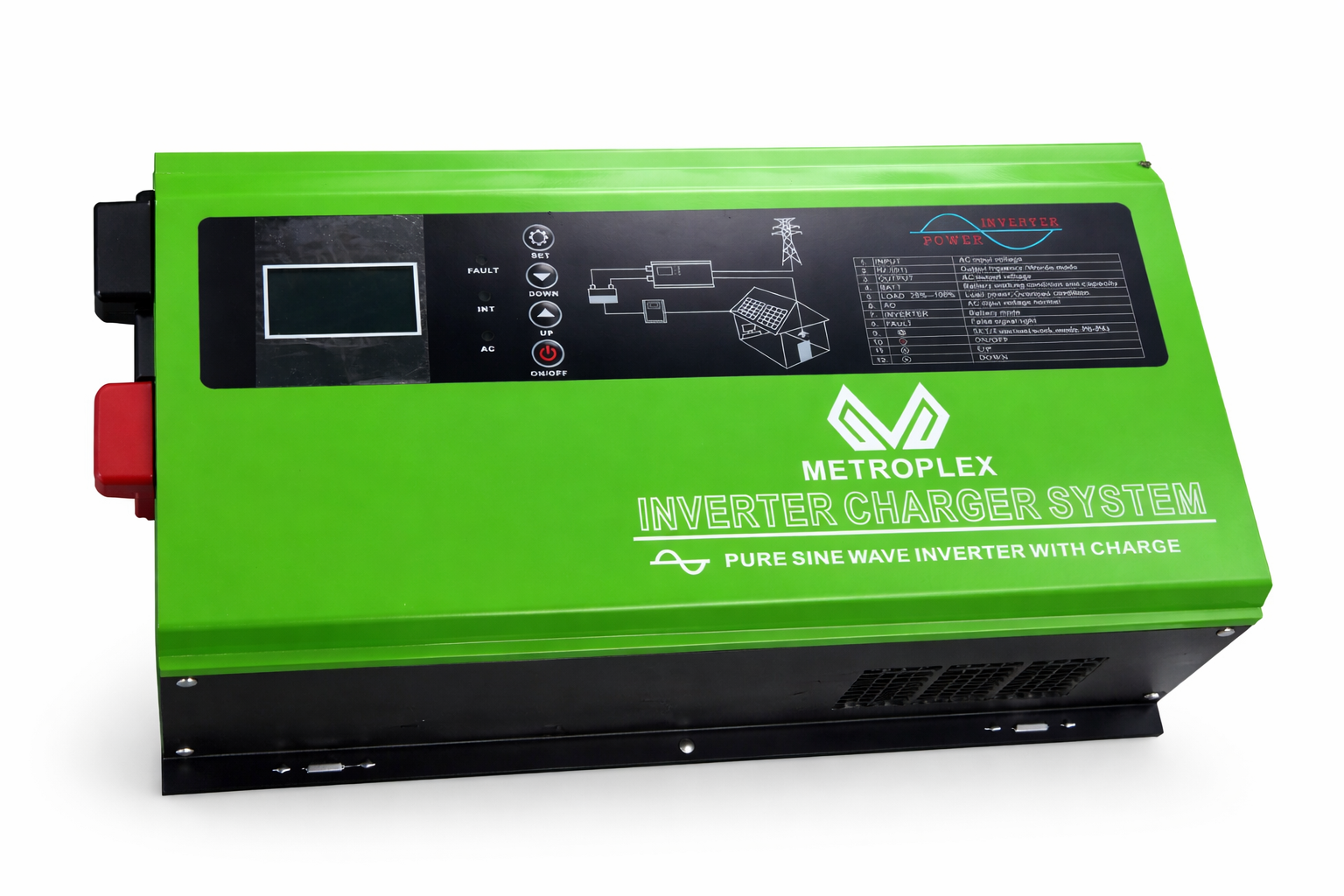

Description:

• Model: 3KVA/2KW
• Capacity: 3KVA/2KW
• AC Input: 220 VAC +-20% 50Hz/60Hz+-5
• AC Output: 220 VAC +-10% 50Hz/60Hz+-0.3
• AC Charger: 40A(Max)
• Battery Voltage: 24VDC
• Operating Temperature Range: -10-50°C

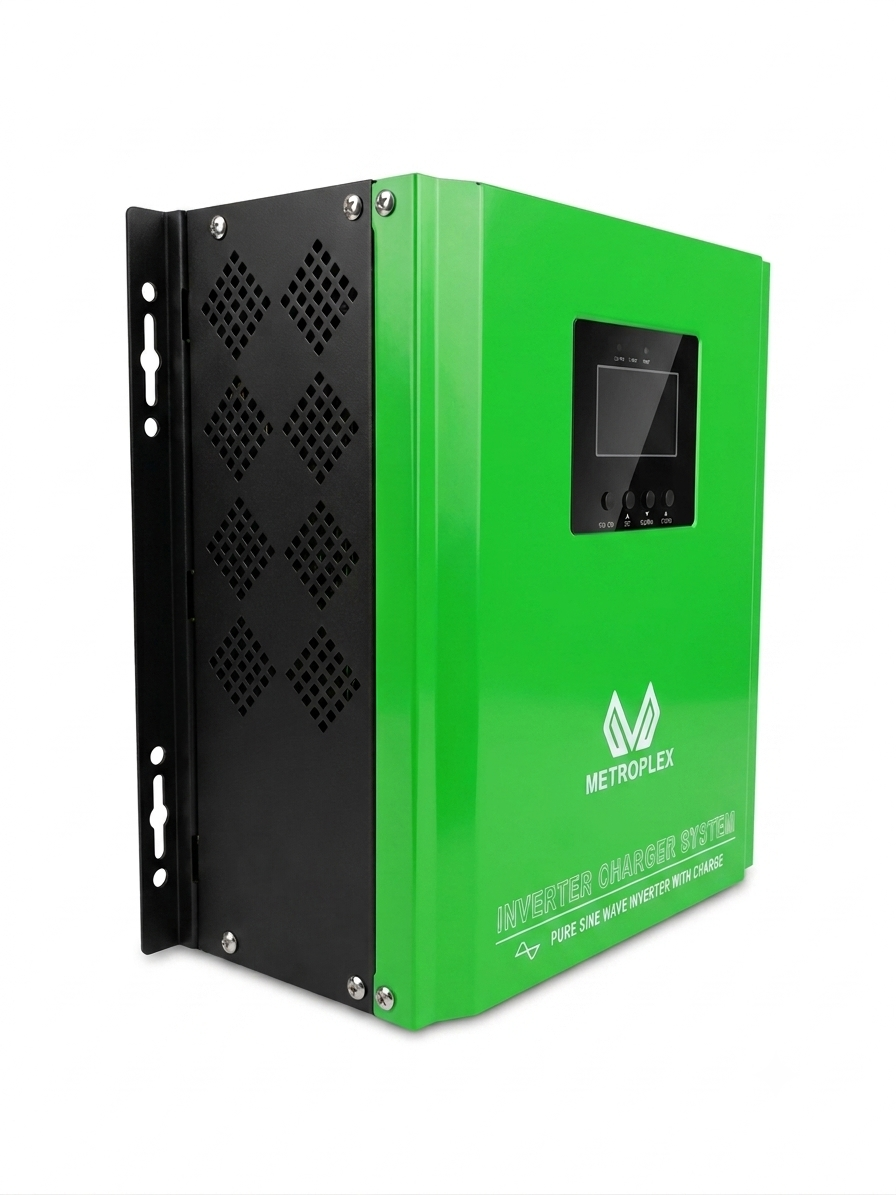

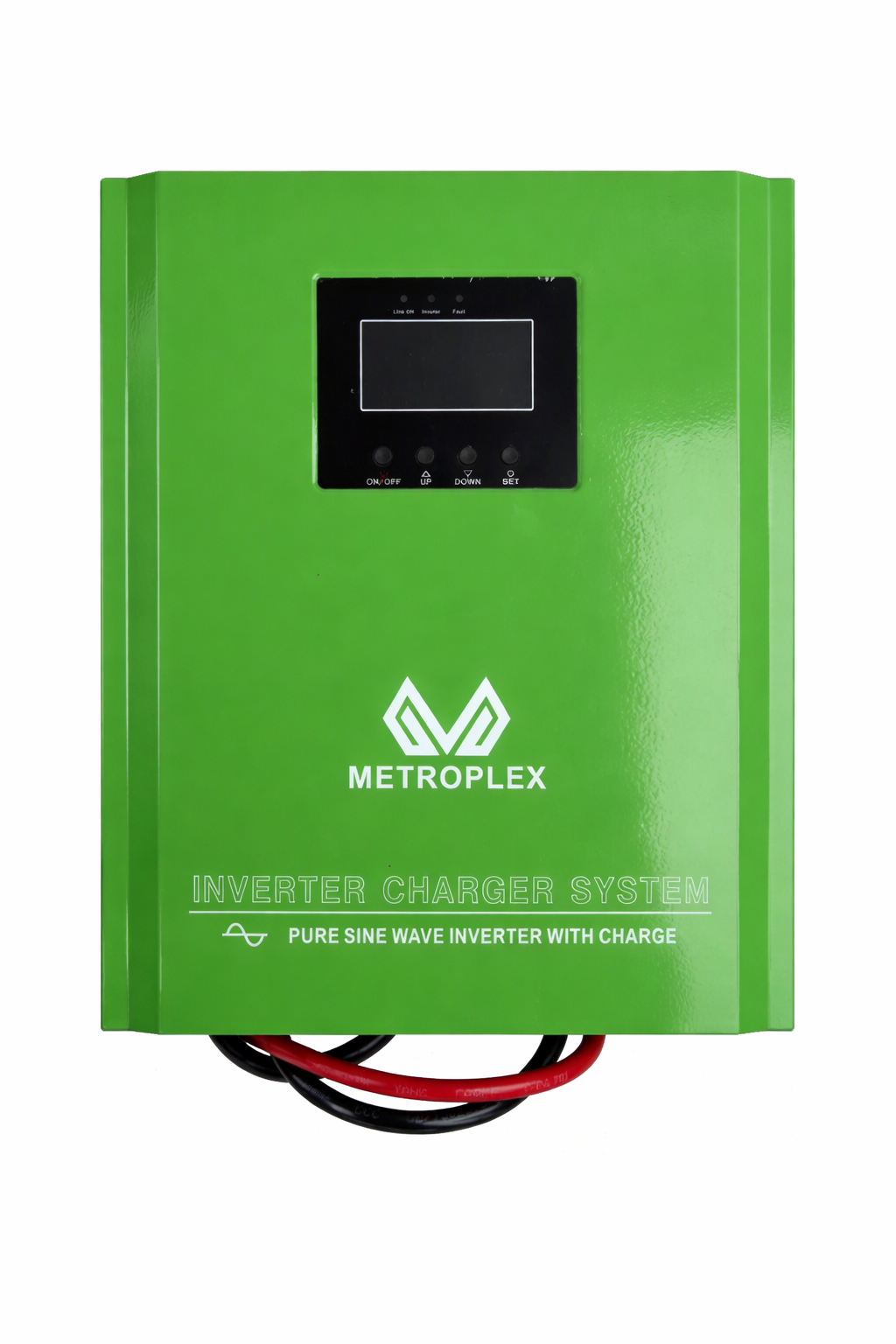

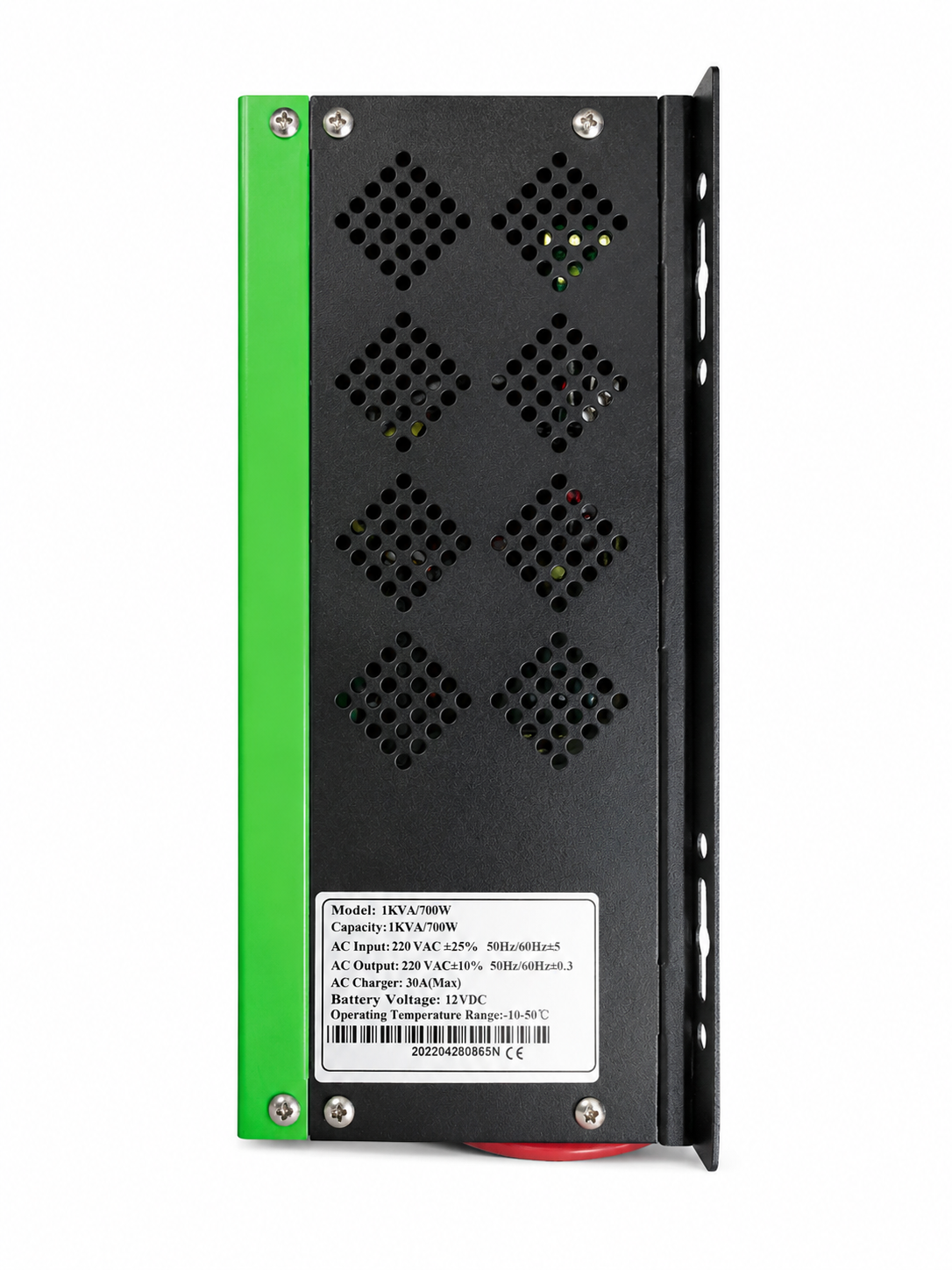

Description:

• Model: 1KVA/700KW
• Capacity: 1KVA/700KW
• AC Input: 220 VAC +-25%
• Frequency: 50Hz/60Hz+-5
• AC Output: 220 VAC +-10%
• AC Charger: 30A(Max)
• Battery Voltage: 12VDC
• Operating Temperature Range: -10-50°C

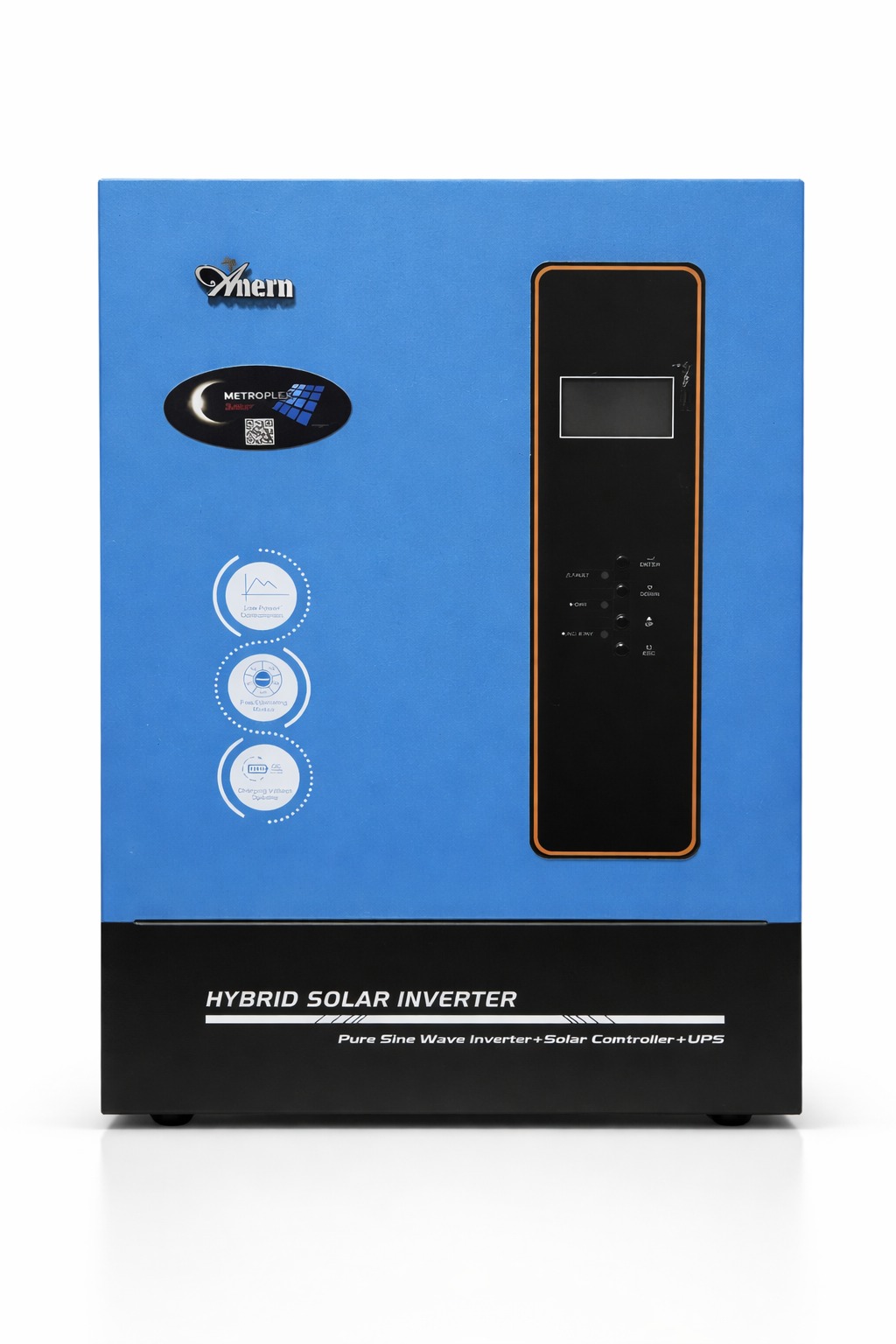

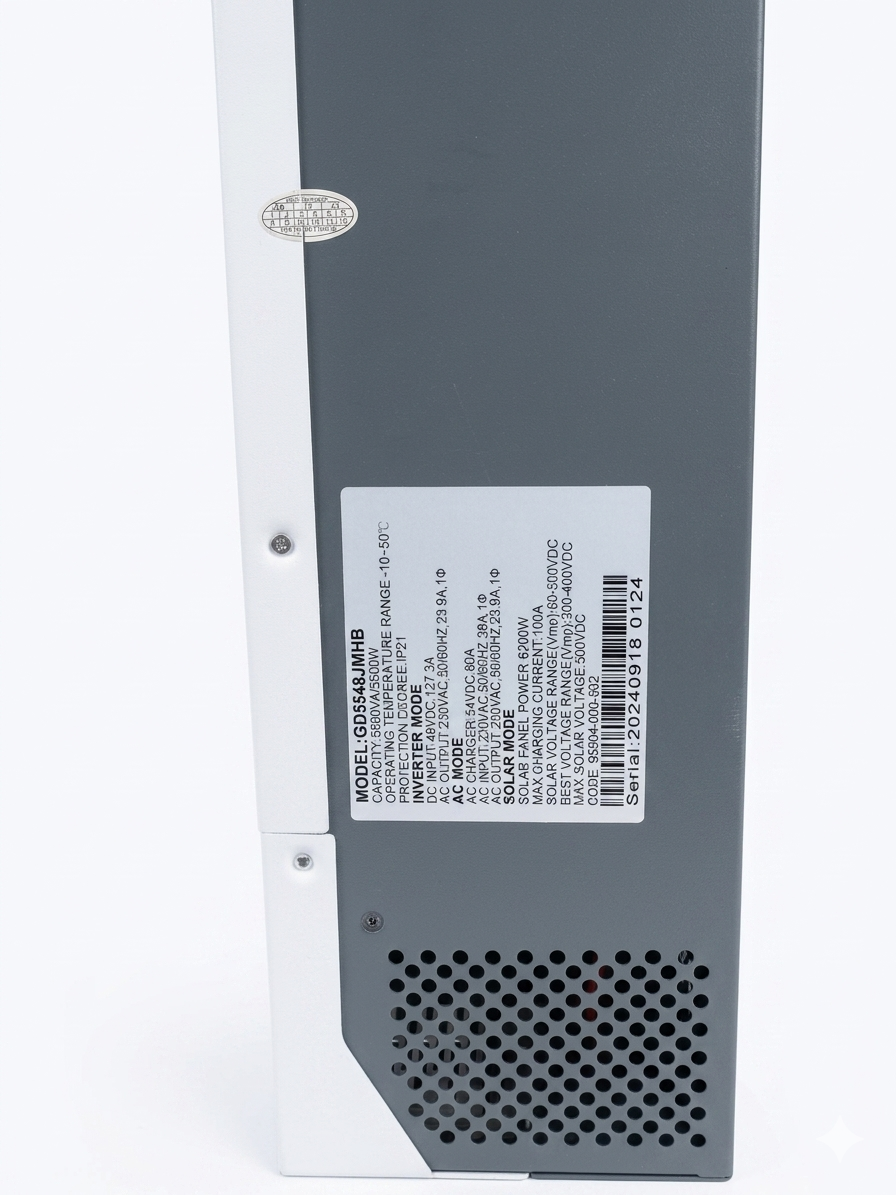

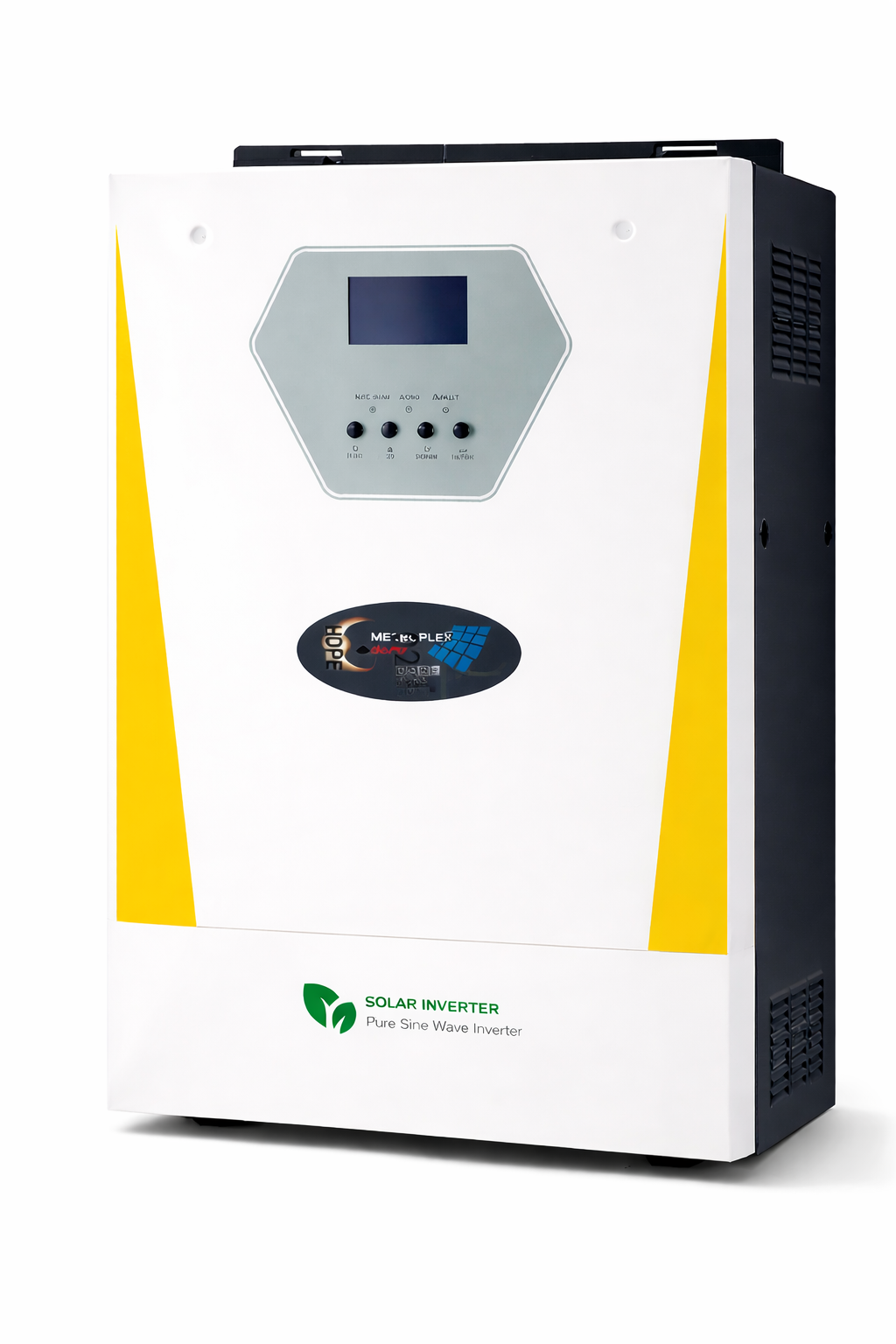

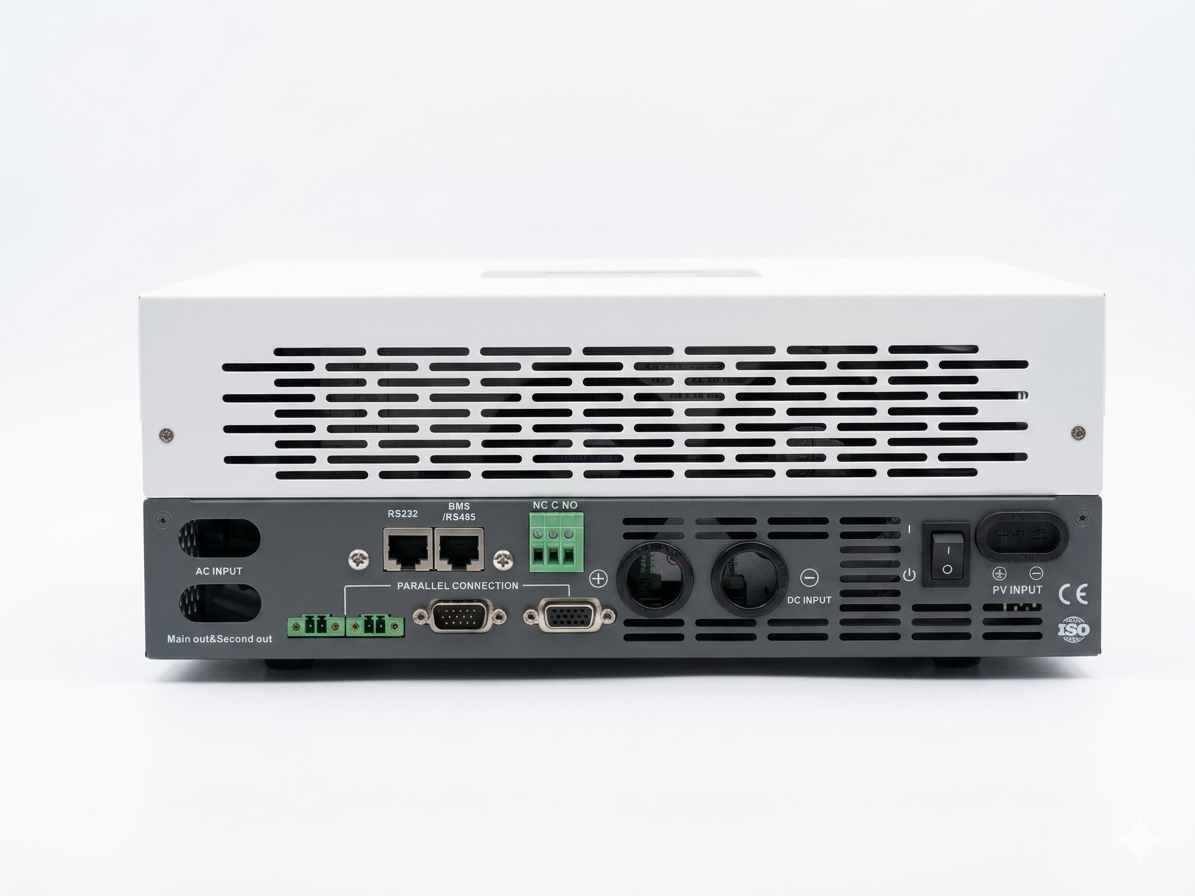

Description:

• 5.5kVA / 5.5kW pure sine wave inverter and charger
• 48V DC input system with 230V AC output (50/60Hz, single phase)
• Hybrid functionality (supports solar, grid, and battery integration)
• Maximum solar input power of 6200W
• Up to 100A solar charging current
• Wide solar voltage range: 60–500VDC (optimal 300–400VDC)
• Built-in 60A AC charger
• Operating temperature range: -10°C to +50°C
• IP21 protection rating for safety and durability
• Stable and clean power output suitable for sensitive electronics

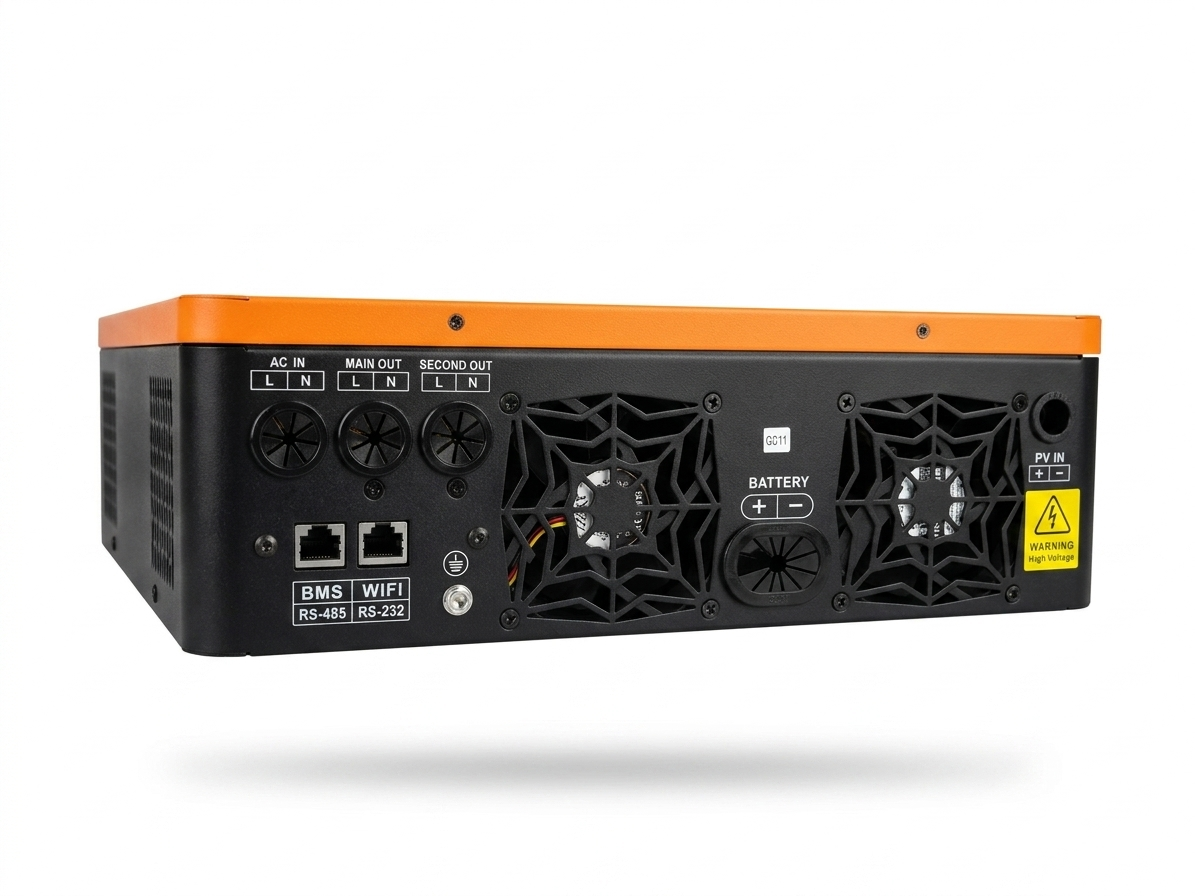

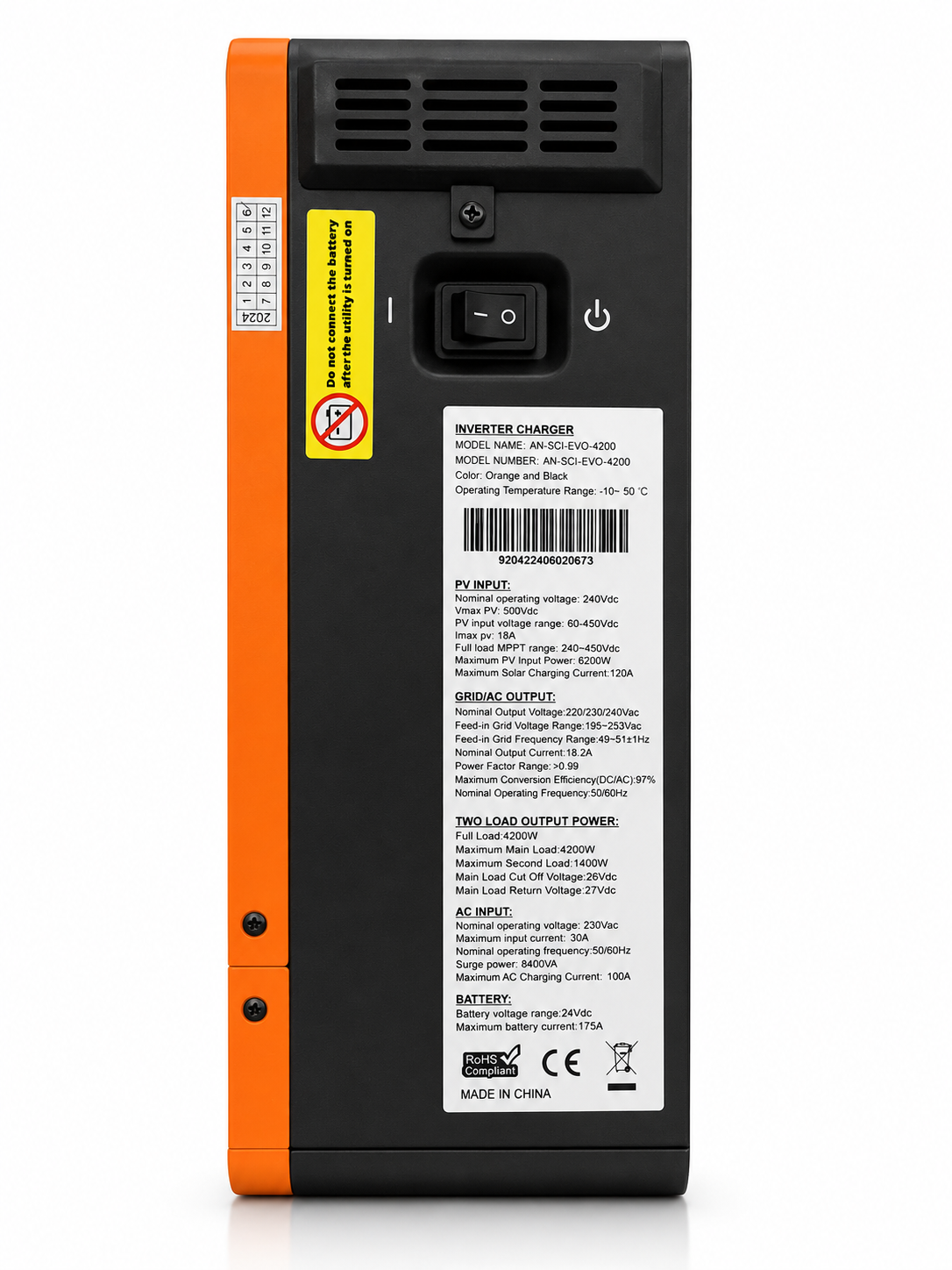

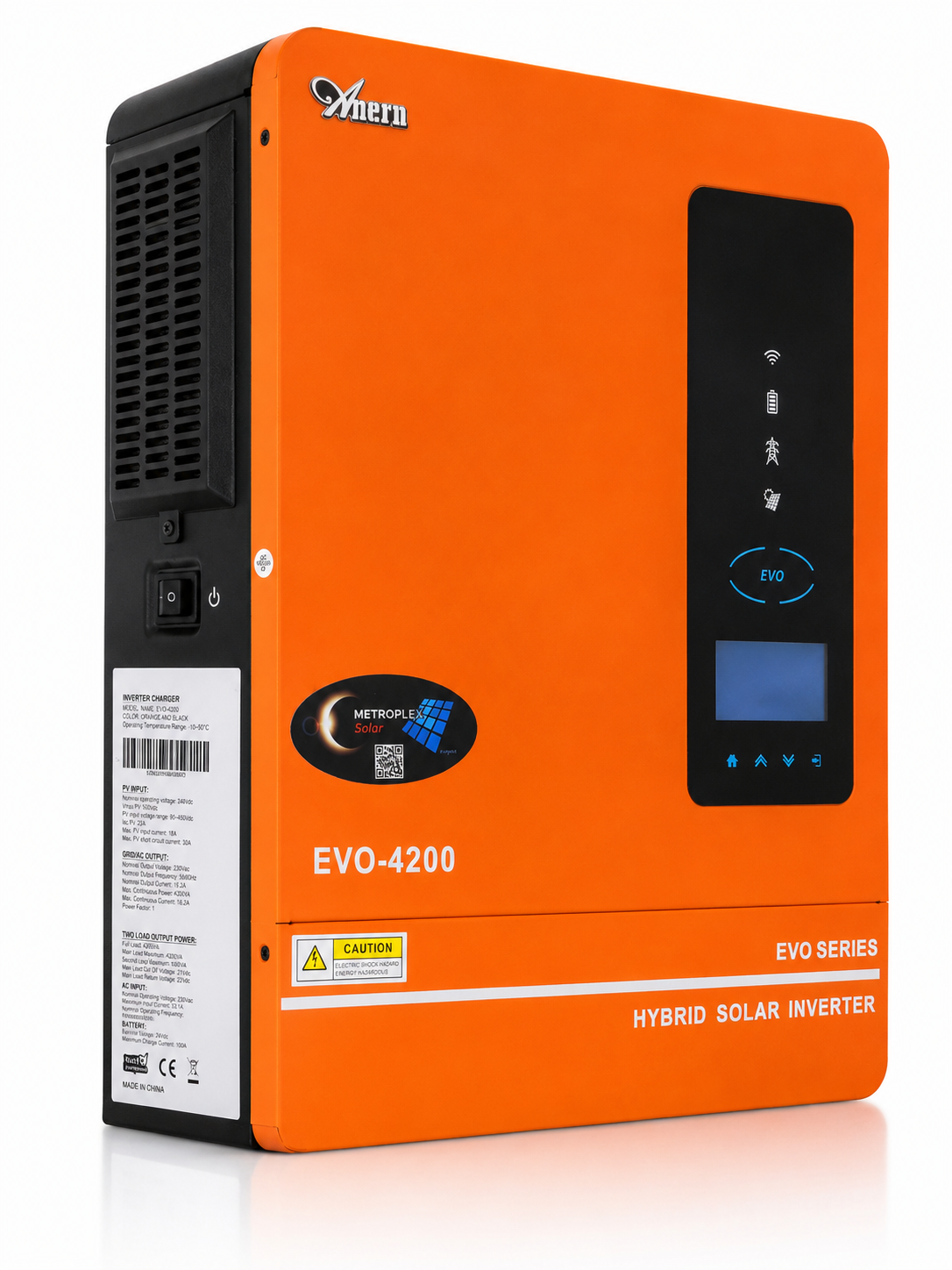

Description:

• Model: AN-SCI-EVO-4200
• Rated Power: 4200W
• PV Input Power: Up to 6200W
• Battery Voltage: 24VDC
• Maximum Charging Current: 120A
• AC Output Voltage: 220/230/240VAC
• Output Frequency: 50/60Hz
• Efficiency: Up to 97%
• PV Voltage Range: 60–450VDC (Max 500VDC)
• Maximum PV Current: 18A
• Operating Temperature: -10°C to 50°C
• Surge Power: 8400VA
• Power Factor: ?0.99

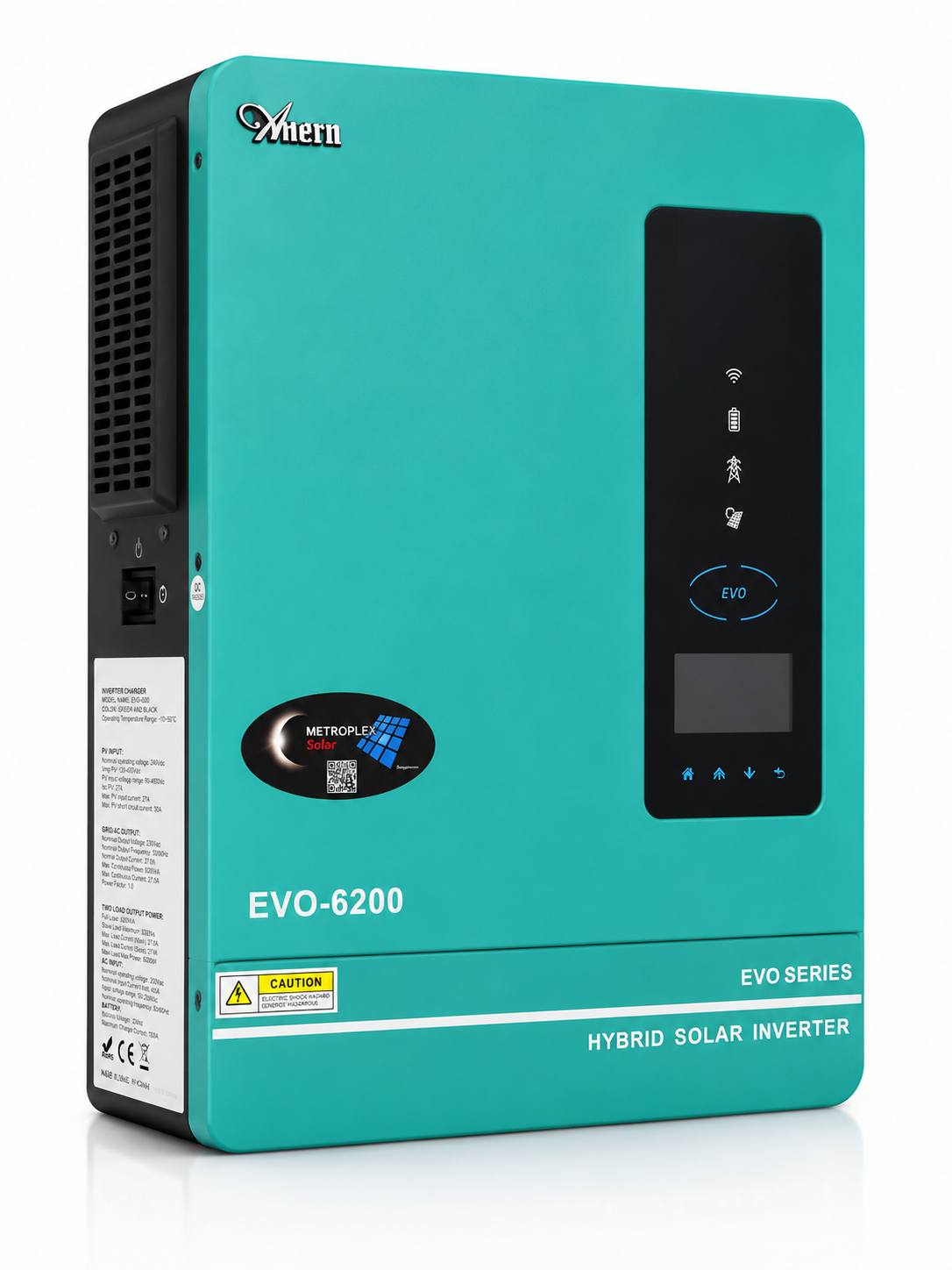

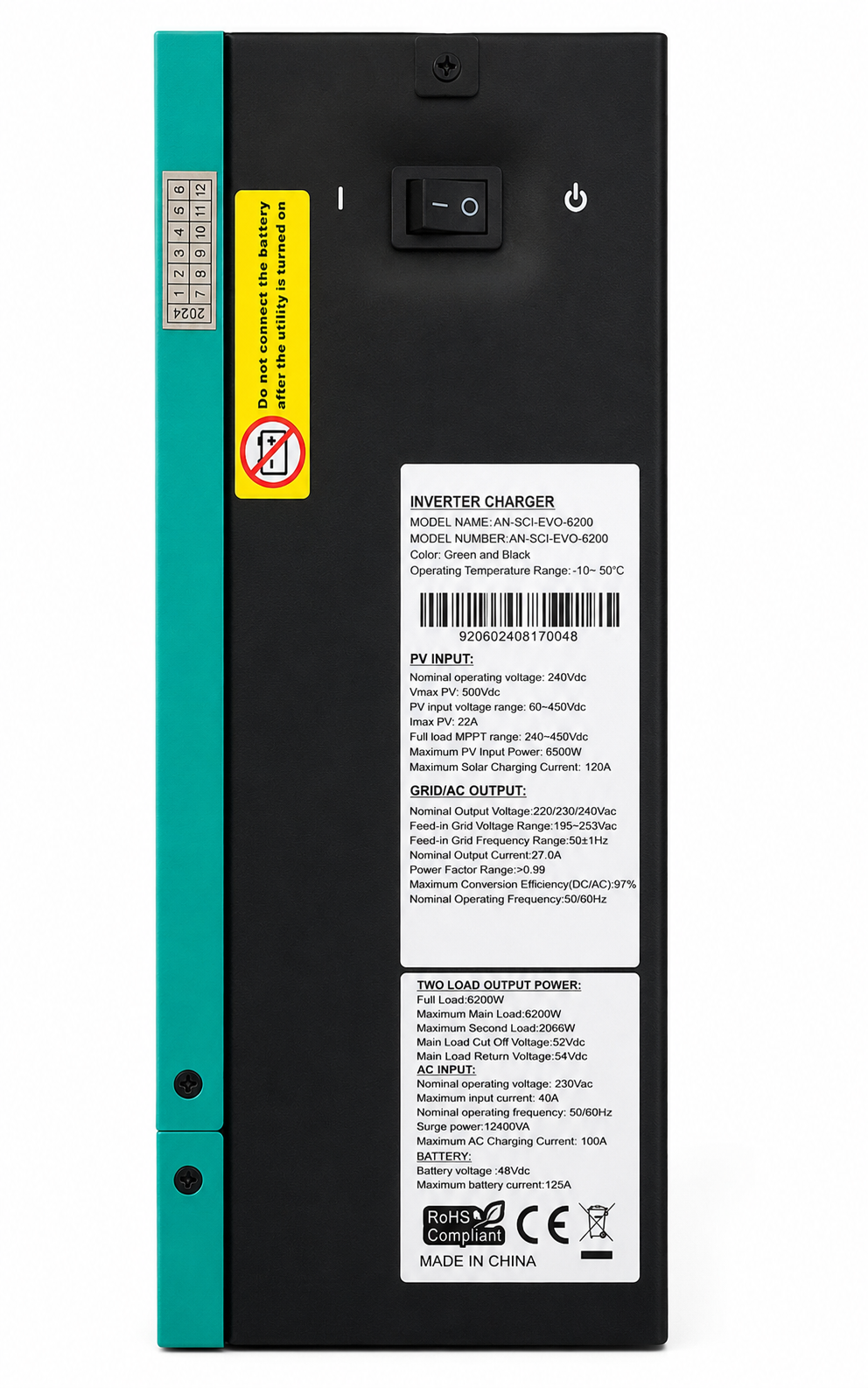

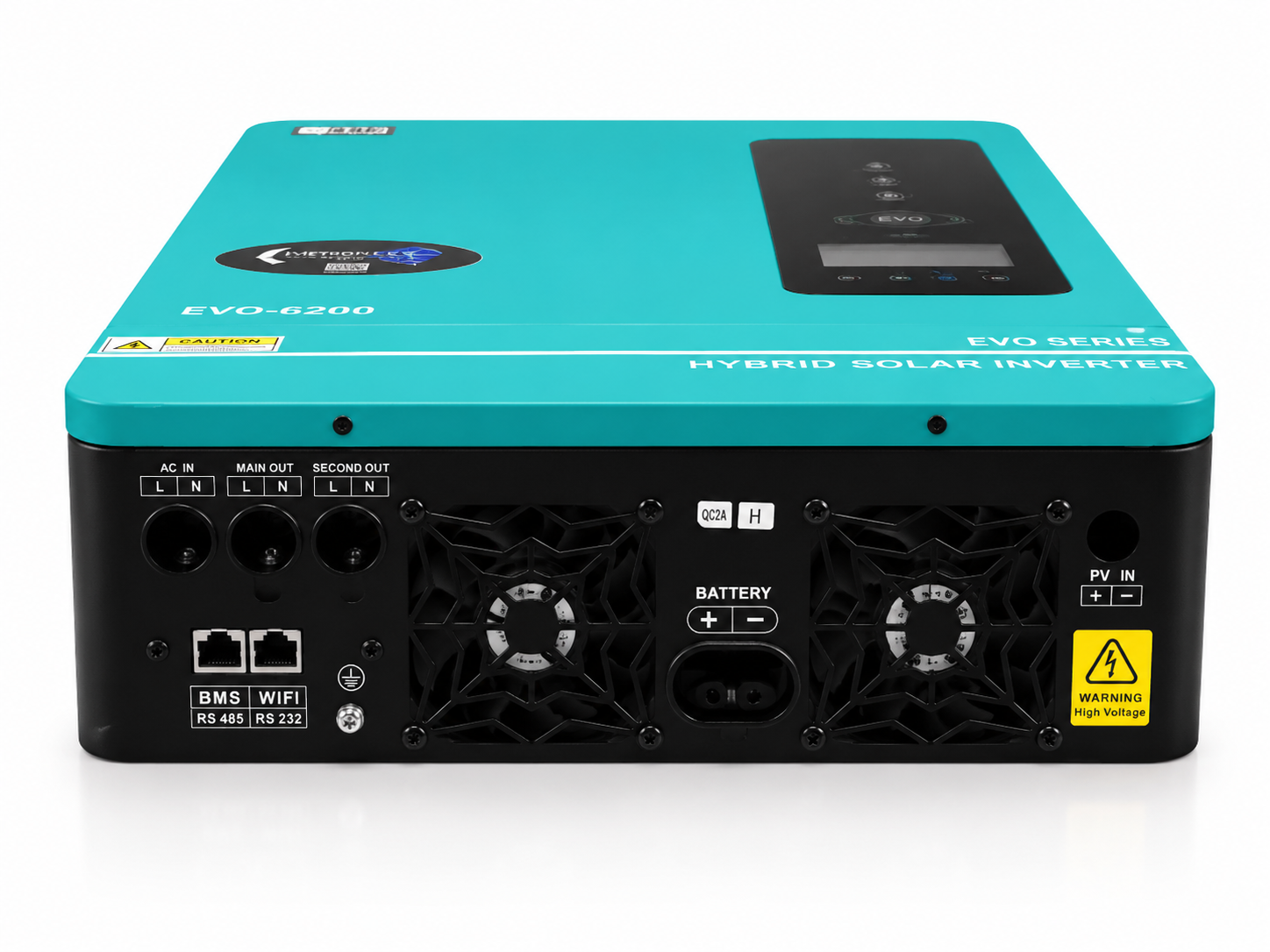

Description:

• Model: AN-SCI-EVO-6200
• Rated Power: 6200W
• Maximum PV Input Power: 6500W
• Max PV Open Circuit Voltage (V max): 500Vdc
• MPPT Voltage Range: 90V – 450Vdc
• Max Solar Charging Current: 120A
• Battery System Voltage: 48Vdc
• Max Battery Charging Current: 125A
• Max AC Charging Current: 100A
• AC Output Voltage: 220/230/240Vac
• Surge Power: 12400VA
• Max Efficiency: 97%
• Operating Temperature: -10°C to 50°C

Description:

• Model: AN-WSPI-5000
• Capacity: 6300VA / 5000W
• Battery System Voltage: 48VDC
• Solar Panel Power (Max): 6400W
• Solar Voltage Range: 60V – 150VDC
• Best Voltage Range: 60V – 105VDC
• Max Solar Voltage: 150VDC
• Max Charging Current: 120A
• AC Output: 220VAC, 50/60Hz, 22.7A
• Operating Temperature: -10°C to 50°C
• Protection Degree: IP21
